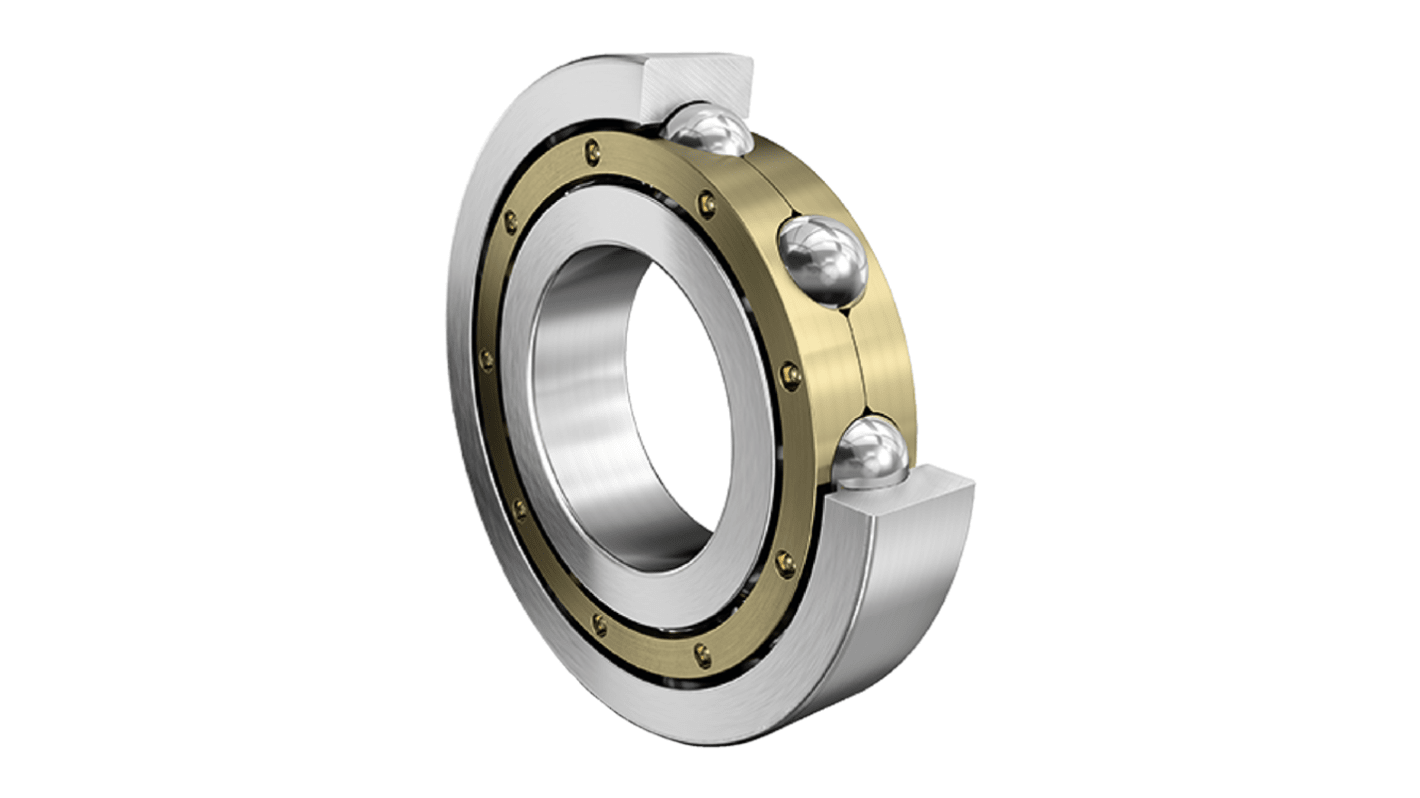

FAG 6019-M-C4 1 Row Deep Groove Ball Bearing - 95 mm ID, 145 mm OD
- RS Stock No.:
- 310-246
- Mfr. Part No.:
- 6019-M-C4
- Brand:
- FAG
Subtotal (1 unit)*
£242.60
(exc. VAT)
£291.12
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £242.60 |
*price indicative
- RS Stock No.:
- 310-246
- Mfr. Part No.:
- 6019-M-C4
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Deep Groove Ball Bearing | |
| Inside Diameter | 95 mm | |
| Outside Diameter | 145 mm | |
| Race Width | 24mm | |
| Cage Material | Brass | |
| End Type | Open | |
| Number of Rows | 1 | |
| Static Load Rating | 54000N | |
| Internal Clearance | C4 | |
| Dynamic Load Rating | 64000N | |
| Bore Type | Cylindrical | |
| Standards/Approvals | No | |
| Limiting Speed | 8200rpm | |
| Bearing Type | Deep Groove | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Deep Groove Ball Bearing | ||
Inside Diameter 95 mm | ||
Outside Diameter 145 mm | ||
Race Width 24mm | ||
Cage Material Brass | ||
End Type Open | ||
Number of Rows 1 | ||
Static Load Rating 54000N | ||
Internal Clearance C4 | ||
Dynamic Load Rating 64000N | ||
Bore Type Cylindrical | ||
Standards/Approvals No | ||
Limiting Speed 8200rpm | ||
Bearing Type Deep Groove | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
The FAG Deep Groove Ball Bearing is engineered for reliable performance in demanding conditions, ensuring optimal functionality across various applications. Designed with a solid brass cage and exceptional dimensional stability, this bearing accommodates larger internal clearances, enhancing its adaptability in complex systems. Its precision construction provides remarkable dynamic load ratings, making it a dependable solution for both radial and axial loads. Ideal for industries prioritising durability and precision, this bearing stands as a testament to innovation and engineering excellence, tailored to meet the needs of professional applications.
Extended operational temperature range enables versatile application
Higher internal clearance supports dynamic performance under load
Exceptional limiting speed enhances efficiency in performance critical settings
Precision engineered for stability and reliability in demanding environments
Compact design allows for easier installation and reduced space requirements
Quality construction ensures excellent performance across various applications
