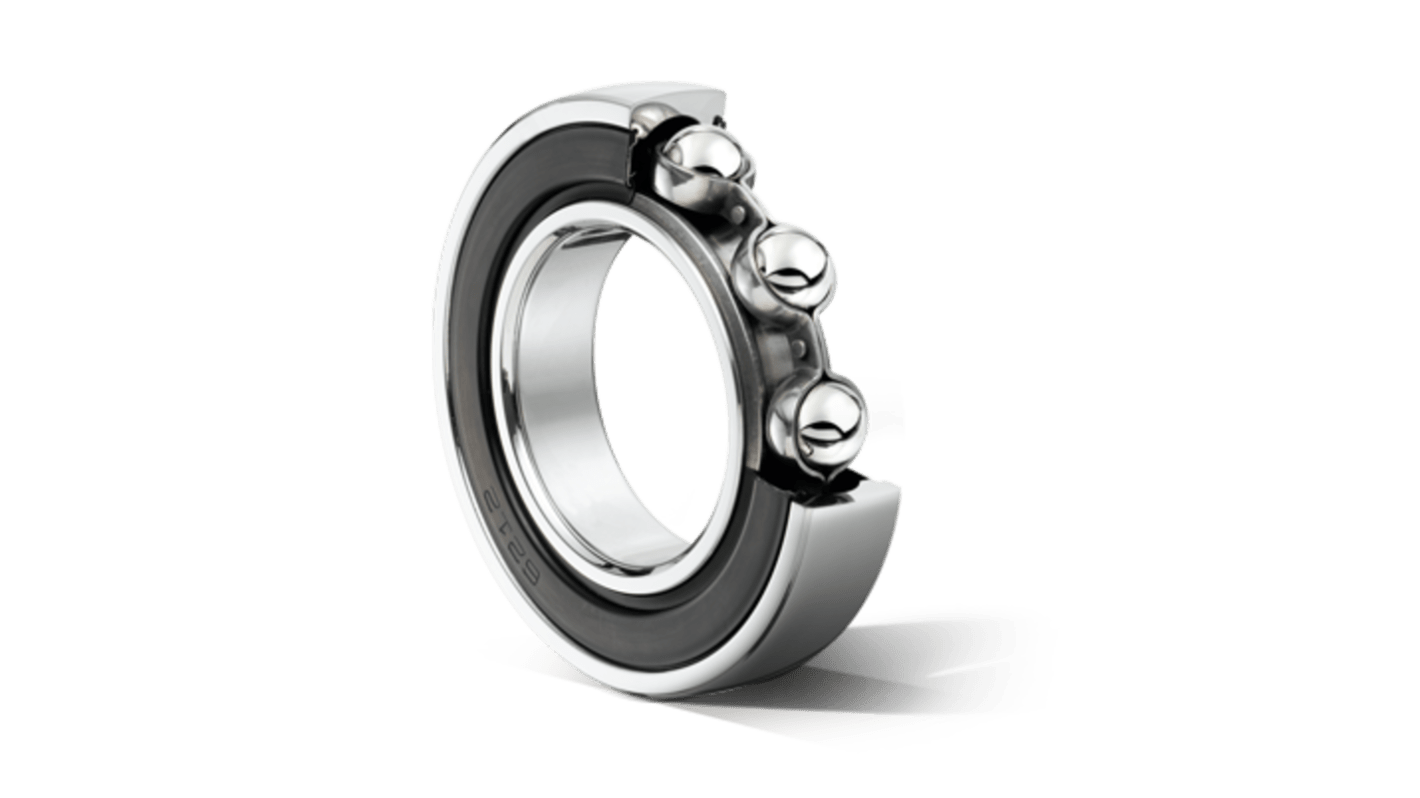

SNR 6002EEC3 Single Row Deep Groove Ball Bearing- Both Sides Sealed 15mm I.D, 32mm O.D
- RS Stock No.:
- 146-212
- Mfr. Part No.:
- 6002EEC3
- Brand:
- SNR
Subtotal (1 unit)*
£4.16
(exc. VAT)
£4.99
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 16 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £4.16 |
*price indicative
- RS Stock No.:
- 146-212
- Mfr. Part No.:
- 6002EEC3
- Brand:
- SNR
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SNR | |
Inside Diameter | 15mm | |
Outside Diameter | 32mm | |
Race Width | 9mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Select all | ||
---|---|---|
Brand SNR | ||
Inside Diameter 15mm | ||
Outside Diameter 32mm | ||
Race Width 9mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
- COO (Country of Origin):
- CN
The SNR Single Row Deep Groove Ball Bearings provide dependable performance, featuring a dynamic load rating of 5.9 kN and a static load rating of 2.85 kN. With a fatigue limit load of 0.13 kN and a coefficient of 13.9, they are designed for efficient operation under various loads. Capable of reaching a mechanical limit speed of 15,000 rpm, these bearings are ideal for high-speed applications.
3.588 Hz Characteristic outer ring frequency
5.412 Hz Characteristic inner ring frequency
0.399 Hz Characteristic cage frequency
4.731 Hz Characteristic rolling element frequency
5.412 Hz Characteristic inner ring frequency
0.399 Hz Characteristic cage frequency
4.731 Hz Characteristic rolling element frequency
