Subtotal (1 unit)*
£3.79
(exc. VAT)
£4.55
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 7 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £3.79 |
*price indicative
- RS Stock No.:
- 146-205
- Mfr. Part No.:
- 6001EE
- Brand:
- SNR
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SNR | |
| Inside Diameter | 12mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 28mm | |
| Race Width | 8mm | |
| Cage Material | Steel | |
| Static Load Rating | 2.39kN | |
| Internal Clearance | CN | |
| Dynamic Load Rating | 5.4kN | |
| Standards/Approvals | No | |
| Limiting Speed | 18000rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Select all | ||
|---|---|---|
Brand SNR | ||
Inside Diameter 12mm | ||
Product Type Ball Bearing | ||
Outside Diameter 28mm | ||
Race Width 8mm | ||
Cage Material Steel | ||
Static Load Rating 2.39kN | ||
Internal Clearance CN | ||
Dynamic Load Rating 5.4kN | ||
Standards/Approvals No | ||
Limiting Speed 18000rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
- COO (Country of Origin):
- CN

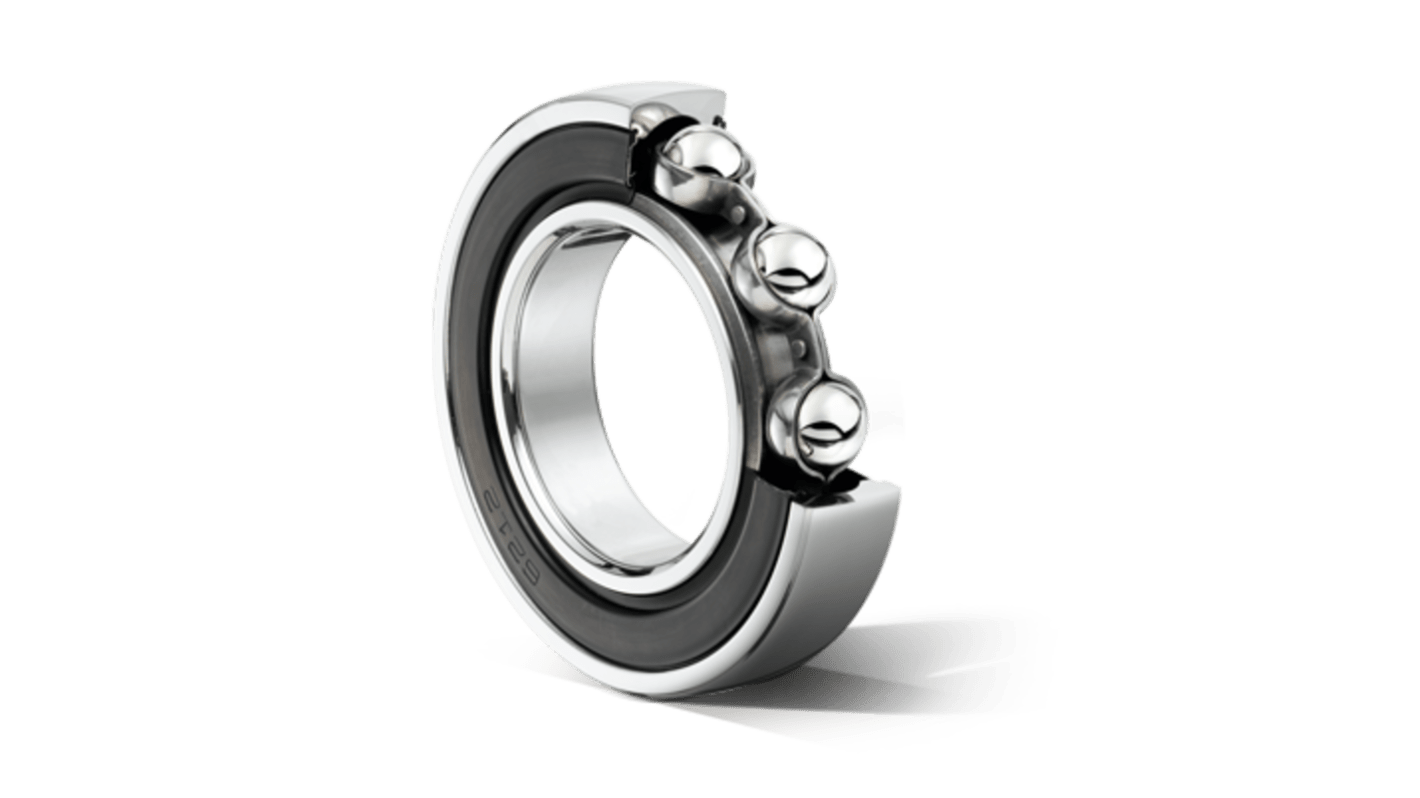

The SNR Single row deep groove ball bearing is the most popular bearing. This single row deep groove ball bearing exhibit strong performance, featuring a dynamic load rating of 5.4 kN and a static load rating of 2.39 kN. With a fatigue limit load of 0.11 kN and a coefficient of 13.2, they ensure efficient operation under varying loads. Capable of reaching a mechanical limit speed of 18,000 rpm.
3.071 Hz Characteristic outer ring frequency
4.929 Hz Characteristic inner ring frequency
0.384 Hz Characteristic cage frequency
4.072 Hz Characteristic rolling element frequency
