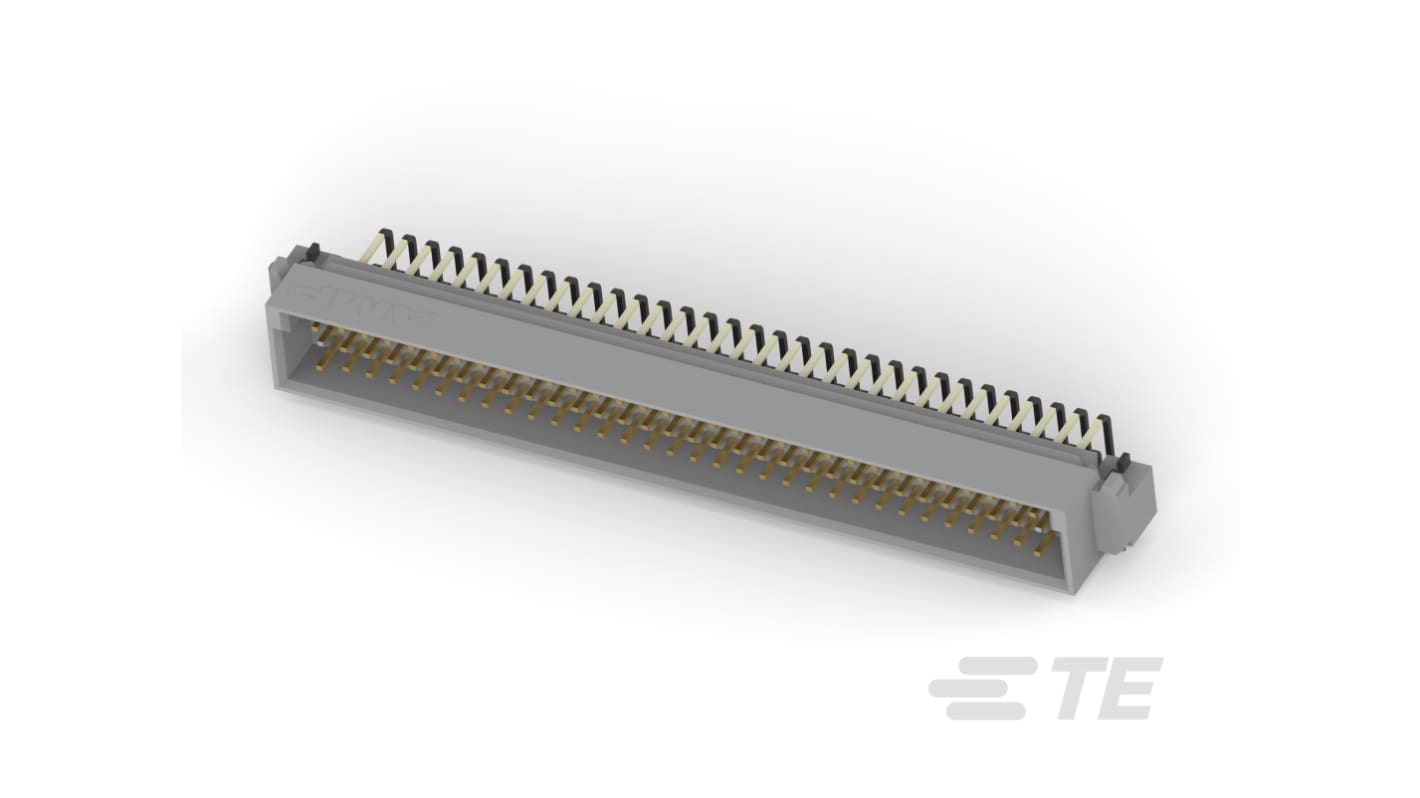

TE Connectivity, Eurocard 2.54 mm Pitch Connector Backplane Connector, Right Angle Male, 32 Column, 3 Row, 96 Way
- RS Stock No.:
- 506-005
- Mfr. Part No.:
- 536366-5
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 pack of 8 units)*
£159.424
(exc. VAT)
£191.312
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 30 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 8 - 32 | £19.928 | £159.42 |
| 40 + | £19.529 | £156.23 |
*price indicative
- RS Stock No.:
- 506-005
- Mfr. Part No.:
- 536366-5
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Backplane Connector Type | Connector | |
| Product Type | Backplane Connector | |
| Number of Contacts | 96 | |
| Current | 1.5A | |
| Orientation | Right Angle | |
| Number of Columns | 32 | |
| Number of Rows | 3 | |
| Connector Gender | Male | |
| Housing Material | Fibreglass Polyester | |
| Pitch | 2.54mm | |
| Contact Material | Brass | |
| Mount Type | Board | |
| Contact Plating | Gold | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | DIN Level II | |
| Series | Eurocard | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Backplane Connector Type Connector | ||
Product Type Backplane Connector | ||
Number of Contacts 96 | ||
Current 1.5A | ||
Orientation Right Angle | ||
Number of Columns 32 | ||
Number of Rows 3 | ||
Connector Gender Male | ||
Housing Material Fibreglass Polyester | ||
Pitch 2.54mm | ||
Contact Material Brass | ||
Mount Type Board | ||
Contact Plating Gold | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Contact Gender Male | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals DIN Level II | ||
Series Eurocard | ||
Non Compliant
- COO (Country of Origin):
- CN
The TE Connectivity Plug connector is expertly designed to facilitate seamless board-to-board connections in compact electronic applications. With a robust construction and a user-friendly right-angle orientation, this connector supports optimal PCB layout efficiency while ensuring reliable performance. Its 96-position layout, coupled with a consistent 2.54 mm centreline, makes it ideal for high-density configurations. Built with durability in mind, this connector accommodates a broad operating temperature range, making it suitable for various environmental conditions. Precision-engineered contacts ensure excellent mating characteristics, enhancing the overall integrity of the connection.
Supports a temperature range that ensures operational reliability
Precision contacts promote optimal connection integrity
Constructed with robust materials for enhanced durability
Features three rows and a total of 96 positions for versatile connectivity
PCB mount retention provides added stability during operation
Compatible with various PCB thicknesses for flexible design options
