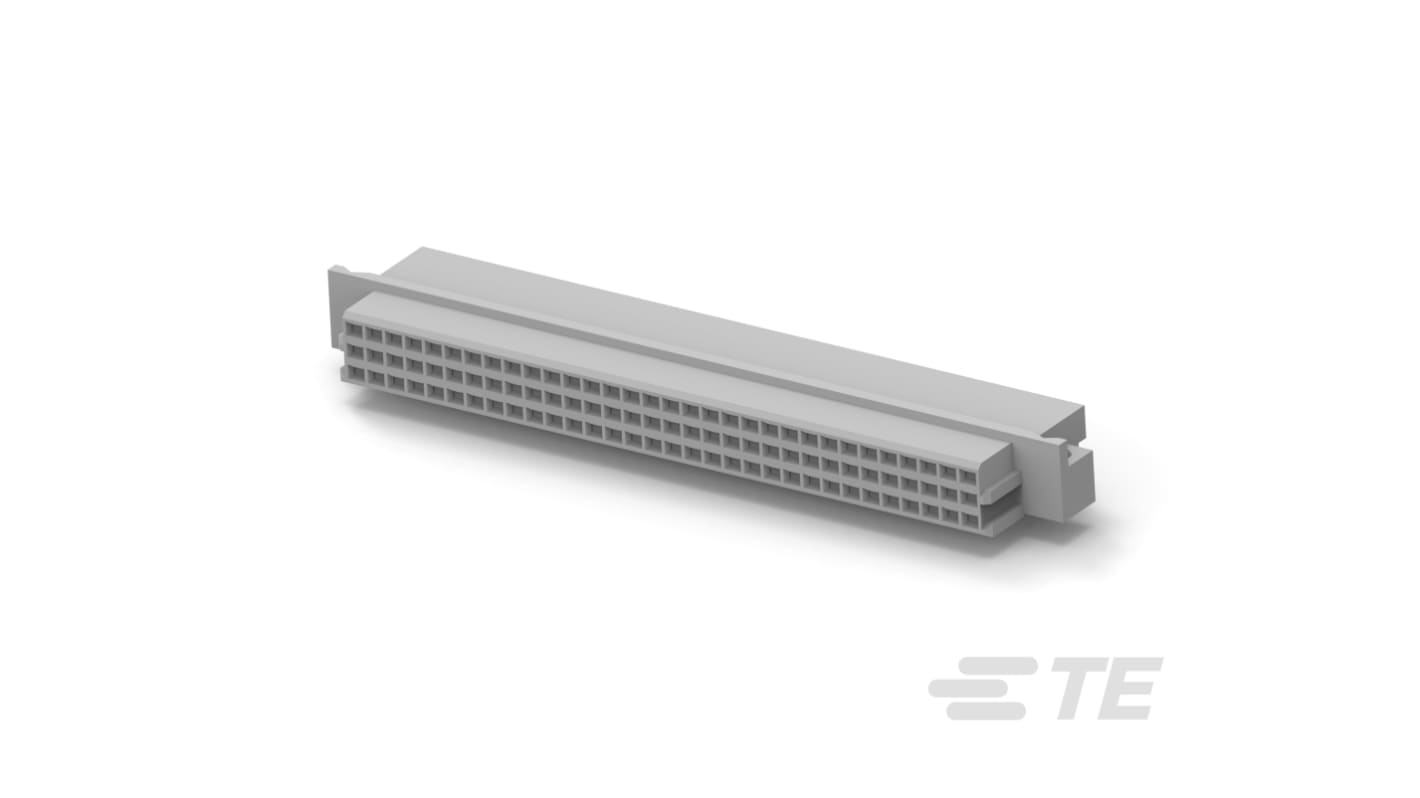

TE Connectivity, 148292-5 2.54 mm Pitch Connector Backplane Connector, Right Angle Female, 16 Column, 3 Row, 96 Way

View all Backplane Connectors

Subtotal (1 box of 40 units)*

£170.13

(exc. VAT)

£204.16

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 01 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es)
Per Box
Per unit*
1 +£170.13£4.253

*price indicative

RS Stock No.:
475-222
Distrelec Article No.:
304-50-207
Mfr. Part No.:
148292-5
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Backplane Connector Type

Connector

Product Type

Backplane Connector

Number of Contacts

96

Current

3A

Number of Columns

16

Orientation

Right Angle

Connector Gender

Female

Number of Rows

3

Housing Material

Fibreglass Polyester

Pitch

2.54mm

Contact Material

Phosphor Bronze

Mount Type

Board

Contact Plating

Tin Lead

Termination Type

Solder

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

105°C

Contact Gender

Female

Standards/Approvals

UL 94 V-0

Series

148292-5

COO (Country of Origin):
CN
The TE Connectivity receptacle is designed for board-to-board applications, featuring a robust 96-position arrangement with a 2.54 mm centreline, perfect for reliable connections in complex electronic setups. The right-angle configuration facilitates space-saving integration on printed circuit boards, ensuring seamless assembly and functionality. Crafted with precision in mind, this connector is constructed from durable materials, featuring a grey housing and tin-lead plating for enhanced conductivity and longevity. The part is engineered to endure challenging environments, making it ideal for a variety of industrial and commercial applications that demand a versatile and dependable solution. In summary, this connector embodies both performance and durability, ensuring smooth operation in demanding scenarios and contributing significantly to the reliability of electronic systems.

Board-to-board connection ensures a secure fit between PCBs

Three-row design optimises space while accommodating numerous connections

Right-angle configuration allows for unrestricted circuit board design

Constructed from high-quality materials to ensure long-lasting performance

Mating retention feature enhances connectivity stability during operation

Action/compliant tail ensures reliable PCB mounting and retention

Operating temperature range accommodates diverse environmental conditions

UL flammability rating ensures compliance with safety standards
