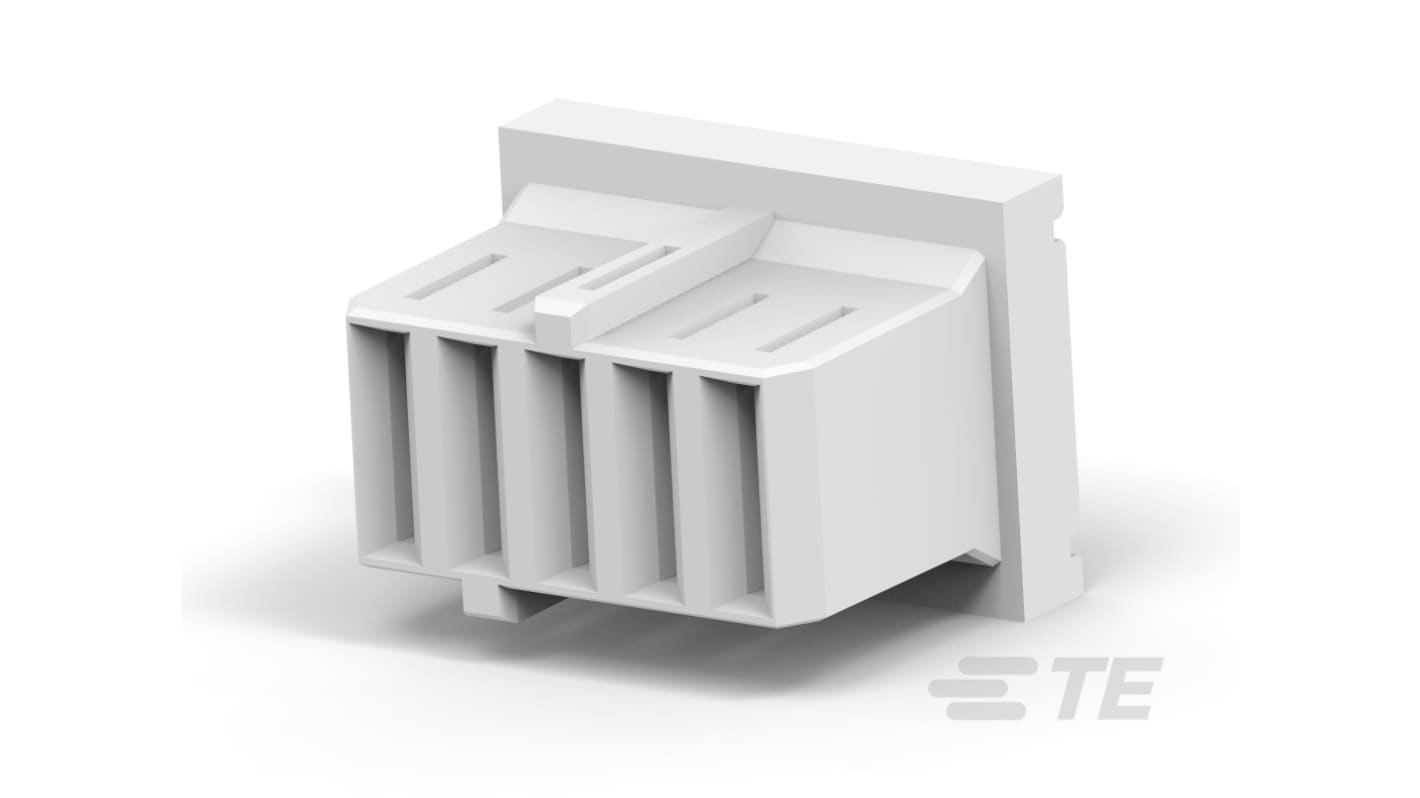

TE Connectivity, 1982257-5 3 mm Pitch Connector Backplane Connector, Vertical Female, 5 Column, 5 Way

View all Backplane Connectors

Subtotal (1 tray of 15 units)*

£183.37

(exc. VAT)

£220.04

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s)
Per Tray
Per unit*
1 +£183.37£12.225

*price indicative

RS Stock No.:
469-959
Distrelec Article No.:
304-48-711
Mfr. Part No.:
1982257-5
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Product Type

Backplane Connector

Backplane Connector Type

Connector

Number of Contacts

5

Orientation

Vertical

Number of Columns

5

Connector Gender

Female

Pitch

3mm

Mount Type

Board

Contact Plating

Gold

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

105°C

Contact Gender

Female

Standards/Approvals

EU ELV Directive 2000/53/EC Compliant, China RoHS 2 Directive MIIT Order No 32, EU REACH Regulation (EC) No. 1907/2006, EU RoHS Directive 2011/65/EU Compliant, 2016 No Restricted Materials Above Threshold

Series

1982257-5

COO (Country of Origin):
IN
The TE Connectivity Z-PACK Slim UHD, Hard Metric Backplane Connector is meticulously engineered for high-performance PCB applications. Designed to facilitate seamless board-to-board connectivity, this connector ensures reliable signal integrity and mechanical stability. Its traditional backplane architecture allows for efficient mass interconnection, making it ideal for complex electronic systems. With a PCB mount receptacle assembly type, it provides an optimal fit for vertical mounting orientations, allowing for streamlined integration into your design. The compact configuration features five columns and five positions, ensuring effective use of space without compromising functionality. Built to withstand extreme operating temperatures, this connector demonstrates exceptional durability and compliance with stringent industry standards.

Facilitates efficient board-to-board connectivity for enhanced signal integrity

Supports high-density layouts with its compact five-column design

Utilises a traditional backplane architecture tailored for mass interconnections

Complies with various industry standards, ensuring reliability and performance

Constructed with gold-plated contacts for superior mating area longevity

Resistant to extreme temperature ranges, ensuring consistent performance in challenging conditions

Low halogen materials promote environmental responsibility and compliance

Compatible with a range of TE’s Z-PACK Slim UHD connector series for versatile applications
