Phoenix Contact Sleeve Housings for use with VARIOCON

Panasonic ELL6RH power inductors are compact, highly reliable and feature a large current capability. By separating the internal connection and the user terminal, these fixed inductors ensure high reliability when mounted.

When using in a DC-DC converter, ELL6RH inductors have a maximum dissipation of 1 W and a maximum case temperature of +105°C
Low profile with a height of 2.8 mm maximum

Recommended applications include small portable devices, audiovisual equipment and DC-DC converter circuits for amusement machines. They are also suitable for use in DC-DC converters as a decoupling choke coil.

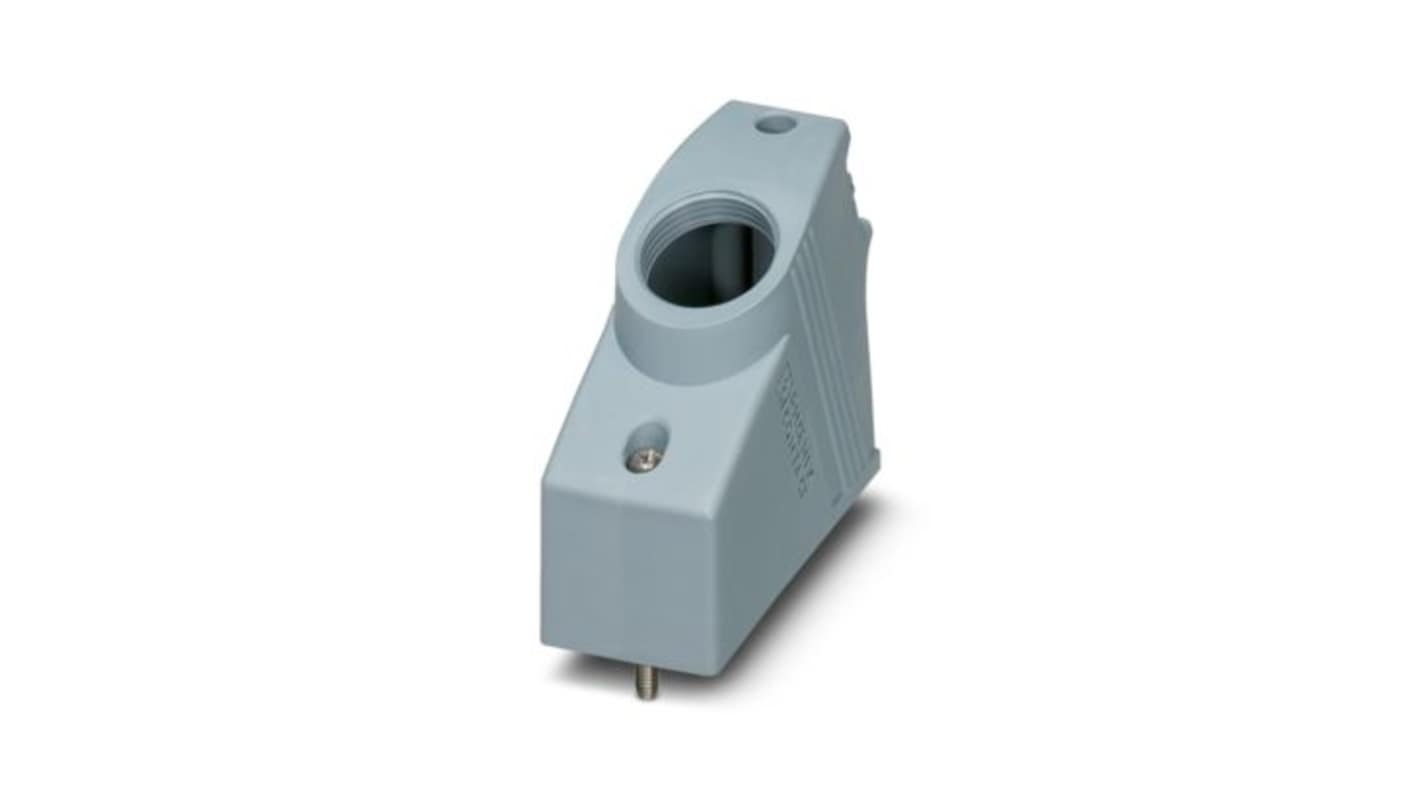

The Phoenix Contact Sleeve housing is engineered to provide exceptional durability and optimal performance in electrical device engineering. Designed with versatility in mind, it accommodates a variety of applications while ensuring reliable connectivity and robust protection against environmental factors. The product features a M25 screw connection and a compact design that enhances space efficiency. Crafted from high-quality polyamide, the Sleeve housing is not only resilient against everyday wear but is also rated for IP67 and IP65 degrees of protection, making it suitable for harsh operating conditions. Whether used in plant engineering or as part of customised solutions, this product assures easy installation and operational integrity, catering to the needs of professionals in various industries.

Lightweight design reduces overall system weight without sacrificing strength
Provides mechanical resilience ideal for diverse environmental conditions
Compatible with recommended tools for streamlined installation
Feature-rich design for enhanced safety during usage

Panasonic Non Standard SMT Inductors (Chokes)
