Belden 1800F Series 2 Core Screened, 5.33 mm OD, 152 m, Black
- RS Stock No.:
- 162-3163
- Mfr. Part No.:
- 1800F B59500
- Brand:
- Belden
Subtotal (1 reel of 152 metres)*
£640.56
(exc. VAT)
£768.67
(inc. VAT)
Stock information currently inaccessible - Please check back later
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £640.56 | £4.214 |
*price indicative
- RS Stock No.:
- 162-3163
- Mfr. Part No.:
- 1800F B59500
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Product Type | Audio Cable | |
| Number of Cores | 2 | |
| Screened/Unscreened | Screened | |
| Outside Diameter | 5.33mm | |
| Cable Length | 152m | |
| Fire Behaviour | Flame Retardant | |
| Conductor Type | Stranded | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 60°C | |
| Jacket Colour | Black | |
| Standards/Approvals | CA Prop 65, EU CE Mark, EU Directive 2000/53/EC (ELV), EU Directive 2003/11/EC (BFR), EU Directive 2003/96/EC (BFR), EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE), EU Directive 2015/863/EU, MII Order 39 | |
| Voltage | 300V ac | |
| Jacket Material | Polyethylene | |
| Series | 1800F | |
| Conductor Material | Bare Copper | |
| Number of Strands | 42 | |
| Core Strands | 42 | |
| Select all | ||
|---|---|---|
Brand Belden | ||
Product Type Audio Cable | ||
Number of Cores 2 | ||
Screened/Unscreened Screened | ||
Outside Diameter 5.33mm | ||
Cable Length 152m | ||
Fire Behaviour Flame Retardant | ||
Conductor Type Stranded | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 60°C | ||
Jacket Colour Black | ||
Standards/Approvals CA Prop 65, EU CE Mark, EU Directive 2000/53/EC (ELV), EU Directive 2003/11/EC (BFR), EU Directive 2003/96/EC (BFR), EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE), EU Directive 2015/863/EU, MII Order 39 | ||
Voltage 300V ac | ||
Jacket Material Polyethylene | ||
Series 1800F | ||
Conductor Material Bare Copper | ||
Number of Strands 42 | ||
Core Strands 42 | ||
- COO (Country of Origin):
- US

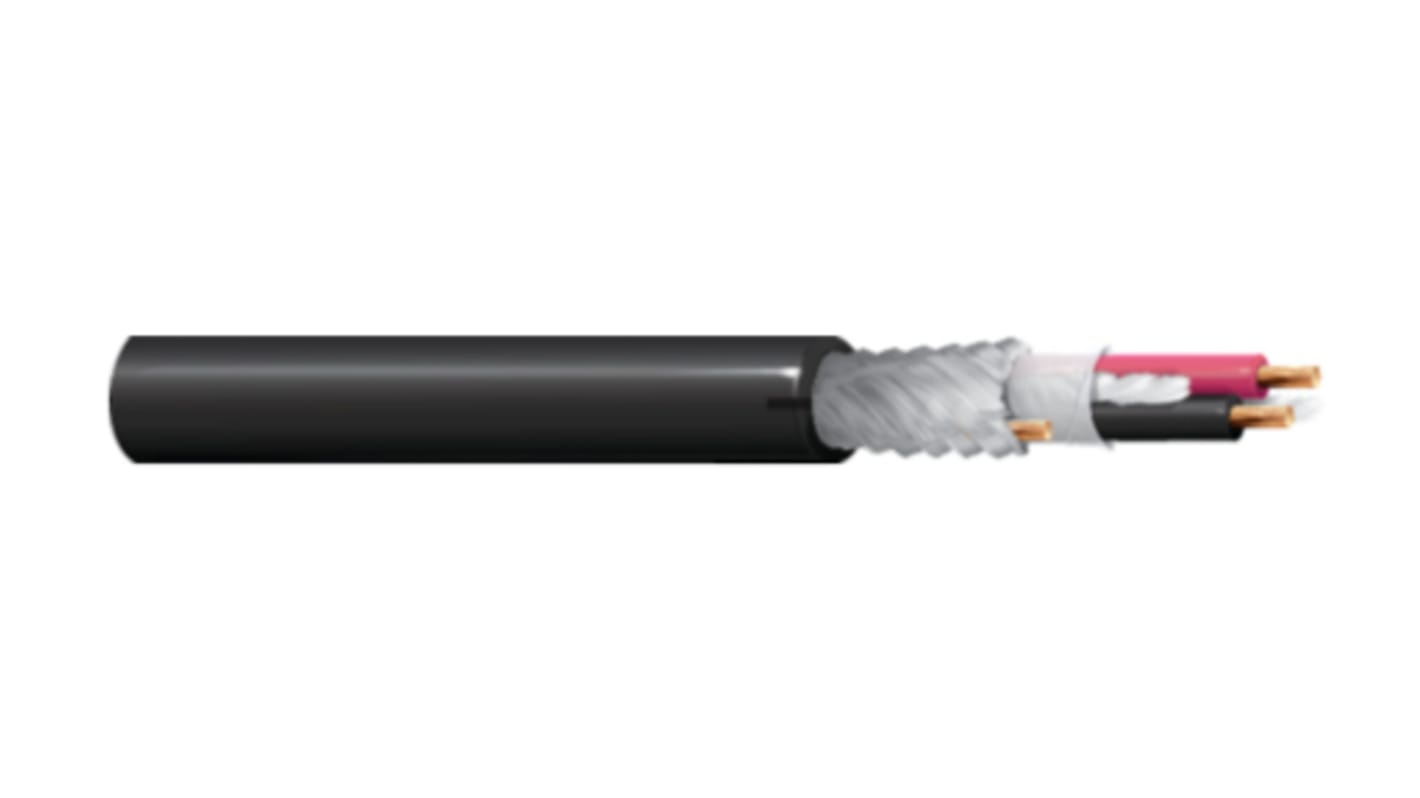

Belden 1800F Digital Microphone Cable, 24 AWG, CL2R rated
If you need rugged, high-quality digital microphone cabling that offers superior delivery of audio signals, try the 1800F cable from Belden.
The Belden 1800F cable is a microphone cable which uses 1 pair of stranded bare copper conductors (42x40). It features a tinned copper French braid shield which provides 95% coverage, for excellent protection against EMI (electromagnetic interference), giving you improved transmission of audio signals. The Belden 1800F is a robust choice for your installation as it also has foamed HDPE insulation (High Density Polyethylene), which offers high mechanical resilience. This cable can be operated in temperatures of -20°C to +60°C.
The 1800F B59500 unit features a matte black sheath and is 152m long.
Features and Benefits:
• CL2R rated (Class 2 Riser) makes it suitable for use in Riser applications
• 41.5 lbs (18.8 kg) maximum pull tension
• Bare copper conductors provide high conductivity for dependable signal transmission
• Tough PVC outer jacket ensures durability against abrasions, water, and oils
Applications:
Digital microphone
Flexible interconnect cable for digital audio
What is Riser cable?
Riser rated cabling runs vertically between multiple floors of a building and has flame retardant properties to limit the spread of fire. They are used in non-plenum spaces (where plenum cabling, which needs to meet stricter fire safety standards, is not required).
