- RS Stock No.:
- 418-4758
- Mfr. Part No.:
- 1510C B59500
- Brand:
- Belden
Available to back order for despatch 24/09/2024
Added
Price 1 Reel of 152 Metre(s)
£1,191.67
(exc. VAT)
£1,430.00
(inc. VAT)
Reel(s) | Per Reel | Per Metre* |
1 + | £1,191.67 | £7.84 |
*price indicative |
- RS Stock No.:
- 418-4758
- Mfr. Part No.:
- 1510C B59500
- Brand:
- Belden
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details

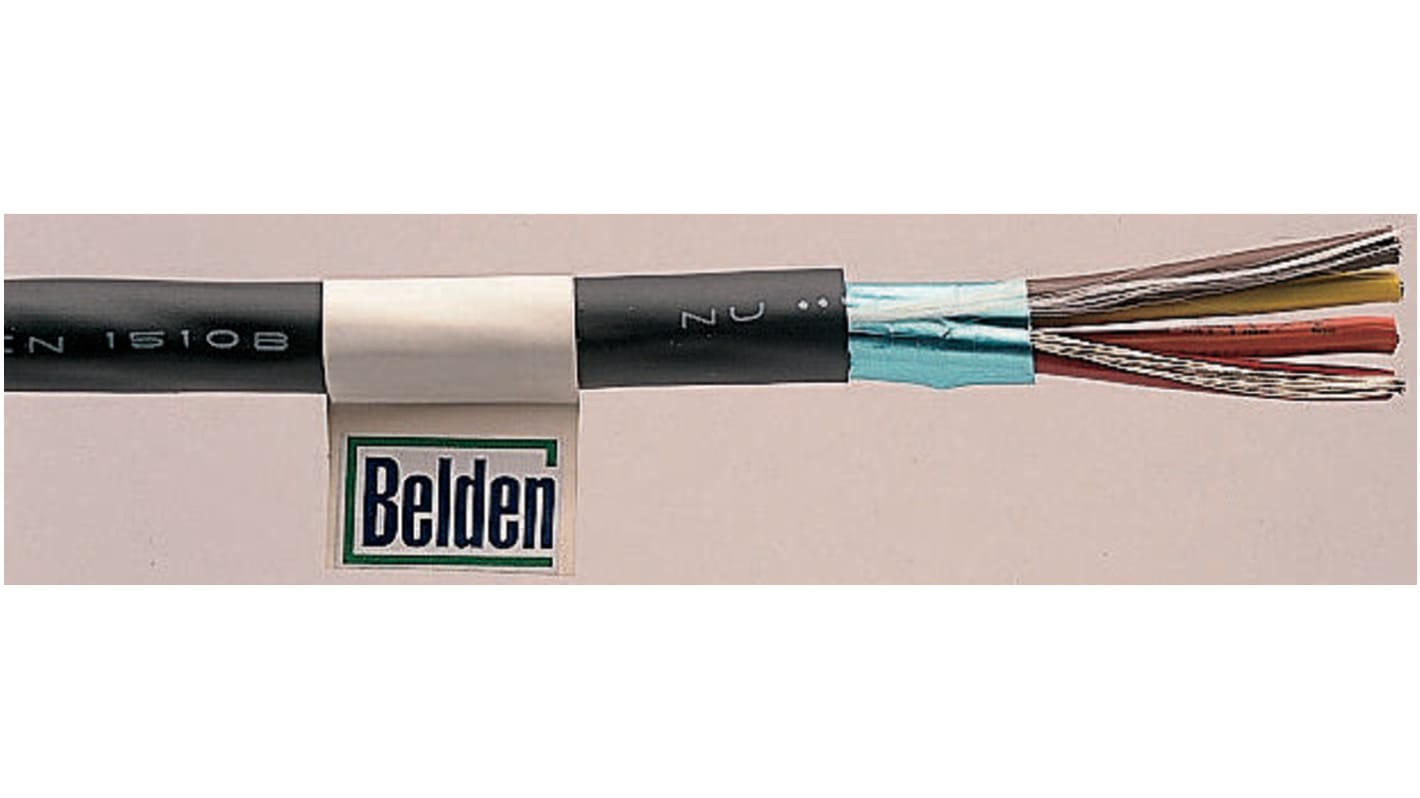

Multi-Pair Analog Snake Cable
CM rated flexible cable with a multitude of uses.
Features and Benefits
·CM rated
·Individually shielded and jacketed pairs
·Overall Beldfoil® shield
·Tinned copper drain wire
·Nylon rip cord
·CM rated
·Individually shielded and jacketed pairs
·Overall Beldfoil® shield
·Tinned copper drain wire
·Nylon rip cord
Applications
·Console board equipment
·Recording Studios
·Radio/television stations
·Post-production
·Sound systems
·Console board equipment
·Recording Studios
·Radio/television stations
·Post-production
·Sound systems
Approvals
UL; CM
Specifications
Attribute | Value |
---|---|
Audio Cable Type | Multi-Channel Audio Cable |
Cross Sectional Area | 0.22 mm² |
Outer Diameter | 8.94mm |
Length | 152m |
CPR Certification | Eca |
Minimum Operating Temperature | -35°C |
Maximum Operating Temperature | +75°C |
Sheath Colour | Black |
American Wire Gauge | 24 AWG |
Sheath Material | PVC |
Capacitance Core To Screen | 58pF/ft |
Voltage Rating | 300 V |
Capacitance Core To Core | 31pF/ft |
Size of Strands | 0.2 mm |
Conductor Material | Tinned Copper |
Core Strands | 7/32 |
Cable Shape | Multicore |
Standards Met | Euroclass Eca |
Current Rating | 1.05 A |
Number of Strands | 7 |
Conductor Resistance | 23.3 Ω/0.34 km |
