Belden 8760 Series 2 Core, 0.96 mm² CSA Screened, 0.222 in OD, 152 m, Silver
- RS Stock No.:
- 287-6695
- Mfr. Part No.:
- 8760 00U152
- Brand:
- Belden
Subtotal (1 reel of 152 metres)*
£340.024
(exc. VAT)
£407.968
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 152 + | £2.237 | £340.02 |
*price indicative
- RS Stock No.:
- 287-6695
- Mfr. Part No.:
- 8760 00U152
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Product Type | Audio Cable | |
| Number of Cores | 2 | |
| Cross Sectional Area | 0.96 mm² | |
| Screened/Unscreened | Screened | |
| Outside Diameter | 0.222in | |
| Cable Length | 152m | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | No | |
| Jacket Colour | Silver | |
| Jacket Material | Polyvinyl Chloride | |
| Series | 8760 | |
| Voltage | 300V | |
| Select all | ||
|---|---|---|
Brand Belden | ||
Product Type Audio Cable | ||
Number of Cores 2 | ||
Cross Sectional Area 0.96 mm² | ||
Screened/Unscreened Screened | ||
Outside Diameter 0.222in | ||
Cable Length 152m | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals No | ||
Jacket Colour Silver | ||
Jacket Material Polyvinyl Chloride | ||
Series 8760 | ||
Voltage 300V | ||
- COO (Country of Origin):
- NL

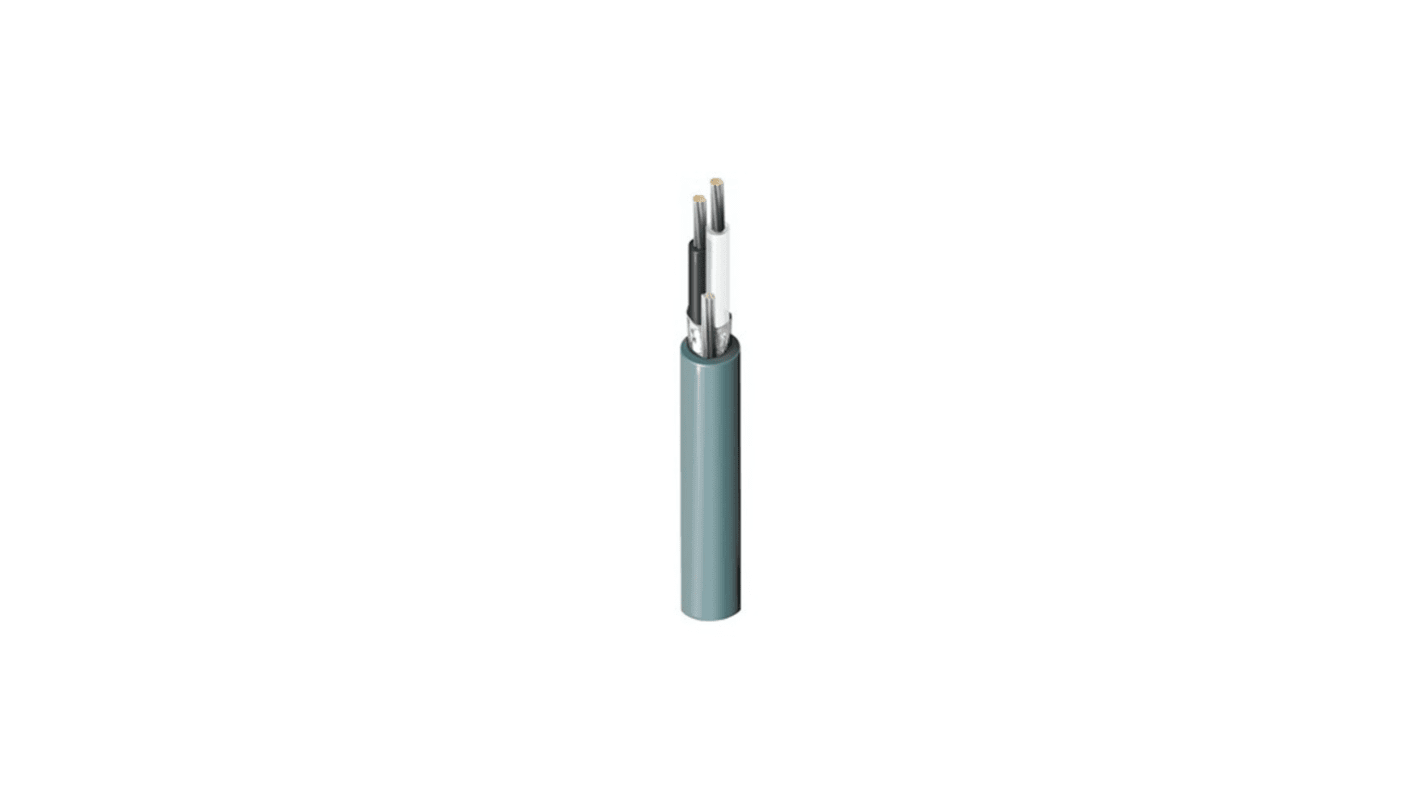

The audio cable features one 18 AWG pair of stranded tinned copper conductors with a polyethylene insulation. It boasts an overall Beldfoil shield for 100% coverage and a durable PVC jacket, making it a reliable choice for various applications.
Polyethylene insulation to protect the conductors from external factors
Overall Beldfoil shield for complete coverage and enhanced durability
PVC jacket for added protection and longevity
Capable of carrying a maximum recommended current of 7.2 Amps per conductor
UL rated for a voltage of 300 V RMS, ensuring safety and reliability
