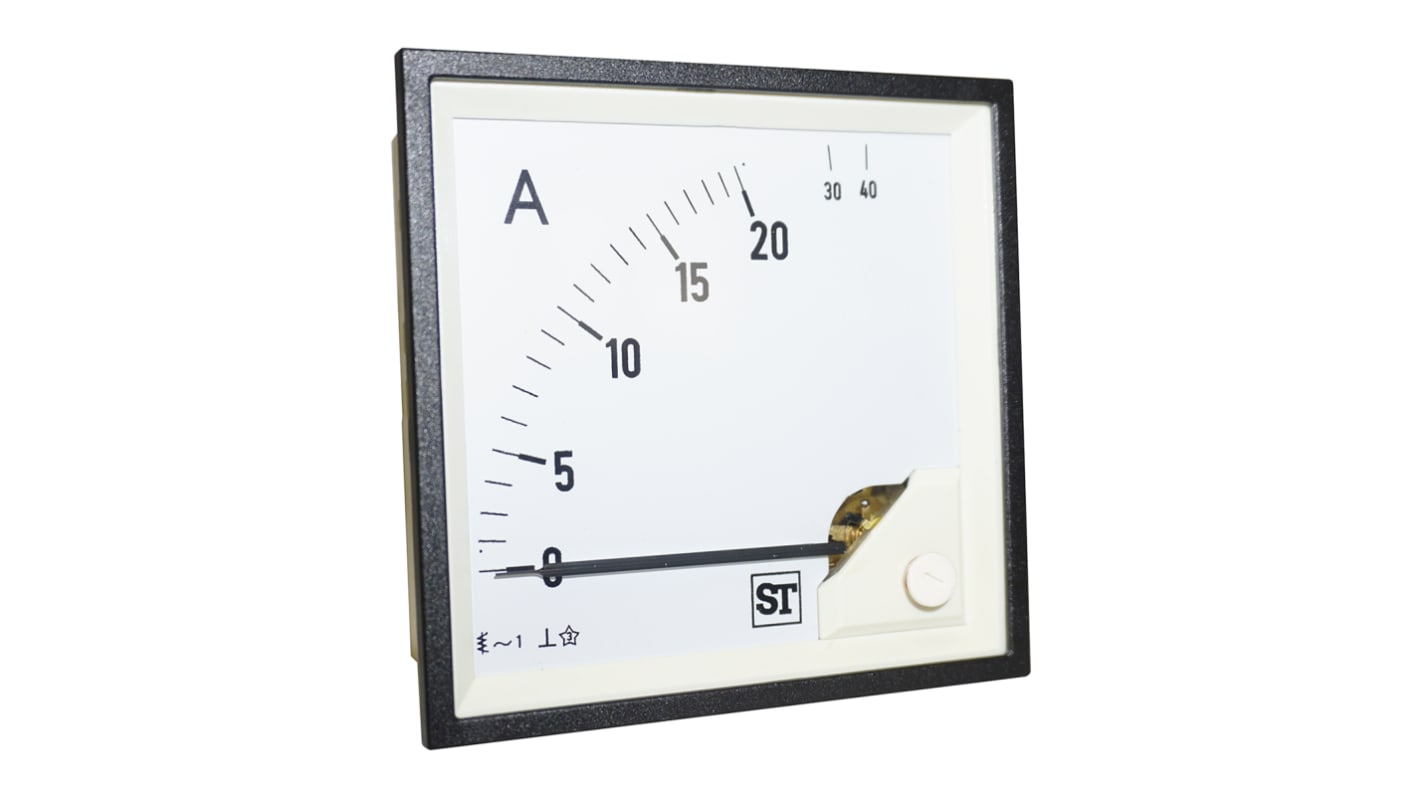

Sifam Tinsley Sigma Analogue Panel Ammeter 20 A AC, 96 mm x 96 mm Moving Iron
- RS Stock No.:
- 886-1923
- Mfr. Part No.:
- EQ94-I1522N1CAW0ST
- Brand:
- Sifam Tinsley
Bulk discount available
Subtotal (1 unit)*
£12.54
(exc. VAT)
£15.05
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 4 | £12.54 |
| 5 - 9 | £12.02 |
| 10 + | £11.65 |
*price indicative
- RS Stock No.:
- 886-1923
- Mfr. Part No.:
- EQ94-I1522N1CAW0ST
- Brand:
- Sifam Tinsley
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sifam Tinsley | |
| Product Type | Analogue Panel Ammeter | |
| Current Type | AC | |
| Moving Element | Moving Iron | |
| Cutout Height | 96mm | |
| Cutout Width | 96mm | |
| Depth | 54mm | |
| Maximum Operating Temperature | 55°C | |
| Minimum Operating Temperature | -10°C | |
| Maximum Ampere Value | 20 A | |
| Standards/Approvals | UL 94 V-0, DIN 43802, VDE/VDI 3540, DIN IEC 61554, DIN 43807 | |
| Maximum Measurement | 20 A | |
| Series | Sigma | |
| Select all | ||
|---|---|---|
Brand Sifam Tinsley | ||
Product Type Analogue Panel Ammeter | ||
Current Type AC | ||
Moving Element Moving Iron | ||
Cutout Height 96mm | ||
Cutout Width 96mm | ||
Depth 54mm | ||
Maximum Operating Temperature 55°C | ||
Minimum Operating Temperature -10°C | ||
Maximum Ampere Value 20 A | ||
Standards/Approvals UL 94 V-0, DIN 43802, VDE/VDI 3540, DIN IEC 61554, DIN 43807 | ||
Maximum Measurement 20 A | ||
Series Sigma | ||
Non Compliant
Sigma Series DE Panel Meter
These Sigma Series of DE moving iron panel meters are housed in moulded polycarbonate cases and are suitable for the measurement of AC currents for a frequency range of 15-400Hz and voltages in the frequency range of 15-100Hz.
Available in variety of sizes for both Ammeters & Voltmeters
Scale interchangeability
Near linear scale
Glass filled polycarbonate housing
Knife edge pointer
Easily replace able glass and bezel
