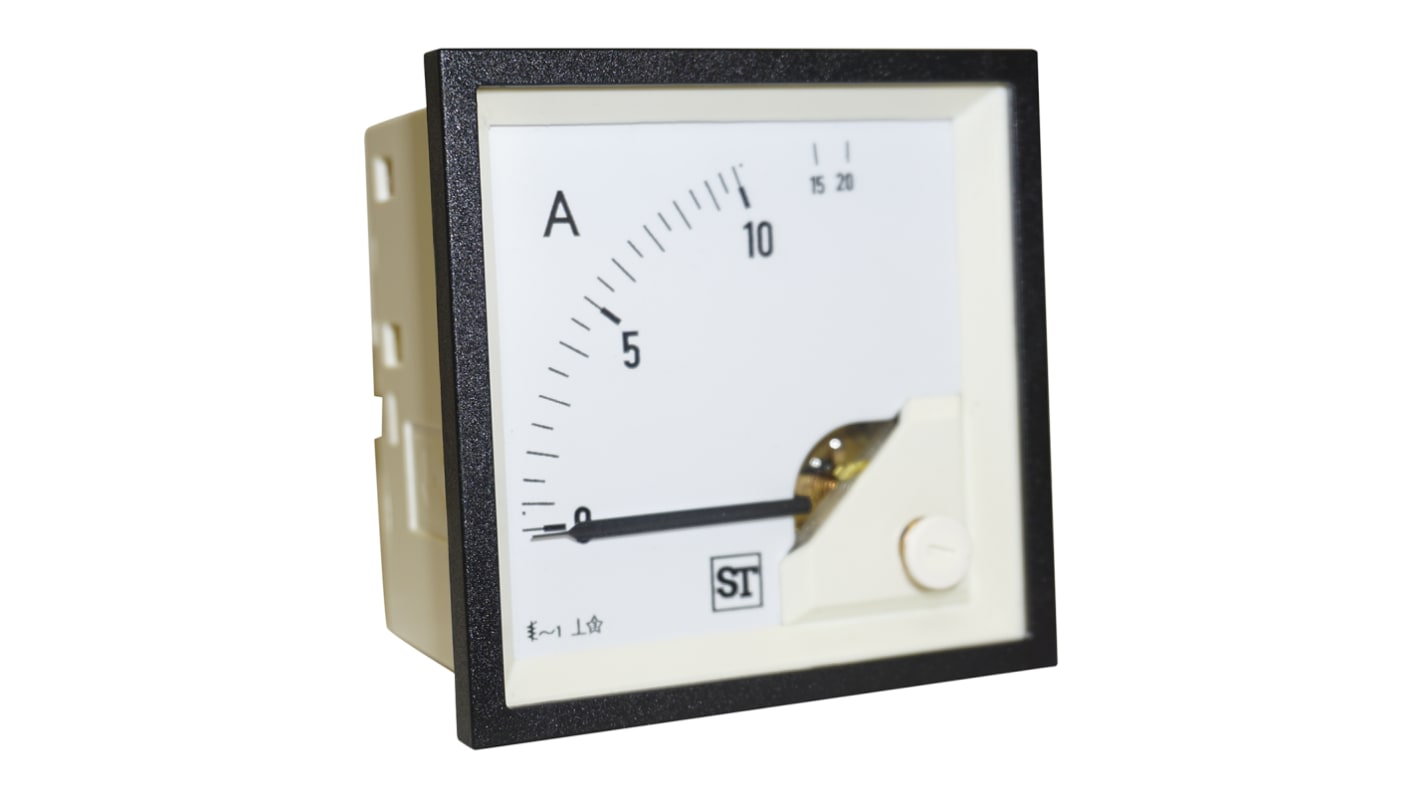

Sifam Tinsley Sigma Analogue Panel Ammeter 10 A AC, 68 mm x 68 mm Moving Iron
- RS Stock No.:
- 886-1878
- Mfr. Part No.:
- EQ74-I1322N1CAW0ST
- Brand:
- Sifam Tinsley
Bulk discount available
Subtotal (1 unit)*
£12.54
(exc. VAT)
£15.05
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 29 unit(s) shipping from 04 May 2026
- Plus 17 unit(s) shipping from 04 May 2026
- Plus 21 unit(s) shipping from 21 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £12.54 |
| 5 - 9 | £12.03 |
| 10 + | £11.66 |
*price indicative
- RS Stock No.:
- 886-1878
- Mfr. Part No.:
- EQ74-I1322N1CAW0ST
- Brand:
- Sifam Tinsley
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sifam Tinsley | |
| Product Type | Analogue Panel Ammeter | |
| Current Type | AC | |
| Moving Element | Moving Iron | |
| Cutout Height | 68mm | |
| Cutout Width | 68mm | |
| Depth | 54mm | |
| Maximum Operating Temperature | 55°C | |
| Maximum Ampere Value | 10 A | |
| Minimum Operating Temperature | -10°C | |
| Standards/Approvals | DIN 40050, 2004/108/EC (EMC Directive), 2006/95/EC (Low Voltage Directive) and Amendment 93/68/EEC, DIN 43807, DIN 43802, DIN 46282, DIN EN 60051, DIN 43718, DIN 43701, DIN 46200, CE | |
| Series | Sigma | |
| Select all | ||
|---|---|---|
Brand Sifam Tinsley | ||
Product Type Analogue Panel Ammeter | ||
Current Type AC | ||
Moving Element Moving Iron | ||
Cutout Height 68mm | ||
Cutout Width 68mm | ||
Depth 54mm | ||
Maximum Operating Temperature 55°C | ||
Maximum Ampere Value 10 A | ||
Minimum Operating Temperature -10°C | ||
Standards/Approvals DIN 40050, 2004/108/EC (EMC Directive), 2006/95/EC (Low Voltage Directive) and Amendment 93/68/EEC, DIN 43807, DIN 43802, DIN 46282, DIN EN 60051, DIN 43718, DIN 43701, DIN 46200, CE | ||
Series Sigma | ||
Non Compliant
Sigma Series DE Panel Meter
These Sigma Series of DE moving iron panel meters are housed in moulded polycarbonate cases and are suitable for the measurement of AC currents for a frequency range of 15-400Hz and voltages in the frequency range of 15-100Hz.
Available in variety of sizes for both Ammeters & Voltmeters
Scale interchangeability
Near linear scale
Glass filled polycarbonate housing
Knife edge pointer
Easily replace able glass and bezel
Sifam Tinsley Moving Iron Panel Meters
