Nichicon 100μF Aluminium Electrolytic Capacitor 35V dc, Radial, Through Hole - UVR1V101MED
- RS Stock No.:
- 862-3323
- Mfr. Part No.:
- UVR1V101MED
- Brand:
- Nichicon
Bulk discount available
Subtotal (1 unit)*
£0.26
(exc. VAT)
£0.31
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- 1 left, ready to ship
- Final 72 unit(s) shipping from 30 October 2025
Units | Per unit |
---|---|
1 - 9 | £0.26 |
10 - 99 | £0.16 |
100 - 499 | £0.11 |
500 + | £0.08 |
*price indicative
- RS Stock No.:
- 862-3323
- Mfr. Part No.:
- UVR1V101MED
- Brand:
- Nichicon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Nichicon | |
Capacitance | 100µF | |
Voltage | 35V dc | |
Mounting Type | Radial, Through Hole | |
Technology | Aluminium Electrolytic | |
Dimensions | 6.3 (Dia.) x 11mm | |
Height | 11mm | |
Minimum Operating Temperature | -40°C | |
Diameter | 6.3mm | |
Maximum Operating Temperature | +85°C | |
Lifetime | 2000h | |
Lead Pitch | 2.5mm | |
Series | VR | |
Tolerance | ±20% | |
Leakage Current | 105 μA | |
Ripple Current | 210mA | |
Select all | ||
---|---|---|
Brand Nichicon | ||
Capacitance 100µF | ||
Voltage 35V dc | ||
Mounting Type Radial, Through Hole | ||
Technology Aluminium Electrolytic | ||
Dimensions 6.3 (Dia.) x 11mm | ||
Height 11mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 6.3mm | ||
Maximum Operating Temperature +85°C | ||
Lifetime 2000h | ||
Lead Pitch 2.5mm | ||
Series VR | ||
Tolerance ±20% | ||
Leakage Current 105 μA | ||
Ripple Current 210mA | ||

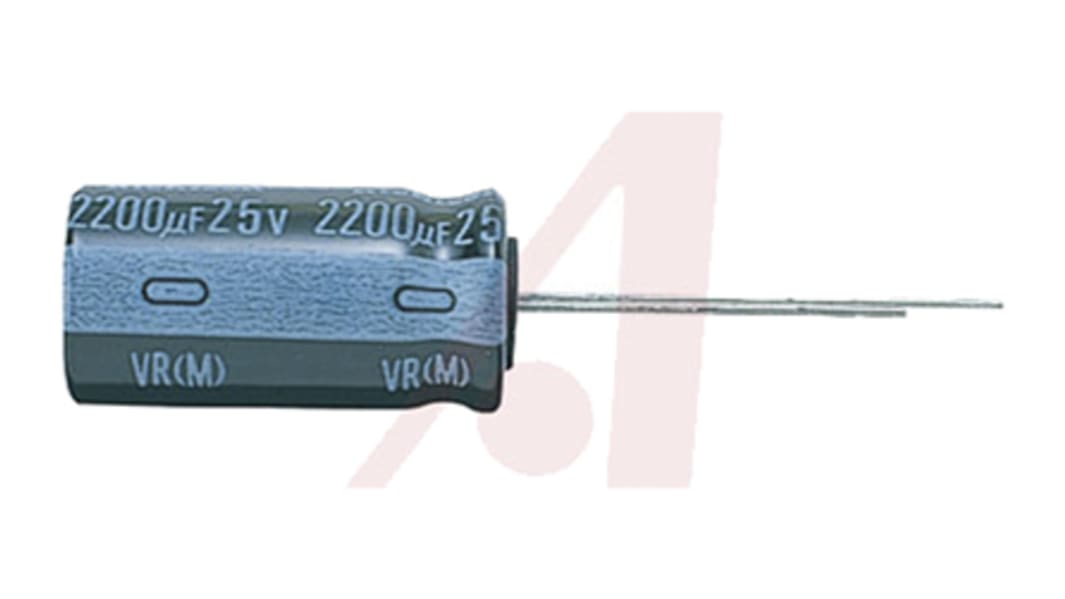

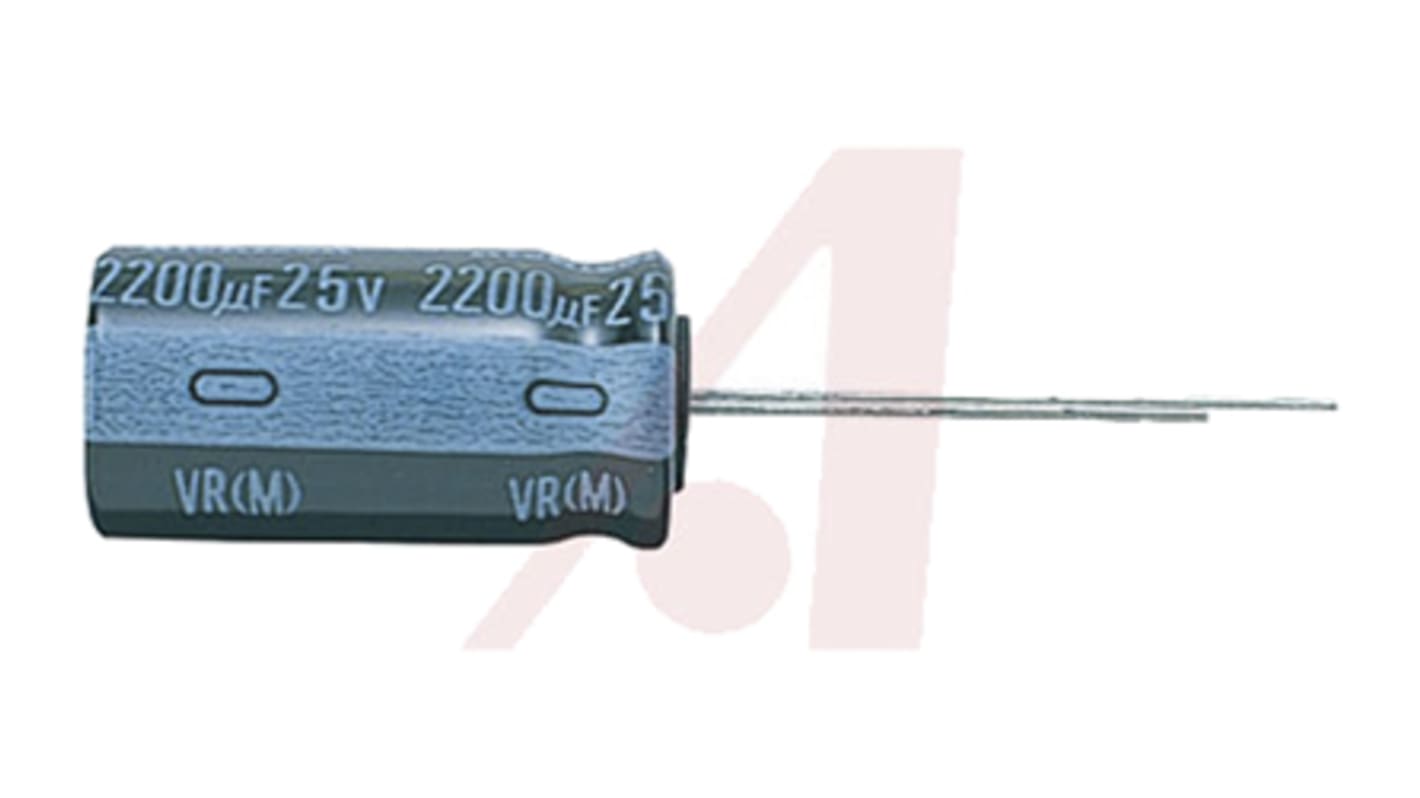

Nichicon VR Series General Purpose Electrolytic Capacitors
Nichicon VR Series Aluminium Electrolytic Capacitors are high reliability capacitors which have a rated life up to 2000 hours. The VR series capacitors offer a high temperature range, high voltage, low impedance and high ripple current.
Features & Benefits:
High reliability
High ripple current
Long life up to 2000 hours
Lead free reflow soldering
Capacitance values up to 33000 μF
High ripple current
Long life up to 2000 hours
Lead free reflow soldering
Capacitance values up to 33000 μF
