Panasonic 10μF Aluminium Electrolytic Capacitor 25V dc, Surface Mount - EEEFK1E100R

View all Aluminium Capacitors
Bulk discount available

Subtotal (1 reel of 2000 units)*

£178.00

(exc. VAT)

£214.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 4,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
2000 - 2000£0.089£178.00
4000 - 8000£0.087£174.00
10000 +£0.085£170.00

*price indicative

Sponsored
A Panasonic surface mount resistor on a burgandy background
Panasonic Brand Logo
Panasonic Aluminium Capacitors & Surface Mount Resistors
Build reliable, compact designs with Panasonic’s trusted aluminium capacitors and precision surface mount resistors.
Shop Here
RS Stock No.:
747-8958
Mfr. Part No.:
EEEFK1E100R
Brand:
Panasonic
Find similar products by selecting one or more attributes.
Select all

Brand

Panasonic

Capacitance

10µF

Voltage

25V dc

Mounting Type

Surface Mount

Technology

Aluminium Electrolytic

Dimensions

4 (Dia.) x 5.8mm

Height

5.8mm

Minimum Operating Temperature

-55°C

Diameter

4mm

Maximum Operating Temperature

+105°C

Lead Pitch

1mm

Lifetime

2000h

Equivalent Series Resistance

1.35Ω

Series

FK SMD

Leakage Current

3 μA

Tolerance

±20%

Polarised

Polar

Automotive Standard

AEC-Q200

Ripple Current

90mA

COO (Country of Origin):
MY

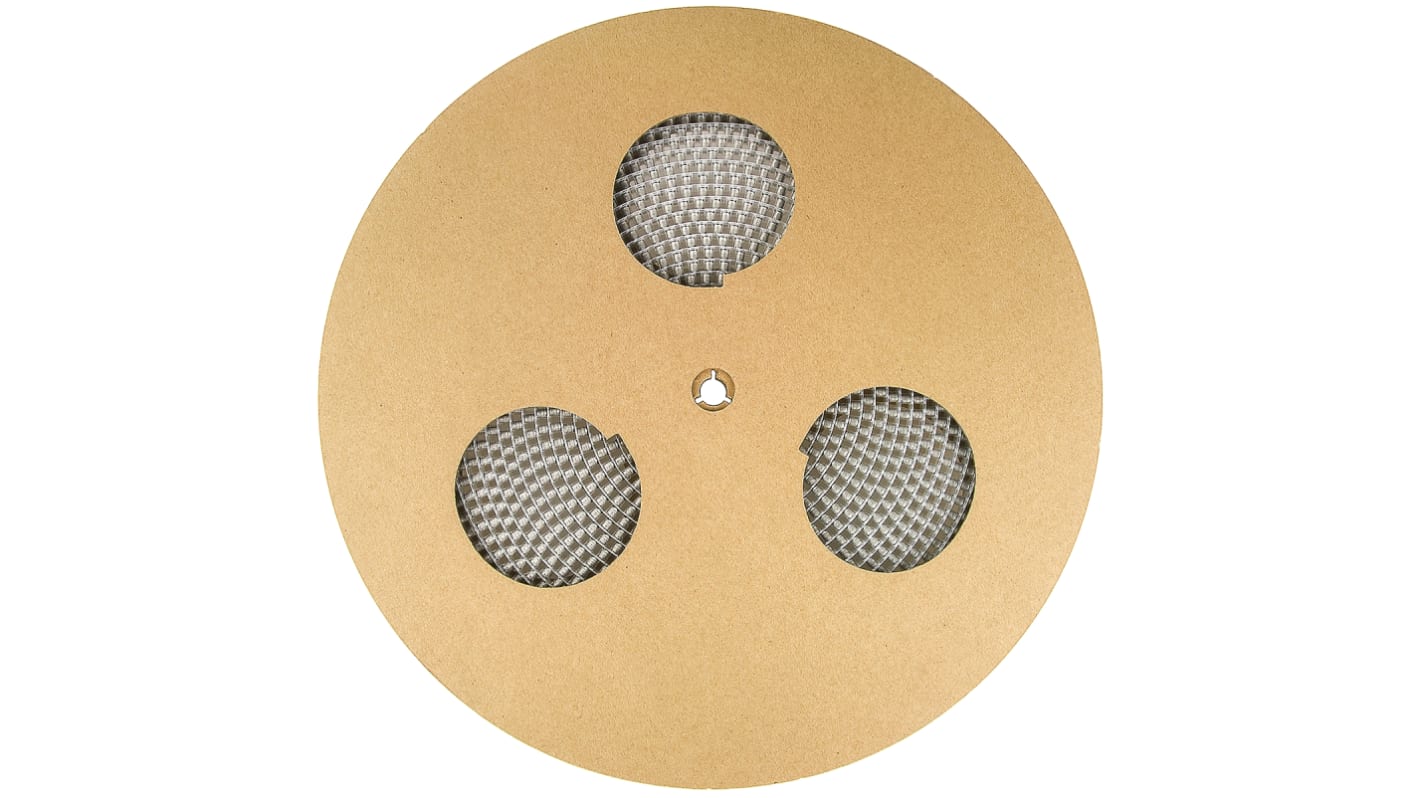

FK Series reels


Offered in a full reel, the FK series of aluminium electrolytic capacitors from Panasonic are a miniaturised version of the FC series, featuring impedance values 40-60% less than the FC series. These electrolytic capacitors have a long life of up to 5000 hours and are AEC-Q200 qualified, making them suitable for automotive applications. Part numbers with an A* suffix are able to withstand high reflow temperatures for extended periods.
