Panasonic 10μF Aluminium Electrolytic Capacitor 25V dc, Surface Mount - EEEFK1E100AR
- RS Stock No.:
- 747-8955
- Mfr. Part No.:
- EEEFK1E100AR
- Brand:
- Panasonic
Bulk discount available

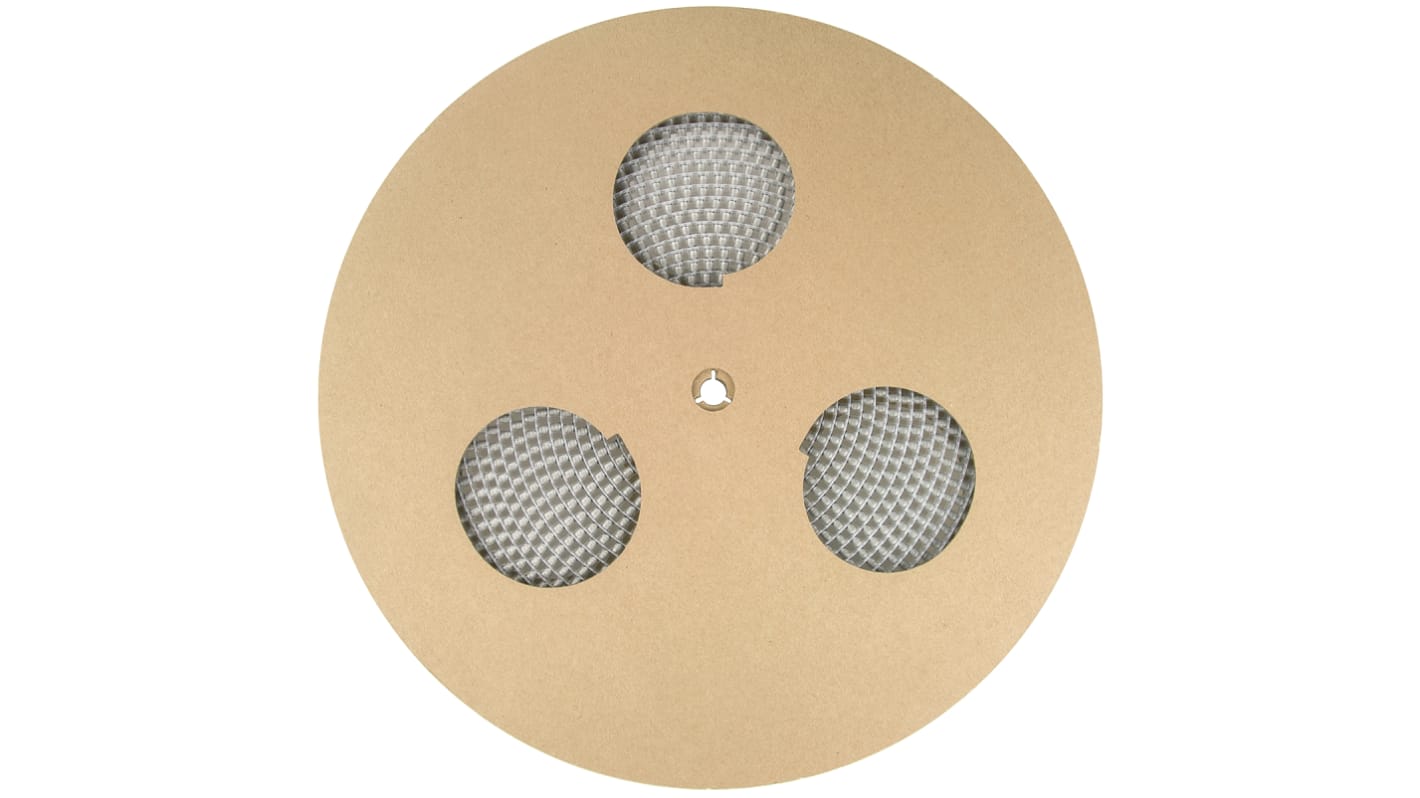

Subtotal (1 reel of 2000 units)*
£168.00
(exc. VAT)
£202.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2000 - 2000 | £0.084 | £168.00 |
| 4000 - 8000 | £0.082 | £164.00 |
| 10000 - 18000 | £0.08 | £160.00 |
| 20000 + | £0.078 | £156.00 |
*price indicative
- RS Stock No.:
- 747-8955
- Mfr. Part No.:
- EEEFK1E100AR
- Brand:
- Panasonic
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 10µF | |
| Voltage | 25V dc | |
| Mounting Type | Surface Mount | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 4 (Dia.) x 5.8mm | |
| Height | 5.8mm | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 4mm | |
| Maximum Operating Temperature | +105°C | |
| Lifetime | 2000h | |
| Lead Pitch | 1mm | |
| Tolerance | ±20% | |
| Leakage Current | 3 μA | |
| Ripple Current | 90mA | |
| Automotive Standard | AEC-Q200 | |
| Polarised | Polar | |
| Equivalent Series Resistance | 1.35Ω | |
| Series | FK SMD | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 10µF | ||
Voltage 25V dc | ||
Mounting Type Surface Mount | ||
Technology Aluminium Electrolytic | ||
Dimensions 4 (Dia.) x 5.8mm | ||
Height 5.8mm | ||
Minimum Operating Temperature -55°C | ||
Diameter 4mm | ||
Maximum Operating Temperature +105°C | ||
Lifetime 2000h | ||
Lead Pitch 1mm | ||
Tolerance ±20% | ||
Leakage Current 3 μA | ||
Ripple Current 90mA | ||
Automotive Standard AEC-Q200 | ||
Polarised Polar | ||
Equivalent Series Resistance 1.35Ω | ||
Series FK SMD | ||
