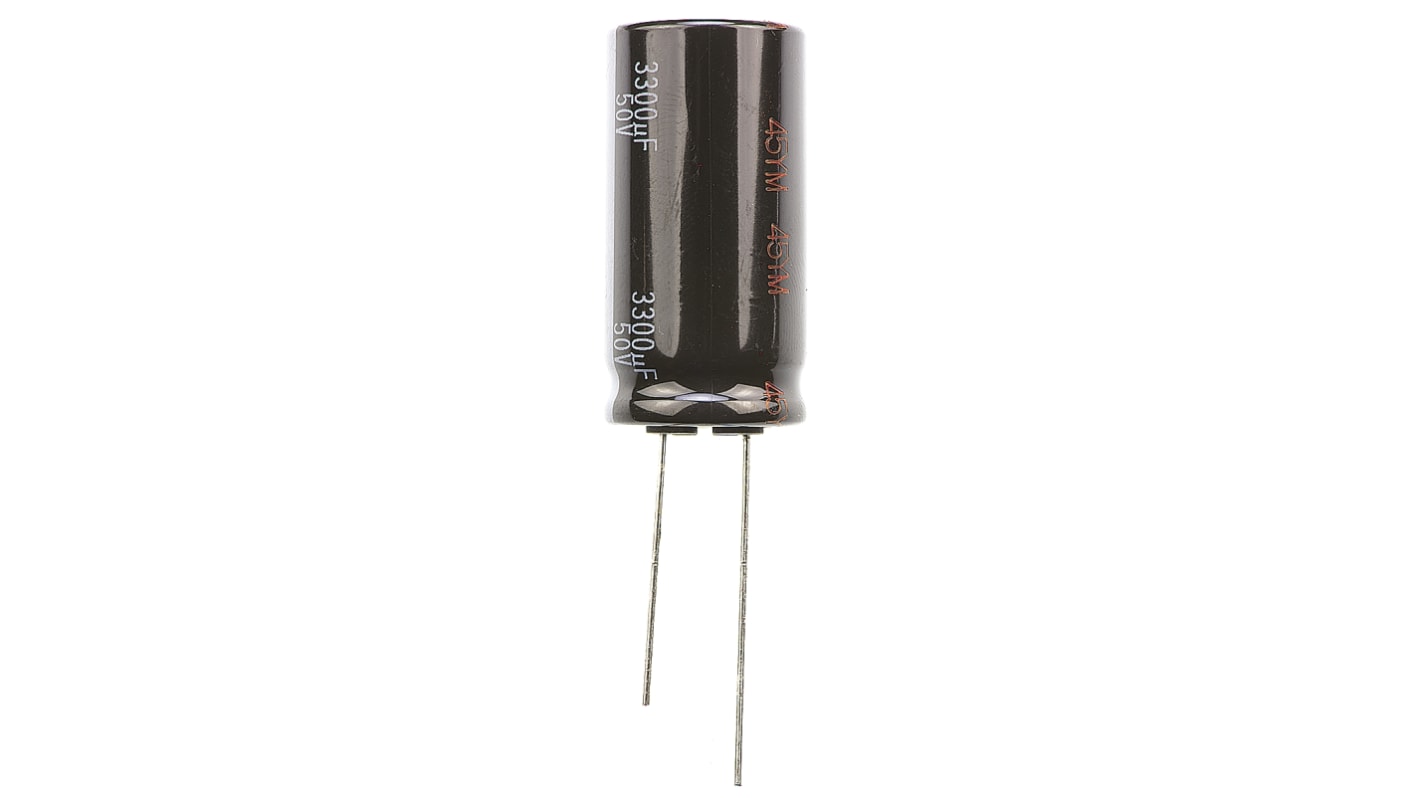

Panasonic 3300μF Aluminium Electrolytic Capacitor 50V dc, Radial, Through Hole - EEUHD1H332
- RS Stock No.:
- 744-2173
- Distrelec Article No.:
- 300-14-107
- Mfr. Part No.:
- EEUHD1H332
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 unit)*
£3.62
(exc. VAT)
£4.34
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 16 unit(s) ready to ship from another location
- Plus 18 unit(s) shipping from 12 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £3.62 |
| 10 - 49 | £2.91 |
| 50 - 99 | £2.78 |
| 100 - 249 | £2.27 |
| 250 + | £2.00 |
*price indicative
- RS Stock No.:
- 744-2173
- Distrelec Article No.:
- 300-14-107
- Mfr. Part No.:
- EEUHD1H332
- Brand:
- Panasonic
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 3300µF | |
| Voltage | 50V dc | |
| Mounting Type | Radial, Through Hole | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 18 (Dia.) x 35.5mm | |
| Height | 35.5mm | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 18mm | |
| Maximum Operating Temperature | +105°C | |
| Lifetime | 2000h | |
| Lead Pitch | 7.5mm | |
| Ripple Current | 1.77A | |
| Leakage Current | <=0.01 CV or 3 μA @ 2 min | |
| Polarised | Polar | |
| Series | HD RADIAL | |
| Tolerance | ±20% | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 3300µF | ||
Voltage 50V dc | ||
Mounting Type Radial, Through Hole | ||
Technology Aluminium Electrolytic | ||
Dimensions 18 (Dia.) x 35.5mm | ||
Height 35.5mm | ||
Minimum Operating Temperature -55°C | ||
Diameter 18mm | ||
Maximum Operating Temperature +105°C | ||
Lifetime 2000h | ||
Lead Pitch 7.5mm | ||
Ripple Current 1.77A | ||
Leakage Current <=0.01 CV or 3 μA @ 2 min | ||
Polarised Polar | ||
Series HD RADIAL | ||
Tolerance ±20% | ||
