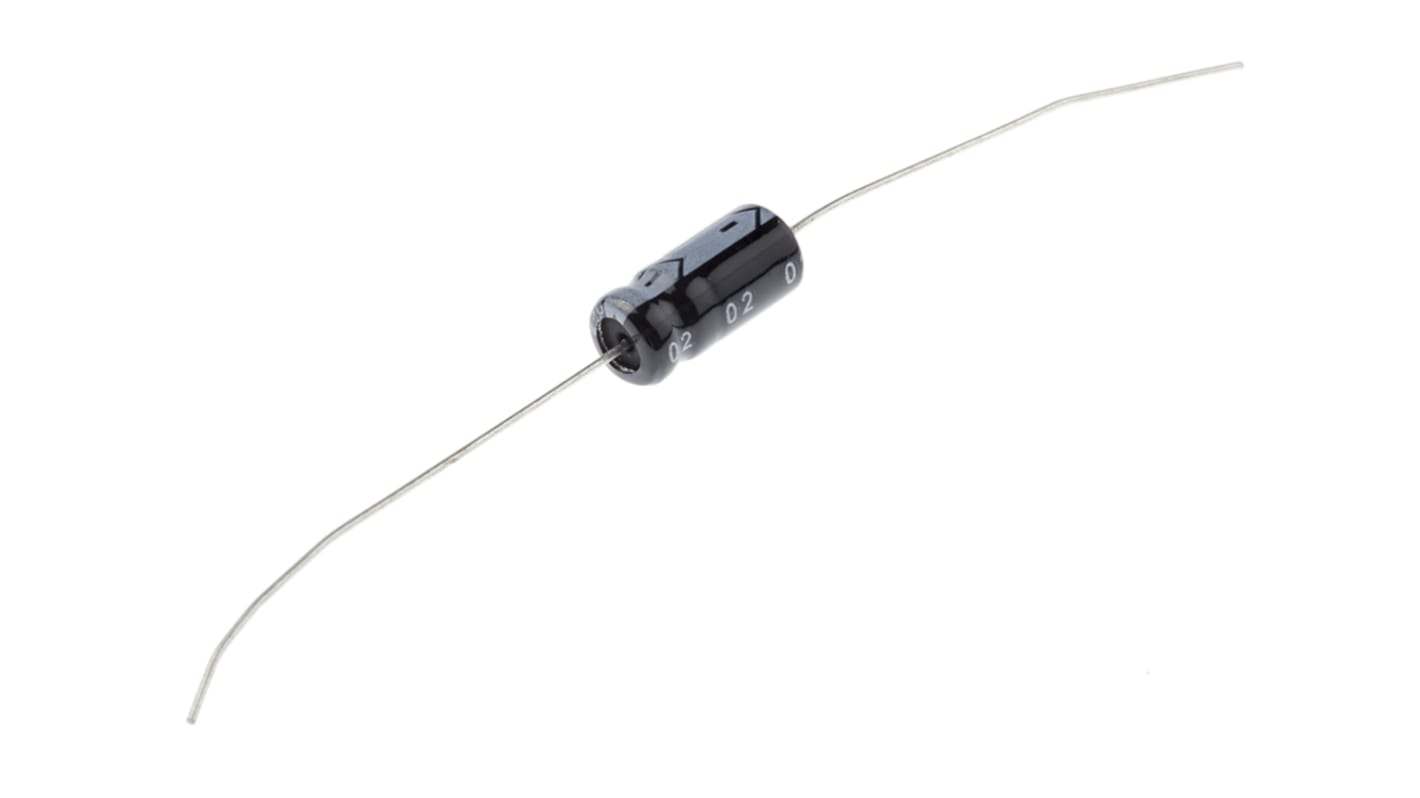

RS PRO 33μF Aluminium Electrolytic Capacitor 35V dc, Axial, Through Hole
- RS Stock No.:
- 707-6461
- Brand:
- RS PRO
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 707-6461
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Capacitance | 33µF | |
Voltage | 35V dc | |
Mounting Type | Axial, Through Hole | |
Technology | Aluminium Electrolytic | |
Dimensions | 6 (Dia.) x 13mm | |
Height | 13mm | |
Length | 13mm | |
Minimum Operating Temperature | -40°C | |
Diameter | 6mm | |
Maximum Operating Temperature | 105°C | |
Lifetime | 1000h | |
Leakage Current | <=0.02 CV or 3 μA @ 5 min | |
Tolerance | ±20% | |
Ripple Current | 69mA | |
Series | RS | |
Polarised | Polar | |
Dissipation Factor | 12% | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Capacitance 33µF | ||
Voltage 35V dc | ||
Mounting Type Axial, Through Hole | ||
Technology Aluminium Electrolytic | ||
Dimensions 6 (Dia.) x 13mm | ||
Height 13mm | ||
Length 13mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 6mm | ||
Maximum Operating Temperature 105°C | ||
Lifetime 1000h | ||
Leakage Current <=0.02 CV or 3 μA @ 5 min | ||
Tolerance ±20% | ||
Ripple Current 69mA | ||
Series RS | ||
Polarised Polar | ||
Dissipation Factor 12% | ||
- COO (Country of Origin):
- TW
RS Aluminium Axial Capacitors
General Purpose Axial RS Aluminium Capacitors, LAK Series 105°C
Safety vent construction design
Applications include communication equipment and switching power supply
Applications include communication equipment and switching power supply
