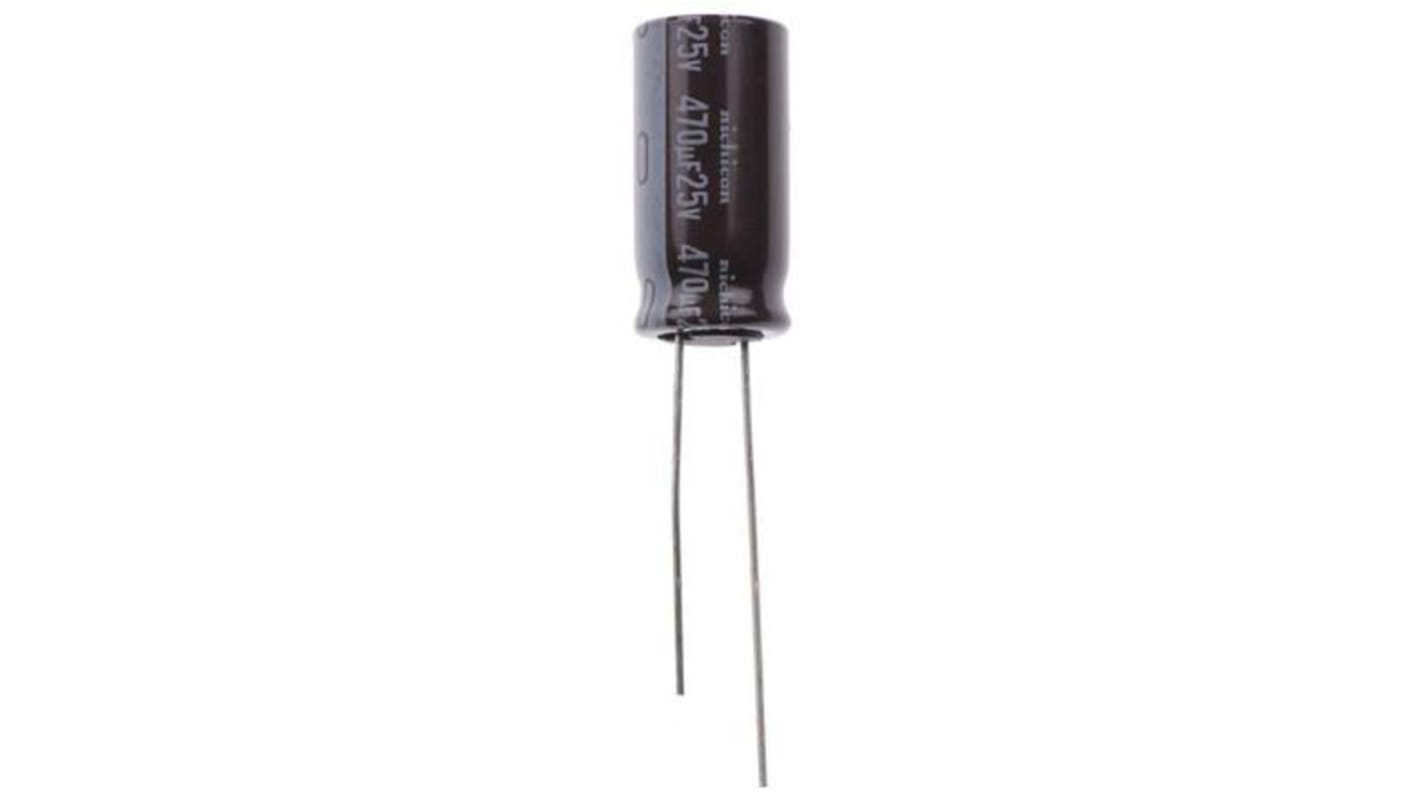

Nichicon 470 μF Capacitor 25V dc, Radial, Through Hole - UPM1E471MPD PC Pin
- RS Stock No.:
- 520-1523P
- Mfr. Part No.:
- UPM1E471MPD
- Brand:
- Nichicon
Subtotal 5 units (supplied in a bag)*
£2.93
(exc. VAT)
£3.515
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 22,785 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 5 + | £0.586 |
*price indicative
- RS Stock No.:
- 520-1523P
- Mfr. Part No.:
- UPM1E471MPD
- Brand:
- Nichicon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nichicon | |
| Product Type | Capacitor | |
| Capacitance | 470μF | |
| Voltage | 25V dc | |
| Construction | Cylindrical Can | |
| Mount Type | Radial, Through Hole | |
| Height | 20mm | |
| Polarity | Polar | |
| Length | 20mm | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 10mm | |
| Termination Type | PC Pin | |
| Capacitor Ripple Current | 810mA | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 105°C | |
| Lead Pitch | 5mm | |
| Standards/Approvals | EU, RoHS | |
| Width | 10mm | |
| Lifetime | 5000 h | |
| Tolerance | ±20 % | |
| Automotive Standard | No | |
| Leakage Current | 4μA | |
| Series | PM | |
| Select all | ||
|---|---|---|
Brand Nichicon | ||
Product Type Capacitor | ||
Capacitance 470μF | ||
Voltage 25V dc | ||
Construction Cylindrical Can | ||
Mount Type Radial, Through Hole | ||
Height 20mm | ||
Polarity Polar | ||
Length 20mm | ||
Minimum Operating Temperature -55°C | ||
Diameter 10mm | ||
Termination Type PC Pin | ||
Capacitor Ripple Current 810mA | ||
Pin Count 2 | ||
Maximum Operating Temperature 105°C | ||
Lead Pitch 5mm | ||
Standards/Approvals EU, RoHS | ||
Width 10mm | ||
Lifetime 5000 h | ||
Tolerance ±20 % | ||
Automotive Standard No | ||
Leakage Current 4μA | ||
Series PM | ||
Nichicon PM Series Electrolytic Capacitors
Nichicon PM Series Aluminium Electrolytic Capacitors are high reliability, low impedance products that have a 5000-hour load life and are compliant to the RoHS directive (2011/65/EU). The PM series features a wide temperature range, a rated voltage range of 6.3 V to 450 V, and high ripple current.
Features & Benefits:
High reliability
High ripple current
Long life up to 5000 hours
Lead free reflow soldering
Extremely low impedance
