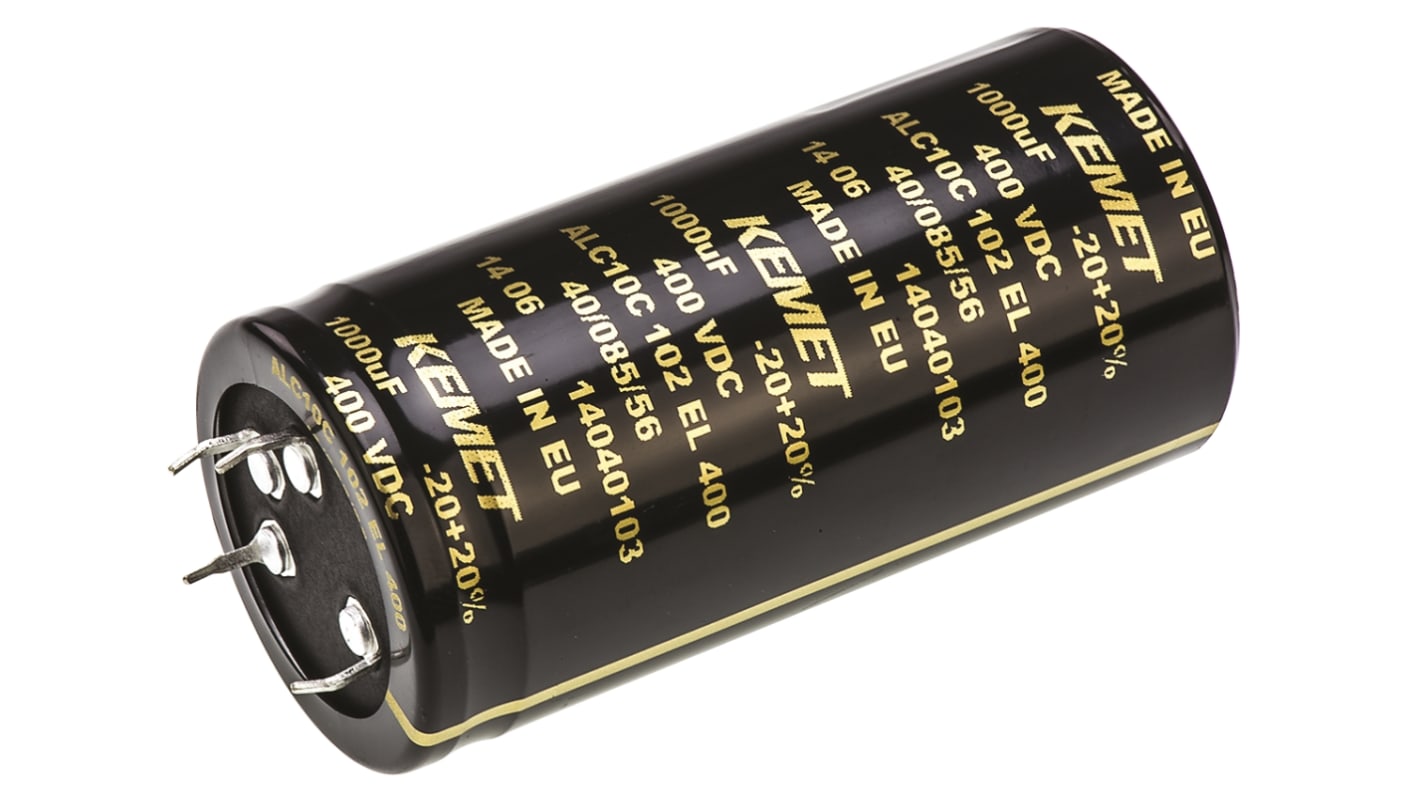

KEMET 1000 μF Capacitor 400V dc, Snap-in - ALC10C102EL400
- RS Stock No.:
- 339-8221
- Mfr. Part No.:
- ALC10C102EL400
- Brand:
- KEMET
Bulk discount available
Subtotal (1 unit)*
£20.61
(exc. VAT)
£24.73
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 44 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
- Plus 13 unit(s) shipping from 12 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £20.61 |
| 10 - 24 | £20.03 |
| 25 - 49 | £19.50 |
| 50 - 99 | £18.98 |
| 100 + | £18.49 |
*price indicative
- RS Stock No.:
- 339-8221
- Mfr. Part No.:
- ALC10C102EL400
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Product Type | Capacitor | |
| Capacitance | 1000μF | |
| Voltage | 400V dc | |
| Mount Type | Snap-in | |
| Construction | Cylindrical Can | |
| Polarity | Polar | |
| Height | 80mm | |
| Length | 80mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 40mm | |
| Termination Type | Screw | |
| Pin Count | 2 | |
| Capacitor Ripple Current | 5A | |
| Maximum Operating Temperature | 85°C | |
| Lifetime | 29000 h | |
| Lead Pitch | 22.5mm | |
| Standards/Approvals | IEC 60384-4, RoHS | |
| Tolerance | ±20 % | |
| Equivalent Series Resistance ESR | 120mΩ | |
| Leakage Current | 2.4mA | |
| Automotive Standard | No | |
| Series | ALC10 | |
| Select all | ||
|---|---|---|
Brand KEMET | ||
Product Type Capacitor | ||
Capacitance 1000μF | ||
Voltage 400V dc | ||
Mount Type Snap-in | ||
Construction Cylindrical Can | ||
Polarity Polar | ||
Height 80mm | ||
Length 80mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 40mm | ||
Termination Type Screw | ||
Pin Count 2 | ||
Capacitor Ripple Current 5A | ||
Maximum Operating Temperature 85°C | ||
Lifetime 29000 h | ||
Lead Pitch 22.5mm | ||
Standards/Approvals IEC 60384-4, RoHS | ||
Tolerance ±20 % | ||
Equivalent Series Resistance ESR 120mΩ | ||
Leakage Current 2.4mA | ||
Automotive Standard No | ||
Series ALC10 | ||
ALC10 Series
Kemet ALC10 series snap-in aluminium electrolytic capacitors cover a wide range of case sizes and voltage ratings. The ALC10 Series is designed for high voltage use, up to 550 V dc, as well as high ripple current applications. The ALC10 series features surge voltage capability and very long-life performance, suitable for applications demanding high reliability. Suitable applications for these aluminium electrolytic capacitors include frequency converters, switch mode power supplies (SMPS) and uninterruptible power supply systems (UPS).
Multi-pin snap-in terminations
Compact size
Long life, up to 18,000 hours
High ripple current
High voltage
Excellent surge voltage capability
