Vishay 470 μF Capacitor 6.3V dc, Through Hole - MAL202133471E3 Axial
- RS Stock No.:
- 280-3307
- Mfr. Part No.:
- MAL202133471E3
- Brand:
- Vishay
Subtotal (1 box of 500 units)*
£428.00
(exc. VAT)
£513.50
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1,500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 500 + | £0.856 | £428.00 |
*price indicative
- RS Stock No.:
- 280-3307
- Mfr. Part No.:
- MAL202133471E3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Capacitance | 470μF | |
| Product Type | Capacitor | |
| Voltage | 6.3V dc | |
| Mount Type | Through Hole | |
| Construction | Cylindrical Can | |
| Polarity | Polar | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 8mm | |
| Pin Count | 2 | |
| Capacitor Ripple Current | 260mA | |
| Termination Type | Axial | |
| Maximum Operating Temperature | 85°C | |
| Lead Pitch | 15mm | |
| Lifetime | 8000 h | |
| Standards/Approvals | IEC 60068, IEC 60384-4/EN 130300 | |
| Equivalent Series Resistance ESR | 0.850Ω | |
| Series | 021 ASM | |
| Automotive Standard | No | |
| Tolerance | ±20 % | |
| Leakage Current | 10μA | |
| Dissipation Factor | 0.25% | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Capacitance 470μF | ||
Product Type Capacitor | ||
Voltage 6.3V dc | ||
Mount Type Through Hole | ||
Construction Cylindrical Can | ||
Polarity Polar | ||
Minimum Operating Temperature -40°C | ||
Diameter 8mm | ||
Pin Count 2 | ||
Capacitor Ripple Current 260mA | ||
Termination Type Axial | ||
Maximum Operating Temperature 85°C | ||
Lead Pitch 15mm | ||
Lifetime 8000 h | ||
Standards/Approvals IEC 60068, IEC 60384-4/EN 130300 | ||
Equivalent Series Resistance ESR 0.850Ω | ||
Series 021 ASM | ||
Automotive Standard No | ||
Tolerance ±20 % | ||
Leakage Current 10μA | ||
Dissipation Factor 0.25% | ||

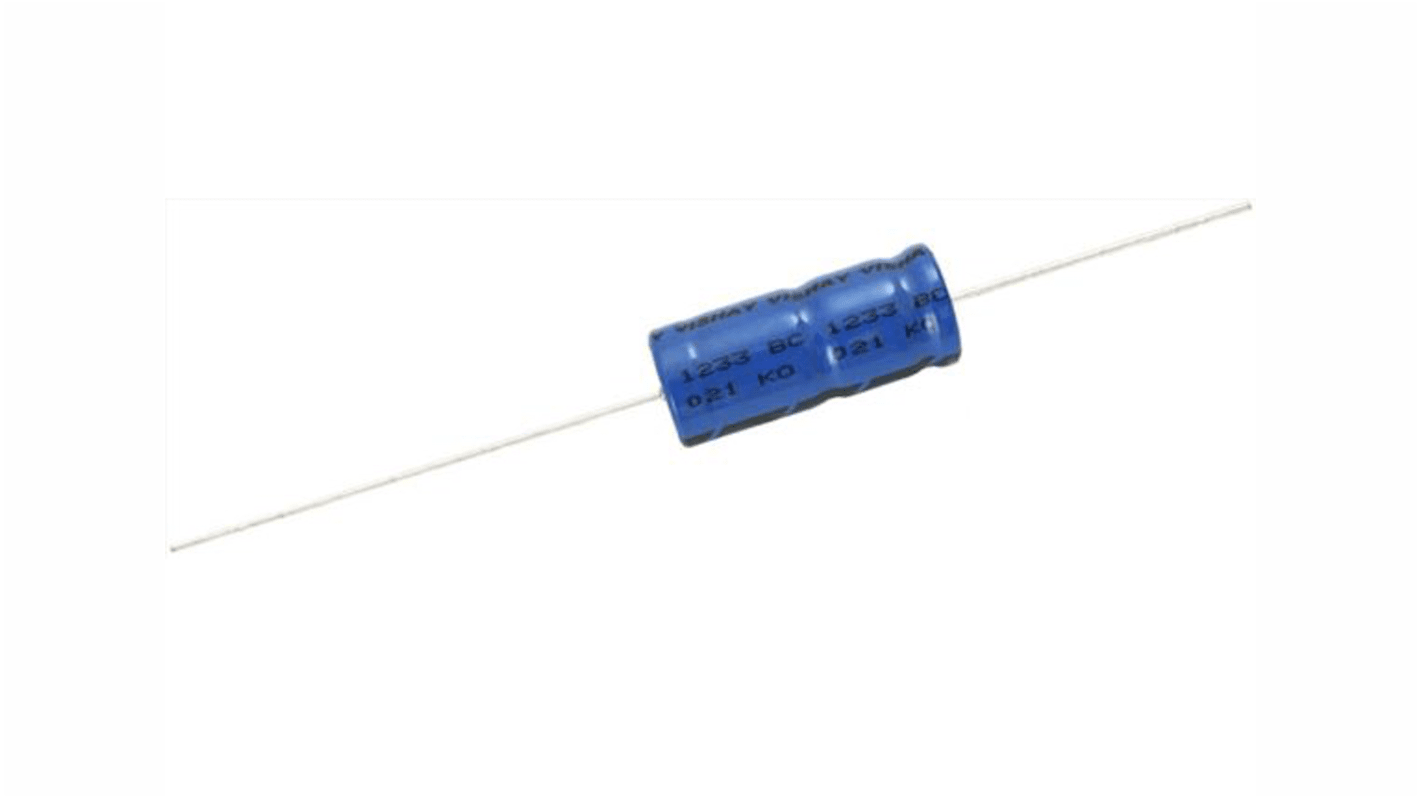

The Vishay Aluminium electrolytic capacitors are built in cylindrical aluminium cases with axial leads. This aluminium electrolytic capacitor has a long useful life and offers a high CV product per unit volume.
Lead free
RoHS compliant
Insulated with blue sleeve
Charge and discharge proof
