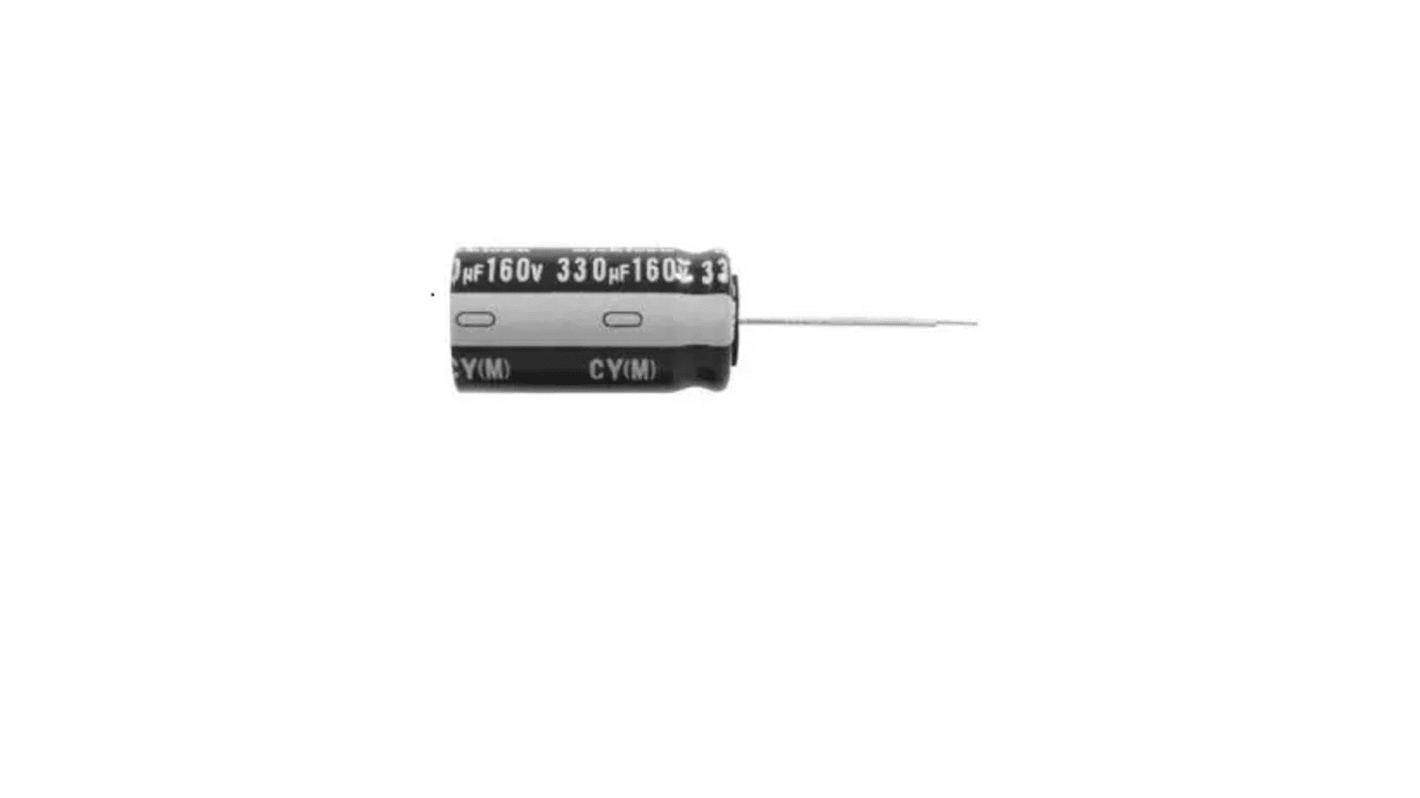

Nichicon 330 μF Capacitor 160V dc, Radial, Through Hole Radial Lead
- RS Stock No.:
- 243-7272
- Mfr. Part No.:
- UCY2C331MHD6TN
- Brand:
- Nichicon
Bulk discount available
Subtotal (1 tape of 5 units)*
£12.21
(exc. VAT)
£14.65
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 15 April 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 5 - 45 | £2.442 | £12.21 |
| 50 - 95 | £2.196 | £10.98 |
| 100 + | £1.682 | £8.41 |
*price indicative
- RS Stock No.:
- 243-7272
- Mfr. Part No.:
- UCY2C331MHD6TN
- Brand:
- Nichicon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nichicon | |
| Capacitance | 330μF | |
| Product Type | Capacitor | |
| Voltage | 160V dc | |
| Construction | 10 | |
| Mount Type | Radial, Through Hole | |
| Packaging | Tape | |
| Polarity | Polar | |
| Length | 25mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 18mm | |
| Termination Type | Radial Lead | |
| Capacitor Ripple Current | 1.4A | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | RoHS | |
| Lifetime | 12000 h | |
| Lead Pitch | 7.5mm | |
| Leakage Current | 2.2mA | |
| Automotive Standard | AEC-Q200 | |
| Series | UCY | |
| Tolerance | ±20 % | |
| Dissipation Factor | 0.2% | |
| Select all | ||
|---|---|---|
Brand Nichicon | ||
Capacitance 330μF | ||
Product Type Capacitor | ||
Voltage 160V dc | ||
Construction 10 | ||
Mount Type Radial, Through Hole | ||
Packaging Tape | ||
Polarity Polar | ||
Length 25mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 18mm | ||
Termination Type Radial Lead | ||
Capacitor Ripple Current 1.4A | ||
Pin Count 2 | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals RoHS | ||
Lifetime 12000 h | ||
Lead Pitch 7.5mm | ||
Leakage Current 2.2mA | ||
Automotive Standard AEC-Q200 | ||
Series UCY | ||
Tolerance ±20 % | ||
Dissipation Factor 0.2% | ||
The Nichicon's UCY series is miniature size aluminium capacitor have high ripple current and high reliability.
High ripple current and Long Life product withstanding load life of 10000 to 12000 hours at +105°C
Suited for power supply and ballast application
Compliant to the RoHS directive (2011/65/EU,(EU) 2015/863)
AEC-Q200 compliant
