Nichicon 10 μF Capacitor 35V dc, Surface Surface Mount - UWT1V100MCL1GB
- RS Stock No.:
- 222-9643
- Mfr. Part No.:
- UWT1V100MCL1GB
- Brand:
- Nichicon
Subtotal (1 reel of 5000 units)*
£250.00
(exc. VAT)
£300.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 60,000 unit(s) shipping from 12 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 5000 + | £0.05 | £250.00 |
*price indicative
- RS Stock No.:
- 222-9643
- Mfr. Part No.:
- UWT1V100MCL1GB
- Brand:
- Nichicon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nichicon | |
| Capacitance | 10μF | |
| Product Type | Capacitor | |
| Voltage | 35V dc | |
| Construction | Cylindrical Can | |
| Mount Type | Surface | |
| Packaging | Carrier Tape | |
| Height | 5.4mm | |
| Polarity | Bipolar | |
| Length | 5.4mm | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 5mm | |
| Termination Type | Surface Mount | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | 863, AEC-Q200, EU, EU 2015, RoHS 2011 | |
| Lifetime | 1000 h | |
| Automotive Standard | AEC-Q200 | |
| Ripple Current | 25mA | |
| Leakage Current | 3μA | |
| Series | WT | |
| Tolerance ± | 20% | |
| Select all | ||
|---|---|---|
Brand Nichicon | ||
Capacitance 10μF | ||
Product Type Capacitor | ||
Voltage 35V dc | ||
Construction Cylindrical Can | ||
Mount Type Surface | ||
Packaging Carrier Tape | ||
Height 5.4mm | ||
Polarity Bipolar | ||
Length 5.4mm | ||
Minimum Operating Temperature -55°C | ||
Diameter 5mm | ||
Termination Type Surface Mount | ||
Pin Count 2 | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals 863, AEC-Q200, EU, EU 2015, RoHS 2011 | ||
Lifetime 1000 h | ||
Automotive Standard AEC-Q200 | ||
Ripple Current 25mA | ||
Leakage Current 3μA | ||
Series WT | ||
Tolerance ± 20% | ||

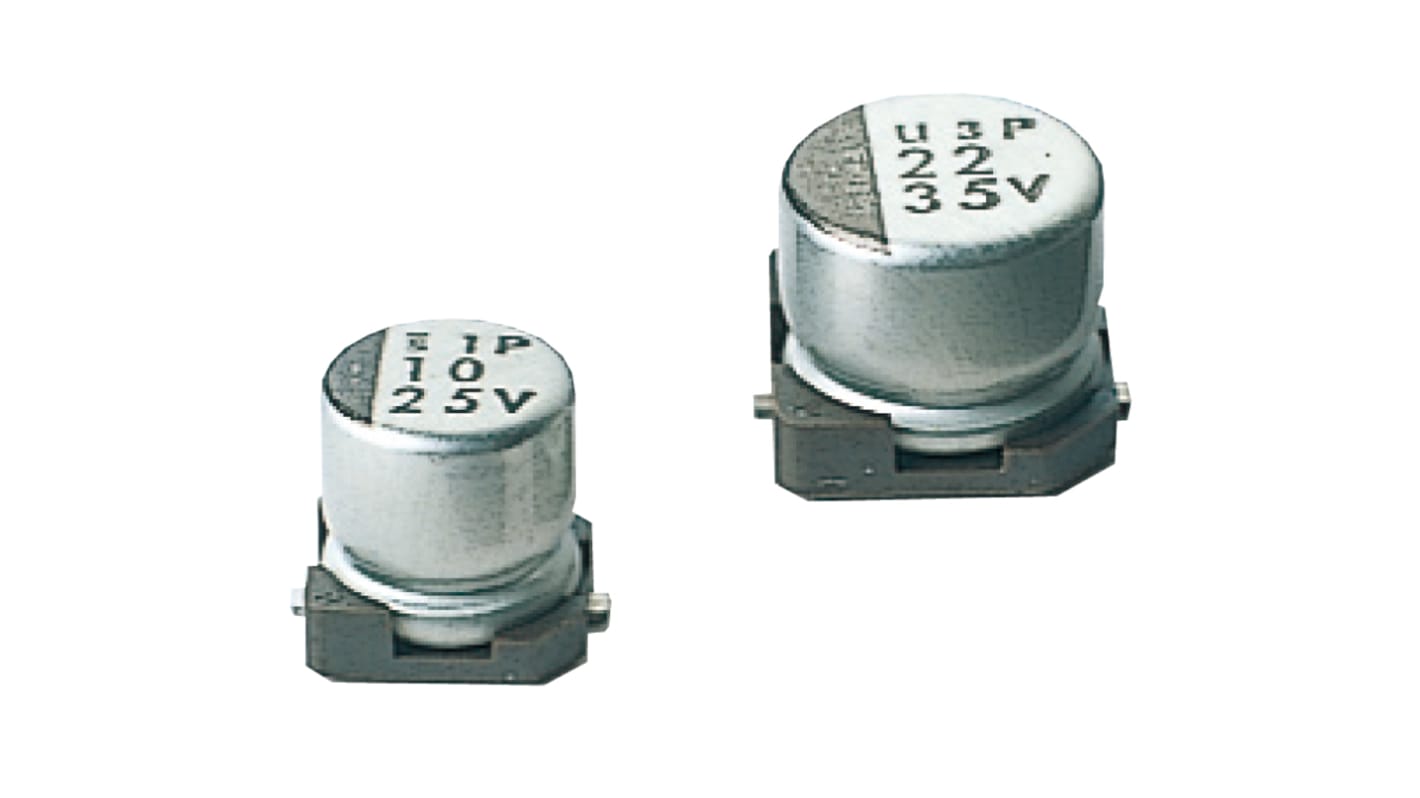

The Nichicon UWT series is a Chip type aluminium electrolytic capacitor which have rated capacitance of 10 μF with capacitance tolerance of ± 20%. It is applicable to automatic mounting machine fed with carrier tape.
Compliant to the RoHS directive.
AEC-Q200 compliant.
Applicable to automatic mounting machine fed with carrier tape.
