Nichicon 470μF Aluminium Electrolytic Capacitor 35V dc, Surface Mount - UCV1V471MNL1GS
- RS Stock No.:
- 222-9591
- Mfr. Part No.:
- UCV1V471MNL1GS
- Brand:
- Nichicon
Subtotal (1 reel of 2000 units)*
£880.00
(exc. VAT)
£1,060.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 2,000 unit(s) shipping from 08 December 2025
- Plus 2,000 unit(s) shipping from 26 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2000 + | £0.44 | £880.00 |
*price indicative
- RS Stock No.:
- 222-9591
- Mfr. Part No.:
- UCV1V471MNL1GS
- Brand:
- Nichicon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nichicon | |
| Capacitance | 470µF | |
| Voltage | 35V dc | |
| Mounting Type | Surface Mount | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 8(Dia.) x 10mm | |
| Length | 10mm | |
| Diameter | 8mm | |
| Maximum Operating Temperature | +105°C | |
Select all | ||
|---|---|---|
Brand Nichicon | ||
Capacitance 470µF | ||
Voltage 35V dc | ||
Mounting Type Surface Mount | ||
Technology Aluminium Electrolytic | ||
Dimensions 8(Dia.) x 10mm | ||
Length 10mm | ||
Diameter 8mm | ||
Maximum Operating Temperature +105°C | ||

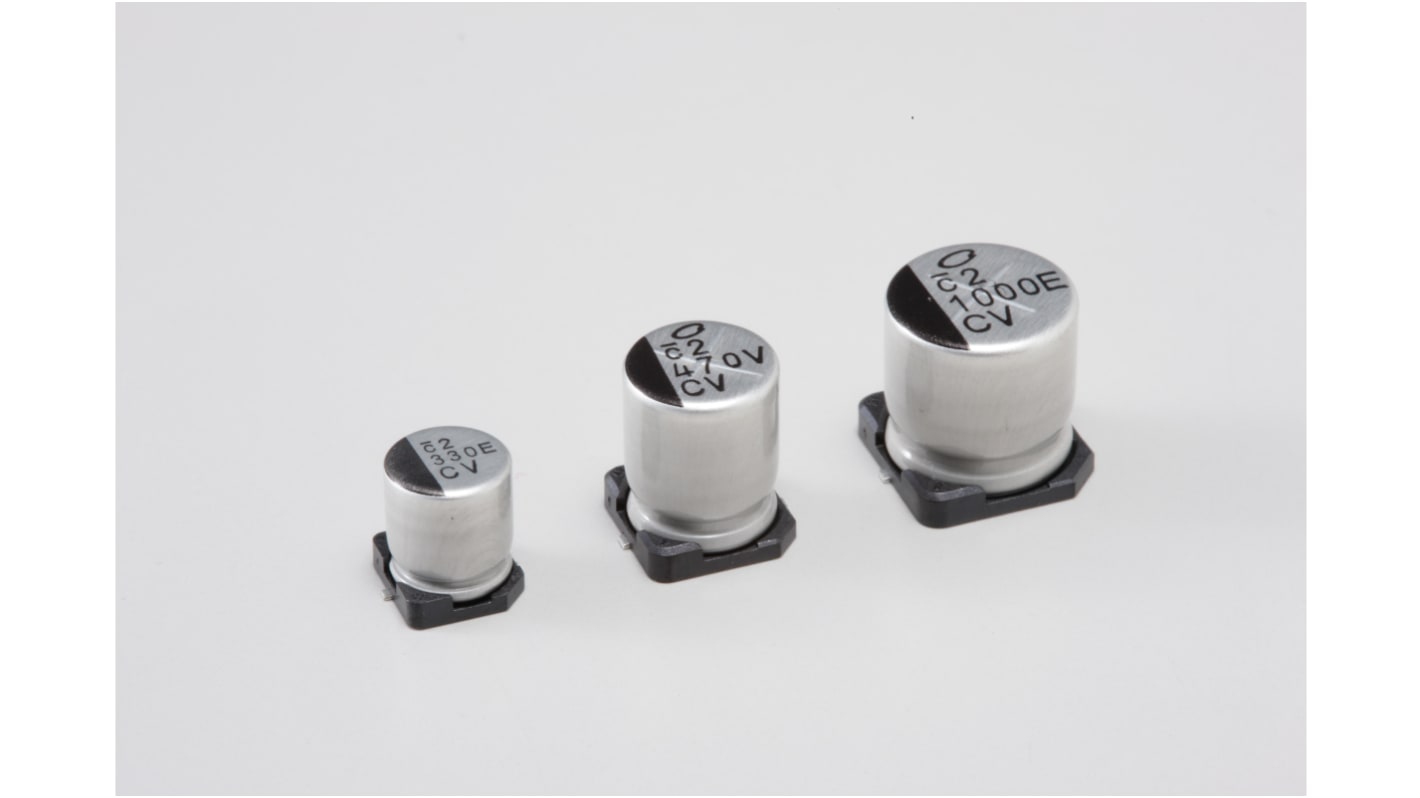

The Nichicon UCV series is a Chip type aluminium electrolytic capacitor which has rated capacitance of 470 μF with capacitance tolerance of ± 20%. It is also applicable to automatic mounting machine fed with carrier tape.
Compliant to the RoHS directive.
AEC-Q200 compliant.
AEC-Q200 compliant.
