Panasonic 47 μF Capacitor 35V dc, Surface Mount Solder 9009
- RS Stock No.:
- 215-8458
- Mfr. Part No.:
- EEEFH1V470XL
- Brand:
- Panasonic
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 215-8458
- Mfr. Part No.:
- EEEFH1V470XL
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Product Type | Capacitor | |
| Capacitance | 47μF | |
| Voltage | 35V dc | |
| Mount Type | Surface Mount | |
| Packaging | Carrier Tape | |
| Height | 7.8mm | |
| Polarity | Polar | |
| Length | 7.7mm | |
| Package/Case | 9009 | |
| Minimum Operating Temperature | 105°C | |
| Diameter | 6.3mm | |
| Termination Type | Solder | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | RoHS | |
| Lifetime | 7000 h | |
| Equivalent Series Resistance ESR | 0.45Ω | |
| Automotive Standard | AEC-Q200 | |
| Leakage Current | 3μA | |
| Series | FH | |
| Ripple Current | 300mA | |
| Tolerance ± | 20% | |
| Dissipation Factor | 0.16% | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Product Type Capacitor | ||
Capacitance 47μF | ||
Voltage 35V dc | ||
Mount Type Surface Mount | ||
Packaging Carrier Tape | ||
Height 7.8mm | ||
Polarity Polar | ||
Length 7.7mm | ||
Package/Case 9009 | ||
Minimum Operating Temperature 105°C | ||
Diameter 6.3mm | ||
Termination Type Solder | ||
Pin Count 2 | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals RoHS | ||
Lifetime 7000 h | ||
Equivalent Series Resistance ESR 0.45Ω | ||
Automotive Standard AEC-Q200 | ||
Leakage Current 3μA | ||
Series FH | ||
Ripple Current 300mA | ||
Tolerance ± 20% | ||
Dissipation Factor 0.16% | ||

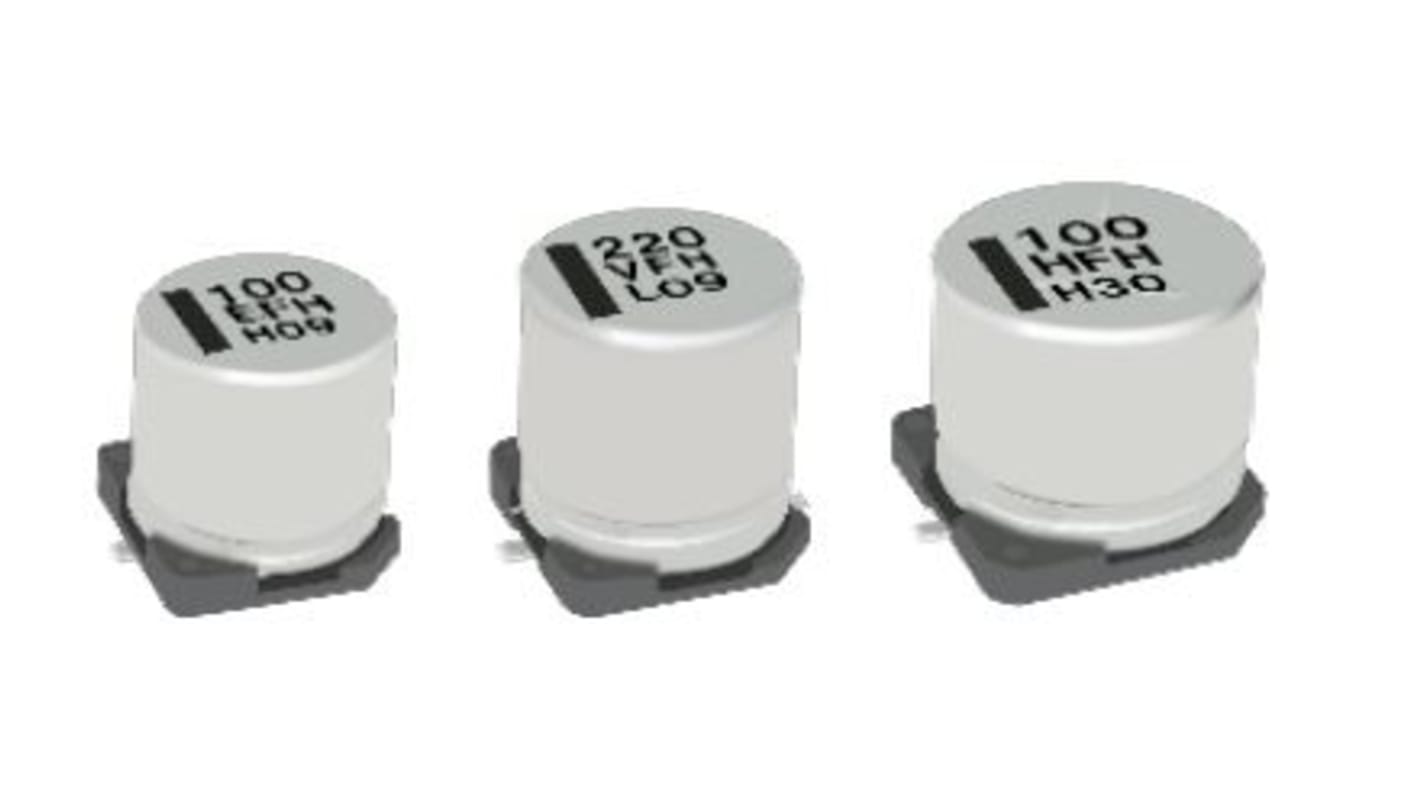

The Panasonic aluminium electrolytic capacitors has vertical mounting style. It has very high endurance.
It is RoHS complaint
Halogen free
