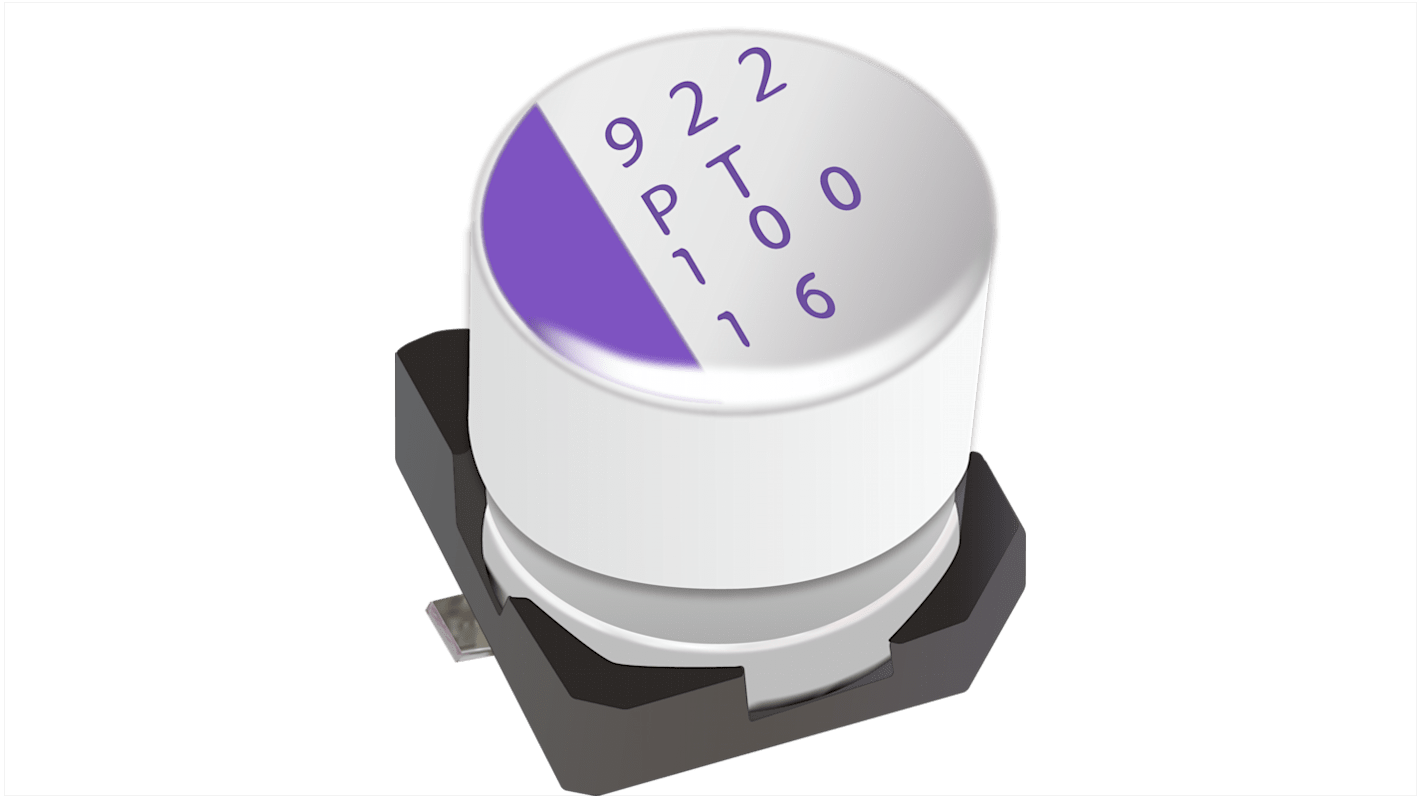

Panasonic 820μF Conductive Polymer Aluminium Solid Capacitor 6.3V dc, Surface Mount - 6SVPT820M
- RS Stock No.:
- 211-2011
- Mfr. Part No.:
- 6SVPT820M
- Brand:
- Panasonic
Subtotal (1 reel of 400 units)*
£291.20
(exc. VAT)
£349.60
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 400 + | £0.728 | £291.20 |
*price indicative
- RS Stock No.:
- 211-2011
- Mfr. Part No.:
- 6SVPT820M
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 820µF | |
| Voltage | 6.3V dc | |
| Mounting Type | Surface Mount | |
| Technology | Conductive Polymer Aluminium | |
| Dimensions | 8x11.9mm | |
| Length | 11.9mm | |
| Diameter | 8mm | |
| Maximum Operating Temperature | +105°C | |
| Polarised | Polar | |
| Tolerance | ±20% | |
| Series | SVPT | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 820µF | ||
Voltage 6.3V dc | ||
Mounting Type Surface Mount | ||
Technology Conductive Polymer Aluminium | ||
Dimensions 8x11.9mm | ||
Length 11.9mm | ||
Diameter 8mm | ||
Maximum Operating Temperature +105°C | ||
Polarised Polar | ||
Tolerance ±20% | ||
Series SVPT | ||
- COO (Country of Origin):
- JP
The Panasonic Conductive Polymer Aluminium Solid Capacitors works with Rated voltage range 2.5 V to 50 V and low erythrocyte sedimentation rate of 10 mΩ max. It has a large capacitance of 2700μF maximum.
–55°C to +105°C operating temperature
±20% capacitance tolerance
±20% capacitance tolerance
