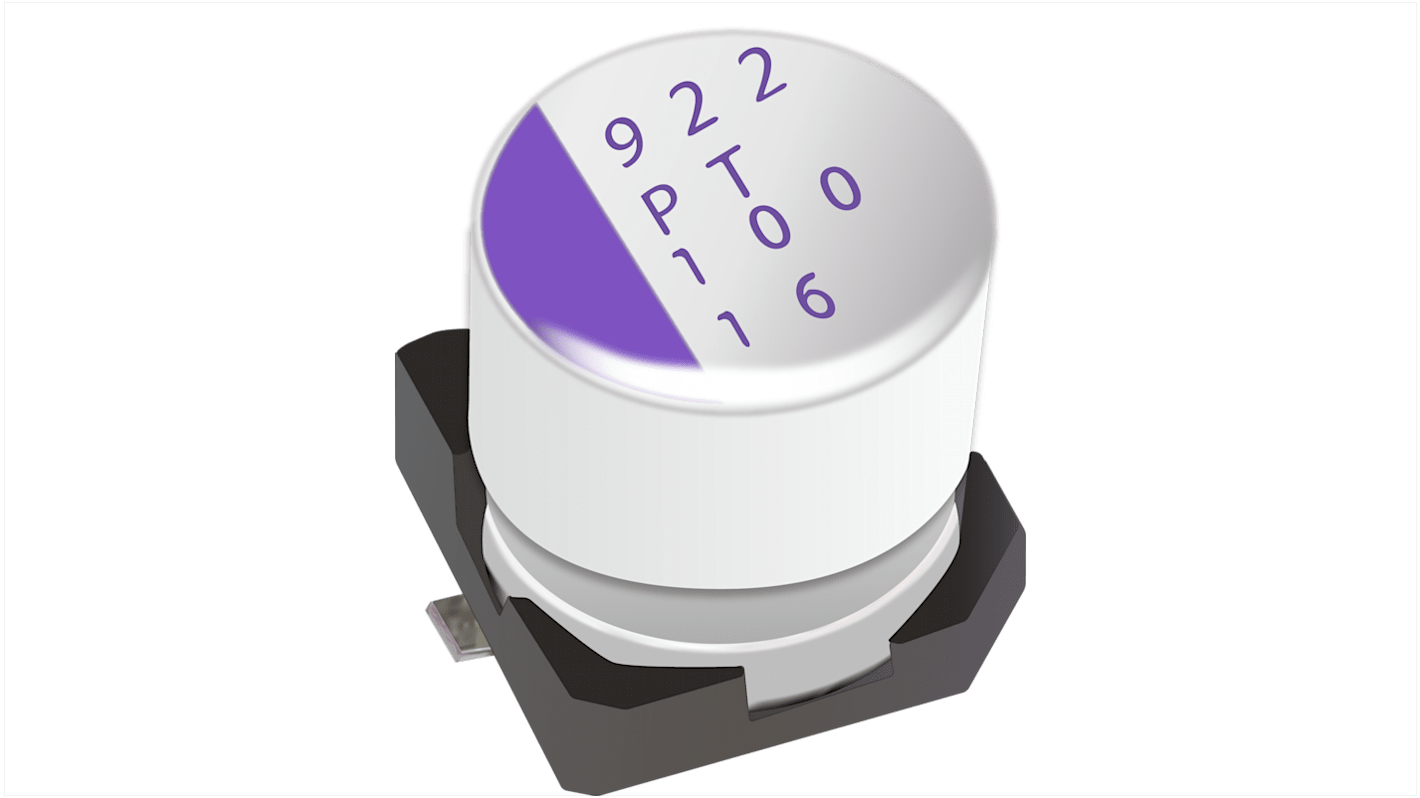

Panasonic 2700 μF Solid Capacitor 6.3V dc, Surface Mount - 2R5SVPT2700M 400
- RS Stock No.:
- 211-1978
- Mfr. Part No.:
- 2R5SVPT2700M
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 unit)*
£1.76
(exc. VAT)
£2.11
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 125 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £1.76 |
| 10 - 49 | £1.49 |
| 50 - 99 | £1.35 |
| 100 - 199 | £1.34 |
| 200 + | £1.32 |
*price indicative
- RS Stock No.:
- 211-1978
- Mfr. Part No.:
- 2R5SVPT2700M
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 2700μF | |
| Product Type | Solid Capacitor | |
| Voltage | 6.3V dc | |
| Mount Type | Surface Mount | |
| Packaging | Carrier Tape | |
| Polarity | Polar | |
| Height | 10.3mm | |
| Length | 12.6mm | |
| Package/Case | 400 | |
| Minimum Operating Temperature | 105°C | |
| Diameter | 10mm | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 105°C | |
| Lifetime | 20000 h | |
| Standards/Approvals | RoHS | |
| Equivalent Series Resistance ESR | 12mΩ | |
| Ripple Current | 5.1A | |
| Series | SVPT | |
| Tolerance ± | 20% | |
| Automotive Standard | No | |
| Leakage Current | 1.4mA | |
| Dissipation Factor | 0.12% | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 2700μF | ||
Product Type Solid Capacitor | ||
Voltage 6.3V dc | ||
Mount Type Surface Mount | ||
Packaging Carrier Tape | ||
Polarity Polar | ||
Height 10.3mm | ||
Length 12.6mm | ||
Package/Case 400 | ||
Minimum Operating Temperature 105°C | ||
Diameter 10mm | ||
Pin Count 2 | ||
Maximum Operating Temperature 105°C | ||
Lifetime 20000 h | ||
Standards/Approvals RoHS | ||
Equivalent Series Resistance ESR 12mΩ | ||
Ripple Current 5.1A | ||
Series SVPT | ||
Tolerance ± 20% | ||
Automotive Standard No | ||
Leakage Current 1.4mA | ||
Dissipation Factor 0.12% | ||
The Panasonic Conductive Polymer Aluminium Solid Capacitors works with Rated voltage range 2.5 V to 50 V and low erythrocyte sedimentation rate of 10 mΩ max. It has a large capacitance of 2700μF maximum.
–55°C to +105°C operating temperature
±20% capacitance tolerance
