Panasonic 68μF Hybrid Aluminium Electrolytic Capacitor 63V dc, Radial, Through Hole - EEHAZT1J680B
- RS Stock No.:
- 210-5782
- Mfr. Part No.:
- EEHAZT1J680B
- Brand:
- Panasonic
500 In stock - FREE next working day delivery available
Price Each (In a Box of 500)
£0.652
(exc. VAT)
£0.782
(inc. VAT)
Units | Per unit | Per Box* |
|---|---|---|
| 500 + | £0.652 | £326.00 |
*price indicative
- RS Stock No.:
- 210-5782
- Mfr. Part No.:
- EEHAZT1J680B
- Brand:
- Panasonic
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
The Panasonic ZT series conductive polymer hybrid aluminium electrolytic capacitor has ±20 % tolerance and used 63 V voltage. It has 68μF of capacitance which size code is G and has and ultra low ESR between 16 mΩ and 32 mΩ.
Endurance 4000 h at 125 ℃ (High ripple current)

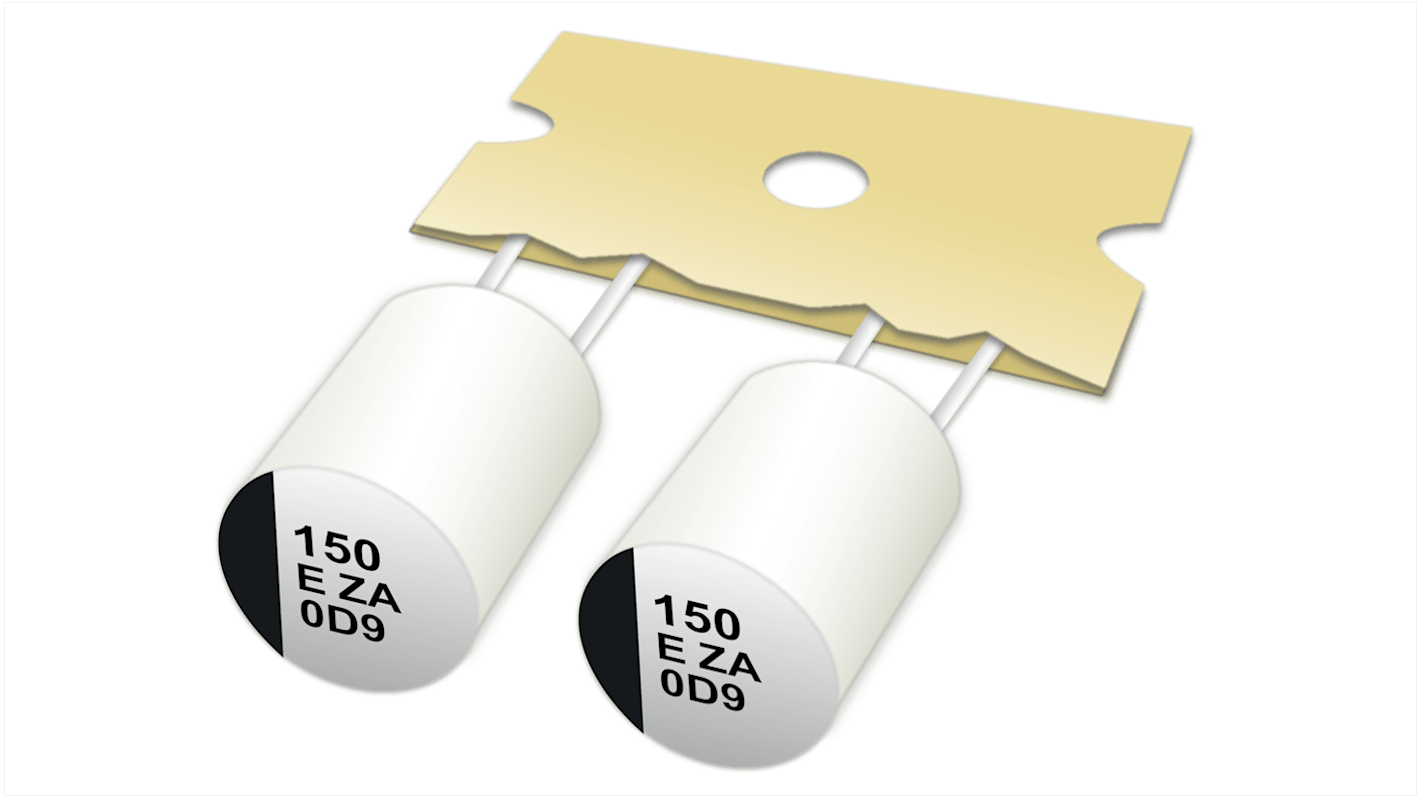

Taping products for automatic insertion
AEC-Q200 compliant
Taping products for automatic insertion
AEC-Q200 compliant
Specifications
Attribute | Value |
|---|---|
| Capacitance | 68µF |
| Voltage | 63V dc |
| Mounting Type | Radial, Through Hole |
| Technology | Hybrid |
| Dimensions | 10 (Dia.) x 9.5 x 0.6mm |
| Length | 9.5mm |
| Diameter | 10mm |
| Maximum Operating Temperature | +125°C |
| Lead Pitch | 5mm |
| Polarised | Polar |
| Tolerance | ±20% |
| Automotive Standard | AEC-Q200 |
| Series | ZT-A |
