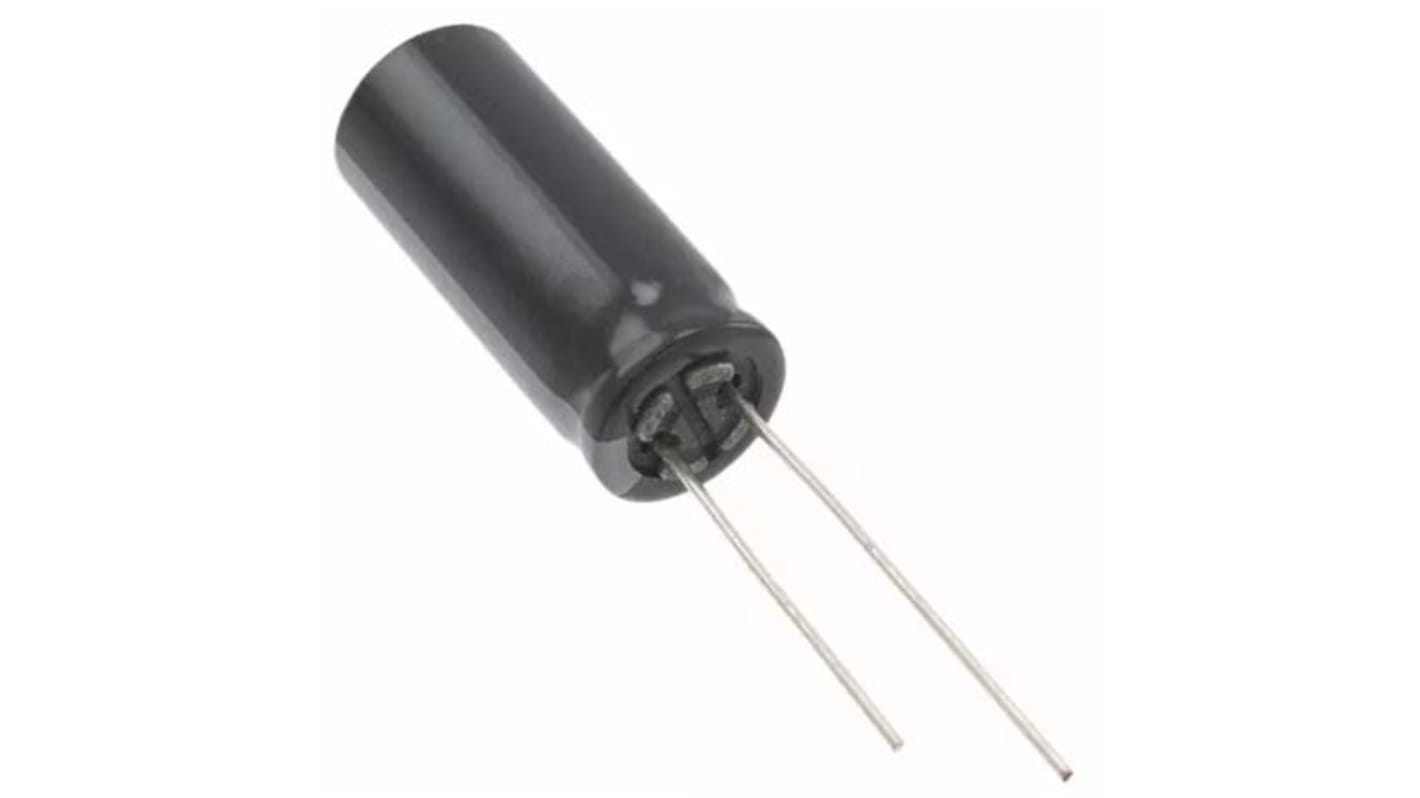

Panasonic 1000μF Aluminium Electrolytic Capacitor 50V dc, Radial, Through Hole - EEUFS1H102L
- RS Stock No.:
- 145-8478
- Mfr. Part No.:
- EEUFS1H102L
- Brand:
- Panasonic
125 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 5)
£1.32
(exc. VAT)
£1.58
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 20 | £1.32 | £6.60 |
| 25 - 45 | £1.24 | £6.20 |
| 50 - 95 | £1.162 | £5.81 |
| 100 - 245 | £1.082 | £5.41 |
| 250 + | £0.982 | £4.91 |
| *price indicative | ||
- RS Stock No.:
- 145-8478
- Mfr. Part No.:
- EEUFS1H102L
- Brand:
- Panasonic
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
Low ESR, Miniaturized (1 size smaller than series FR)
Endurance : 105 °C 5000 h to 10000 h
● RoHS compliant
Robust and durable materials used throughout
Easy to install and maintain - integral isolators & flexible connections provided
Endurance : 105 °C 5000 h to 10000 h
● RoHS compliant
Robust and durable materials used throughout
Easy to install and maintain - integral isolators & flexible connections provided
Specifications
Attribute | Value |
|---|---|
| Capacitance | 1000µF |
| Voltage | 50V dc |
| Mounting Type | Radial, Through Hole |
| Technology | Aluminium Electrolytic |
| Dimensions | 12.5 (Dia.) x 35mm |
| Height | 35mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 12.5mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 10000h |
| Lead Pitch | 5mm |
| Tolerance | ±20% |
| Polarised | Polar |
| Leakage Current | ≤0.01 CV μA |
| Series | FS |
| Ripple Current | 3270mArms |
| Dissipation Factor | 0.1% |
