RS PRO 250 W AC/DC Adapter AC/DC Adapter 24 V dc Output, 3.3 A

RS Stock No.:: 255-2118
Brand:: RS PRO

RS PRO 250 W AC/DC Adapter AC/DC Adapter 24 V dc Output, 3.3 A

Bulk discount available

Subtotal (1 unit)*

£186.20

(exc. VAT)

£223.44

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

13 unit(s) ready to ship
Plus 1 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£186.20
5 - 9	£180.62
10 - 24	£175.04
25 - 49	£169.45
50 +	£163.86

*price indicative

RS Stock No.:: 255-2118
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Sub Type	AC/DC Adapter
	Product Type	AC/DC Adapter
	Output Voltage	24 V dc
	Output Connector Type	6-Pin Molex Connector
	Power	250W
	Cable Length	1200mm
	Number of Outputs	1
	Input Connector Type	C14
	Adapter Current	3.3A
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	40°C
	Depth	43.5mm
	Length	204mm
	Width	94 mm
	Standards/Approvals	IEC/EN/UL62368-1, AS/NZS 62368.1. ANSI/AAMI ES60601-1:2012
	Maximum Input Voltage	264V ac
	Efficiency	79%
	Energy Efficiency Level	VI
	Minimum Input Voltage	240V

	Select all
	Brand RS PRO
	Sub Type AC/DC Adapter
	Product Type AC/DC Adapter
	Output Voltage 24 V dc
	Output Connector Type 6-Pin Molex Connector
	Power 250W
	Cable Length 1200mm
	Number of Outputs 1
	Input Connector Type C14
	Adapter Current 3.3A
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 40°C
	Depth 43.5mm
	Length 204mm
	Width 94 mm
	Standards/Approvals IEC/EN/UL62368-1, AS/NZS 62368.1. ANSI/AAMI ES60601-1:2012
	Maximum Input Voltage 264V ac
	Efficiency 79%
	Energy Efficiency Level VI
	Minimum Input Voltage 240V

COO (Country of Origin):: CN

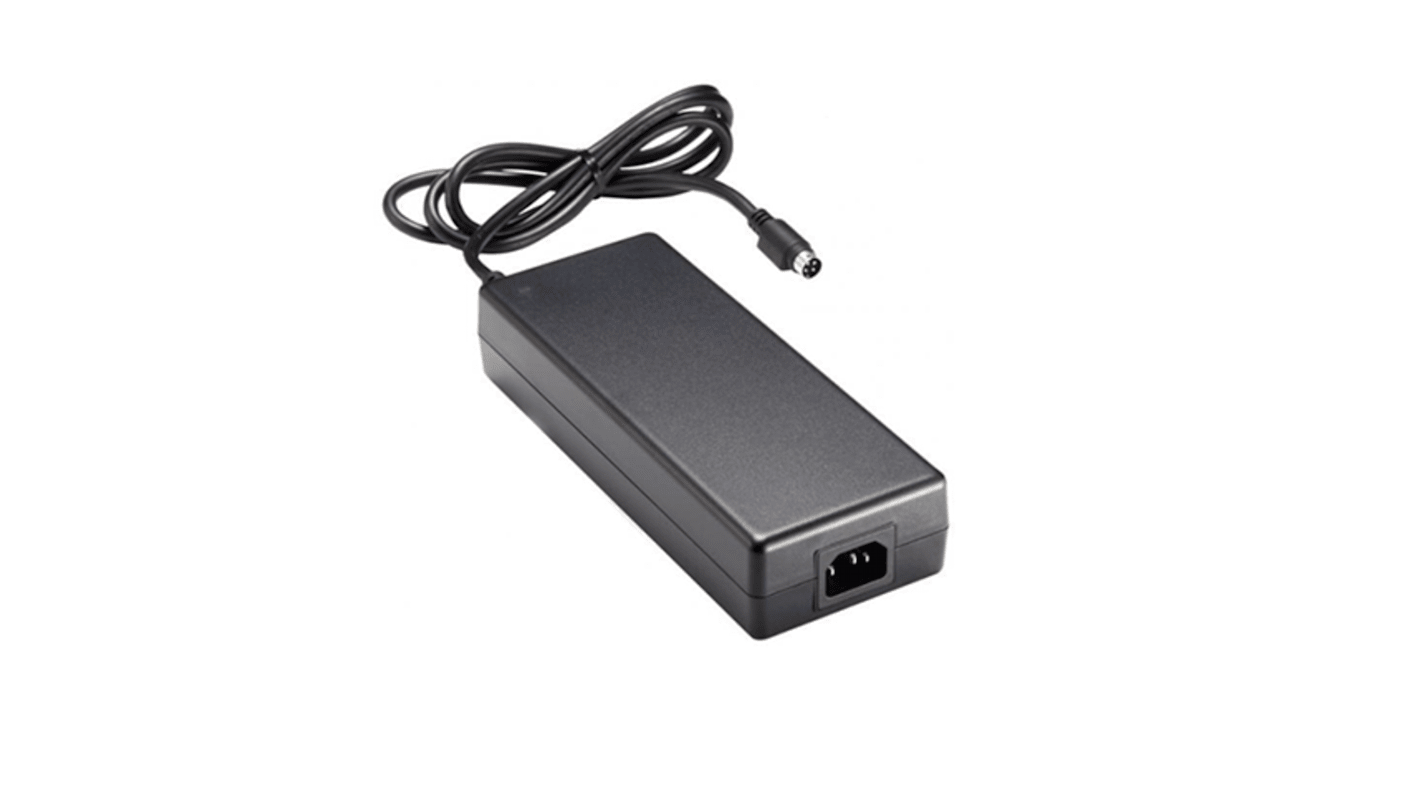

RS PRO Desktop Power Supply – 250 W

Don't settle for sub-par power supplies! Choose RS PRO's high-quality AC/DC adapters for a secure and reliable source of power. With 250 W continuous output and switch-mode technology, your devices will stay powered even when you need to upgrade or replace the desktop power supply. Plus, with a 6 -pin molex connector and generous cable length, you'll be able to use your adapter in different locations. Get the power you need now with RS PRO's AC/DC adapters.

Why Would You Need an RS PRO Desktop Power Supply?

Our power supplies are made with high-quality components and offer excellent protection and services. These devices are perfect as a main power source in desktop applications or as a secondary backup power supply that you can store away in your carry case until it's required.

Features & Benefits

Power Brick Adapter

Cable Length: 1200 mm

6 Pin Molex Connector

C14 Input connector

Universal Input 100∼240VAC 50/60Hz

Over Temperature Protection

Level VI efficiency

Suitable for usage at I.T.E, industrial controller, medical

Why RS PRO?

RS PRO offers a selection of AC/DC adapters with variants in output voltage, output current and input connectors. Browse our offer using the improved filters to find your ideal solution.

Note

Power leads not included in the offer. Please see the essential accessories for a selection of compatible leads.
