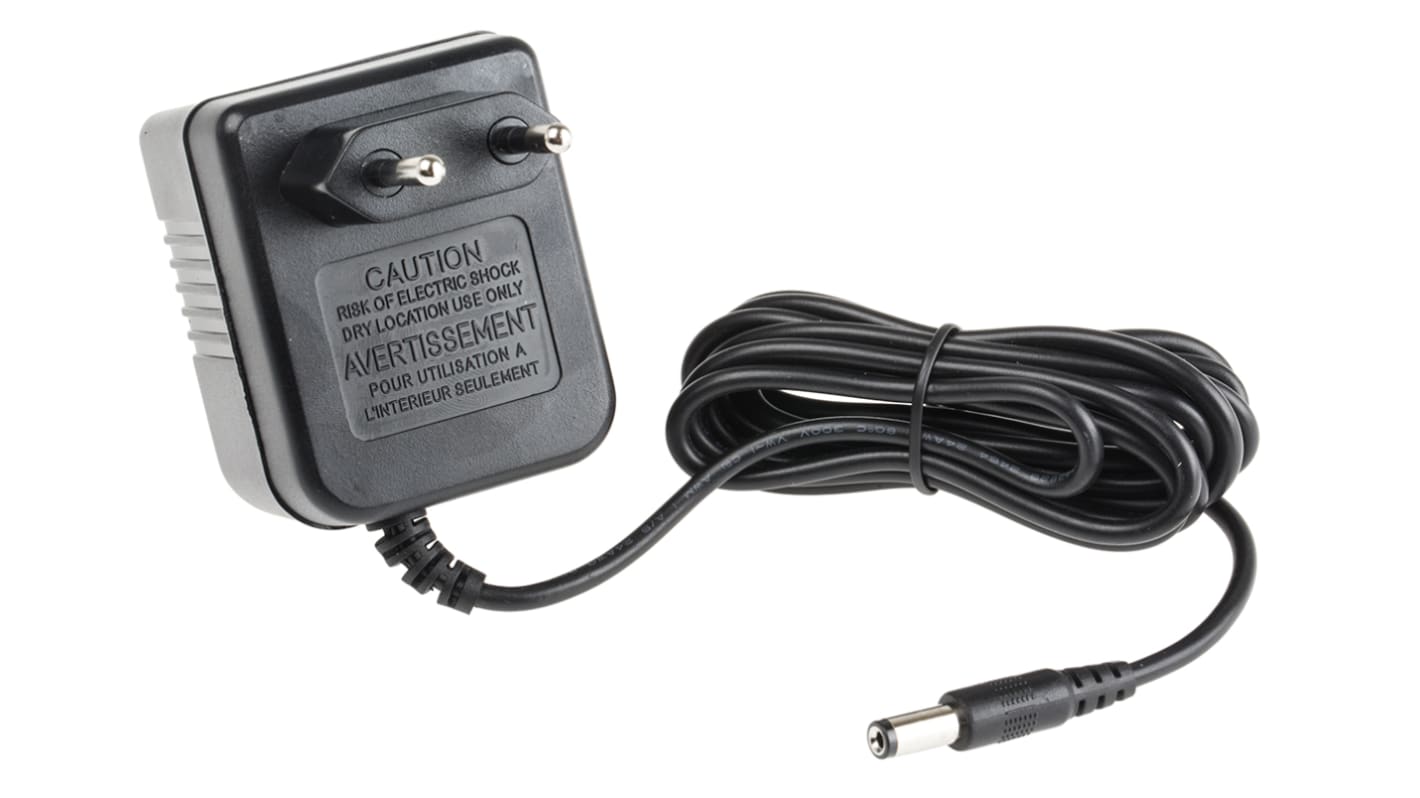

RS PRO 6W Plug-In AC/DC Adapter 9V dc Output, 600mA Output
- RS Stock No.:
- 139-1782
- Brand:
- RS PRO
86 In stock - FREE next working day delivery available
14 available from Europe for delivery within 1 working day(s).
Added
Price Each
£11.09
(exc. VAT)
£13.31
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £11.09 |
| 5 - 9 | £10.76 |
| 10 - 24 | £10.42 |
| 25 - 49 | £10.09 |
| 50 + | £9.76 |
- RS Stock No.:
- 139-1782
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
RS Pro 6 W Linear power supply
Very low-ripple and noise
Very good regulation, low-disturbance noise, but heavier, bigger size, than switching power supply
Used for antenna, fan, radio, video, toy, aquarium, desk lamp, LED lamp
Very good regulation, low-disturbance noise, but heavier, bigger size, than switching power supply
Used for antenna, fan, radio, video, toy, aquarium, desk lamp, LED lamp
Lightweight and convenient plug in
IP20 rating
High-reliability
LED light indicator
Low-temperature
High-efficiency: consumption, meets US Energy Star, CEC, AS, MEPS, EUP and ERP
IP20 rating
High-reliability
LED light indicator
Low-temperature
High-efficiency: consumption, meets US Energy Star, CEC, AS, MEPS, EUP and ERP
Power: 6W
Input voltage: 230-240VAC 50HZ 110mA
Input current: 110mA
Output voltage: 9VDC
Output current: 600mA
Input voltage: 230-240VAC 50HZ 110mA
Input current: 110mA
Output voltage: 9VDC
Output current: 600mA
No-load input power: 0.3W at 240V AC
Efficiency: CEC IV, ErP I
Efficiency: CEC IV, ErP I
Burn-in: 100% full load, 40°C, 4 hours (minimum)
Leakage current: 0.25mA at 264V AC (maximum)
Leakage current: 0.25mA at 264V AC (maximum)
DC output voltage: 3 to 24V AC (optional)
DC output current: 30 to 1,000mA (maximum)
Output voltage precision: 5%
Ripple and noise: 100mV
Regulation:±1% line, ±5% load
Wire length: 1.5m
DC output current: 30 to 1,000mA (maximum)
Output voltage precision: 5%
Ripple and noise: 100mV
Regulation:±1% line, ±5% load
Wire length: 1.5m
Plug-In Power Supply - RS Pro
Specifications
Attribute | Value |
|---|---|
| Adapter Type | Plug-In Adapter |
| Plug Type | Type C |
| Output Voltage | 9V dc |
| Input Voltage | 230 V ac, 240V ac |
| Output Current | 600mA |
| Maximum Temperature | +40°C |
| Output Connector | 2.1 x 5.5 x 12 mm Centre Positive |
| Input Connector | EU Plug |
| Number of Outputs | 1 |
| Power Rating | 6W |
| Regulated/Unregulated | Unregulated |
| Cable Length | 1.8m |
| Medical Approved | No |
| MTBF | 50k |
| Width | 51mm |
| Minimum Temperature | -20°C |
| Depth | 42mm |
| Type | AC/DC Adapter |
| Energy Efficiency Level | IV |
| Length | 62mm |
