MEAN WELL AC/DC Adapter Interchangeable 264V ac Output 660 mA, 9 V dc
- RS Stock No.:
- 197-1173
- Distrelec Article No.:
- 302-29-914
- Mfr. Part No.:
- GEM06I09-P1J
- Brand:
- MEAN WELL
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 197-1173
- Distrelec Article No.:
- 302-29-914
- Mfr. Part No.:
- GEM06I09-P1J
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Product Type | AC/DC Adapter | |
| Plug Type | Interchangeable | |
| Maximum Output Current | 660mA | |
| Cable Length | 1800mm | |
| Overall Length | 25mm | |
| Maximum Operating Temperature | 70°C | |
| Overall Width | 39mm | |
| Standards/Approvals | UL 60950-1, CE, IEC 60950-1 | |
| Maximum Input Voltage | 264V ac | |
| Minimum Output Voltage | 9V dc | |
| Overall Depth | 48.5 mm | |
| Series | GEM06 | |
| Minimum Input Voltage | 80V ac | |
| Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Product Type AC/DC Adapter | ||
Plug Type Interchangeable | ||
Maximum Output Current 660mA | ||
Cable Length 1800mm | ||
Overall Length 25mm | ||
Maximum Operating Temperature 70°C | ||
Overall Width 39mm | ||
Standards/Approvals UL 60950-1, CE, IEC 60950-1 | ||
Maximum Input Voltage 264V ac | ||
Minimum Output Voltage 9V dc | ||
Overall Depth 48.5 mm | ||
Series GEM06 | ||
Minimum Input Voltage 80V ac | ||
- COO (Country of Origin):
- TW

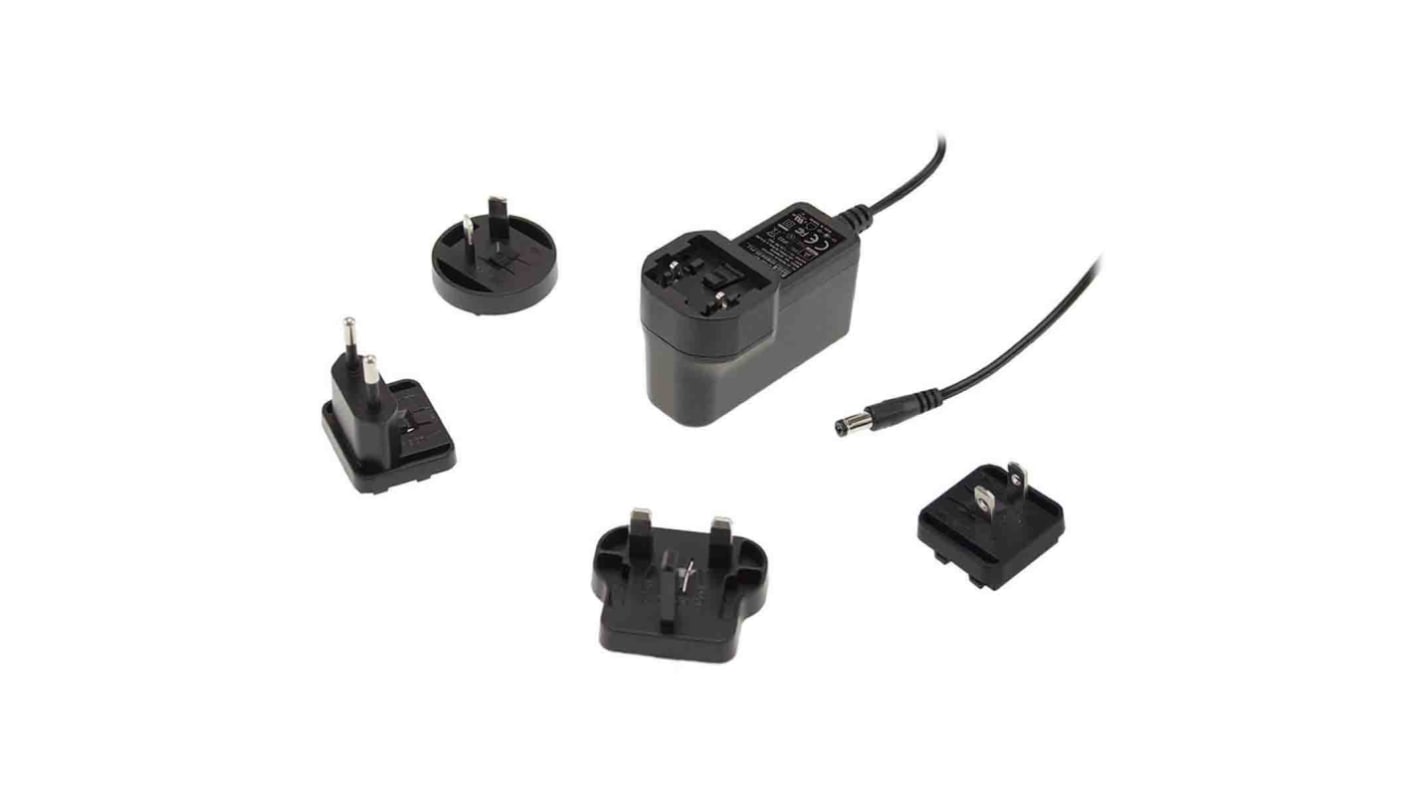

The Mean Well's GEM06I series is highly relaible.6W wall mounted style single-output green medical adaptor series, which is compact and convenient for carry. This product is equipped with an interchangeable AC plug (4 types, including European type, USA type, UK type and Australian type) that makes it very suitable for businessman to use in the major countries around the globe.
Extremely low leakage current
No load power consumption<0.3W
Medical safety approved
Plugs are sold separately
RS Code: 136-1332 - Australian type - AC plug-AU2;RS Code: 136-1333 - U.K type - AC plug-UK2 ;RS Code: 136-1335 - European type - AC plug-EU2;RS Code: 136-1336 - US type - AC plug-US2;RS Code: 178-3440 - Mix four type - AC plug-MIX2
