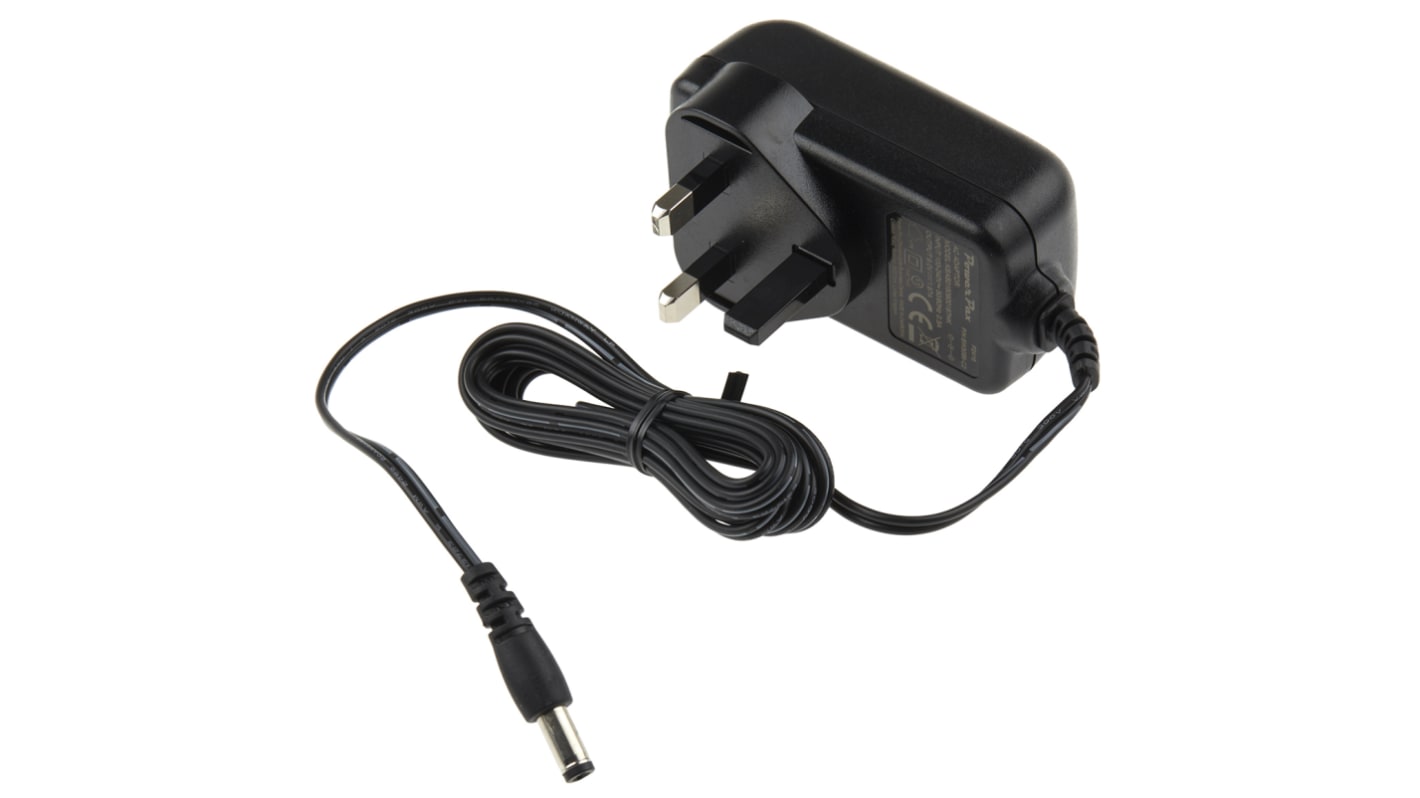

RS PRO 15W Plug-In AC/DC Adapter 9V dc Output, 1.67A Output
- RS Stock No.:
- 175-3320
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£11.86
(exc. VAT)
£14.23
(inc. VAT)
- RS Stock No.:
- 175-3320
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Adapter Type | Plug-In Adapter | |
| Plug Type | Type G | |
| Output Voltage | 9V dc | |
| Input Voltage | 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac | |
| Output Current | 1.67A | |
| Maximum Temperature | +40°C | |
| Output Connector | 2.1 x 5.5 x 12 mm Centre Positive | |
| Input Connector | UK Plug | |
| Number of Outputs | 1 | |
| Power Rating | 15W | |
| Regulated/Unregulated | Regulated | |
| Efficiency | (Minimum) 84.5% | |
| Standards Met | CE Certified, CE-EN 55022, T-LICENSE-BS EN 60950-1 | |
| Length | 85mm | |
| Type | AC/DC Adapter | |
| Load Regulation | ±5% | |
| Minimum Temperature | 0°C | |
| Depth | 32mm | |
| Width | 44mm | |
| Energy Efficiency Level | VI | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Adapter Type Plug-In Adapter | ||
Plug Type Type G | ||
Output Voltage 9V dc | ||
Input Voltage 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac | ||
Output Current 1.67A | ||
Maximum Temperature +40°C | ||
Output Connector 2.1 x 5.5 x 12 mm Centre Positive | ||
Input Connector UK Plug | ||
Number of Outputs 1 | ||
Power Rating 15W | ||
Regulated/Unregulated Regulated | ||
Efficiency (Minimum) 84.5% | ||
Standards Met CE Certified, CE-EN 55022, T-LICENSE-BS EN 60950-1 | ||
Length 85mm | ||
Type AC/DC Adapter | ||
Load Regulation ±5% | ||
Minimum Temperature 0°C | ||
Depth 32mm | ||
Width 44mm | ||
Energy Efficiency Level VI | ||
- COO (Country of Origin):
- CN
RS PRO Plug In Power Supply
The RS PRO AC/DC adapter is a high-quality adapter with an output voltage rating of 9VDC and a current rating of 1.67A. This UK plug-in power supply provides 15W of continuous power in a compact fixed wall plug enclosure. It is suitable for use in many general power applications. It comes with the relevant safety and EMC standards.
Features and Benefits
• Universal input voltages of 100VAC to 240VAC
• Regulated power output of 15W
• DoE level VI efficiency
• Switched mode power supply
• A high-efficiency rating adapter
• Overvoltage and over load protection
• No load power consumption and low leakage current
• Regulated output power
• Operating temperature range between 0°C and 40°C
• 3-pin plug input connector
• 3-year warranty
• Regulated power output of 15W
• DoE level VI efficiency
• Switched mode power supply
• A high-efficiency rating adapter
• Overvoltage and over load protection
• No load power consumption and low leakage current
• Regulated output power
• Operating temperature range between 0°C and 40°C
• 3-pin plug input connector
• 3-year warranty
Applications
• IT
• Networking and peripherals equipment
• Gaming machines
• Point of sale
• Networking and peripherals equipment
• Gaming machines
• Point of sale
Certifications
• CE Approved
