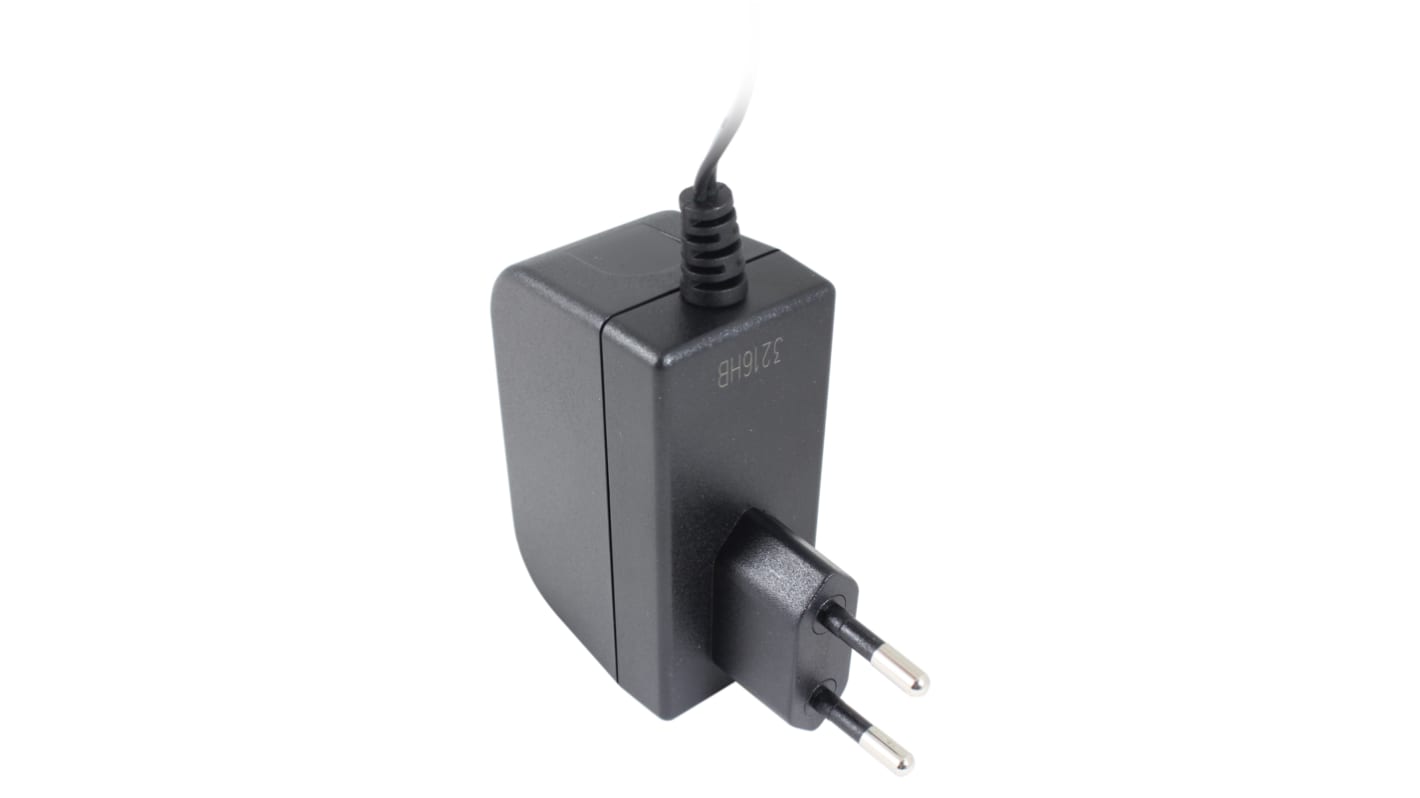

RS PRO 15W Plug-In AC/DC Adapter 24V dc Output, 620mA Output
- RS Stock No.:
- 175-3318
- Distrelec Article No.:
- 304-18-138
- Brand:
- RS PRO
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 175-3318
- Distrelec Article No.:
- 304-18-138
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Adapter Type | Plug-In Adapter | |
Plug Type | Type C | |
Output Voltage | 24V dc | |
Input Voltage | 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac | |
Output Current | 620mA | |
Maximum Temperature | +40°C | |
Output Connector | 2.1 x 5.5 x 12 mm Centre Positive | |
Input Connector | EU Plug | |
Number of Outputs | 1 | |
Power Rating | 15W | |
Regulated/Unregulated | Regulated | |
Standards Met | CE, CE(EN55022), T-LICENSE(BS EN60950-1) | |
Efficiency | 80.59% | |
MTBF | 50000h | |
Depth | 84.4mm | |
Minimum Temperature | 0°C | |
Width | 50.9mm | |
Energy Efficiency Level | VI | |
Type | AC/DC Adapter | |
Load Regulation | ±2% | |
Length | 74.5mm | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Adapter Type Plug-In Adapter | ||
Plug Type Type C | ||
Output Voltage 24V dc | ||
Input Voltage 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac | ||
Output Current 620mA | ||
Maximum Temperature +40°C | ||
Output Connector 2.1 x 5.5 x 12 mm Centre Positive | ||
Input Connector EU Plug | ||
Number of Outputs 1 | ||
Power Rating 15W | ||
Regulated/Unregulated Regulated | ||
Standards Met CE, CE(EN55022), T-LICENSE(BS EN60950-1) | ||
Efficiency 80.59% | ||
MTBF 50000h | ||
Depth 84.4mm | ||
Minimum Temperature 0°C | ||
Width 50.9mm | ||
Energy Efficiency Level VI | ||
Type AC/DC Adapter | ||
Load Regulation ±2% | ||
Length 74.5mm | ||
- COO (Country of Origin):
- CN
RS PRO 15 W Plug In Power Supply 24 V DC, 620 mA, Level VI Efficiency, 1 Output Switched Mode, Type C
Connect your electronic devices to the mains power with this 15 W plug-in switch-mode power supply that safely converts AC inputs into DC outputs. Adapters of this type are found in residential and commercial environments, from factories to offices.
This product is fitted with a wall enclosure and a Type C, EU plug so it connects to a standard European wall socket. It includes both overload and overvoltage protection to keep you safe.
This single-output, regulated power supply from RS PRO has been tested for quality. It's suitable for general-purpose power applications including network peripherals, gaming machines and point of sale electronics.
This product is fitted with a wall enclosure and a Type C, EU plug so it connects to a standard European wall socket. It includes both overload and overvoltage protection to keep you safe.
This single-output, regulated power supply from RS PRO has been tested for quality. It's suitable for general-purpose power applications including network peripherals, gaming machines and point of sale electronics.
Features and Benefits
• Ripple and noise of 300 mV
• Output voltage of 24 V DC
• Input voltage range of 100 to 240 V AC
• Input frequency range of 47 to 63 Hz
• Line and load regulation of ±2%
• Output current of 620 mA
• Maximum input current of 500 mA
• 2.1 x 5.5 x 12 mm centre-positive output connector
• Temperature range of 0°C to +40°C
• Mean time between failures (MTBF) of 50,000 hours
• Dimensions of 74.5 (length), 50.9 (width) and 84.4 mm (depth)
• Weight of 120 g
• Energy Efficiency Level VI
• Output voltage of 24 V DC
• Input voltage range of 100 to 240 V AC
• Input frequency range of 47 to 63 Hz
• Line and load regulation of ±2%
• Output current of 620 mA
• Maximum input current of 500 mA
• 2.1 x 5.5 x 12 mm centre-positive output connector
• Temperature range of 0°C to +40°C
• Mean time between failures (MTBF) of 50,000 hours
• Dimensions of 74.5 (length), 50.9 (width) and 84.4 mm (depth)
• Weight of 120 g
• Energy Efficiency Level VI
