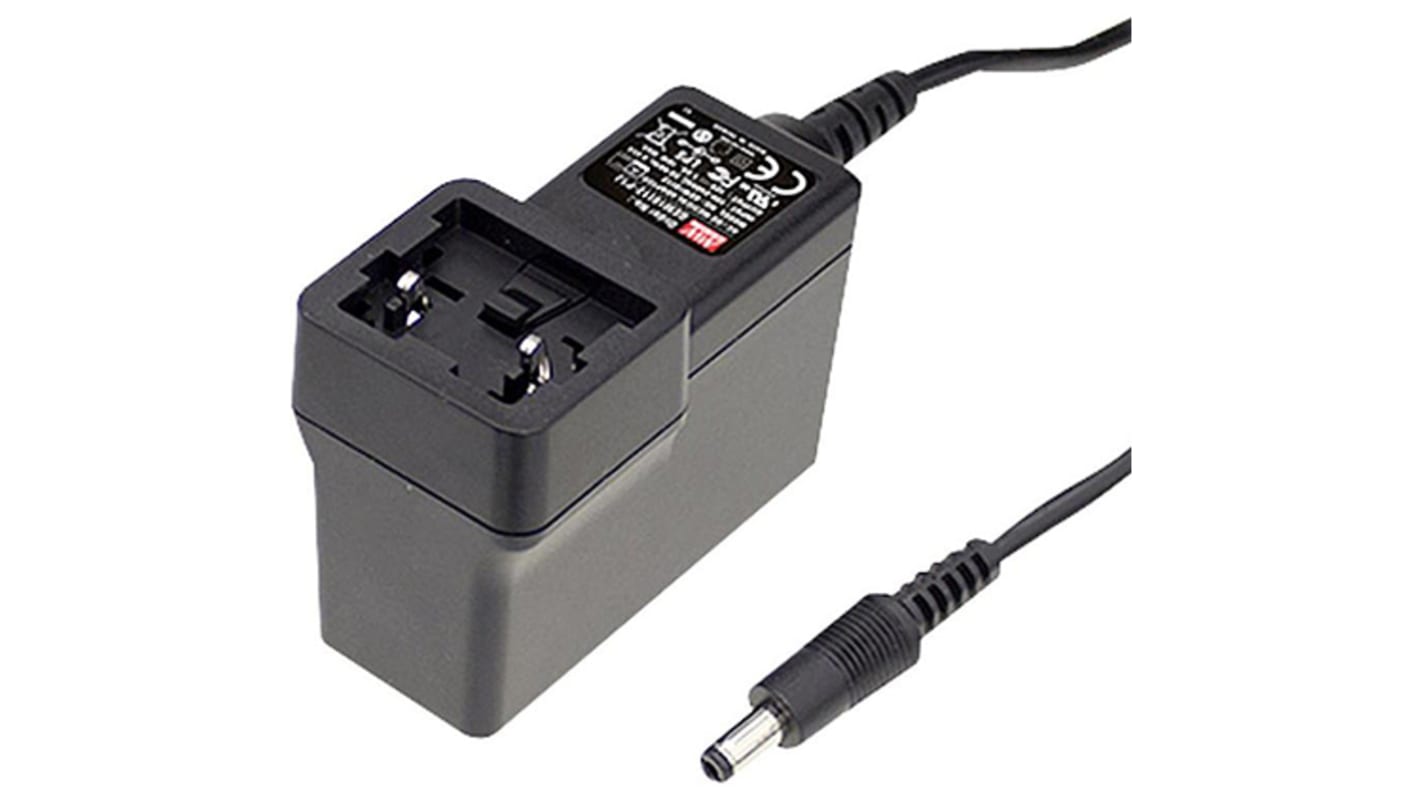

MEAN WELL 40W Plug-In AC/DC Adapter 18V dc Output, 2.22A Output
- RS Stock No.:
- 123-5015
- Mfr. Part No.:
- GEM40I18-P1J
- Brand:
- MEAN WELL
- RS Stock No.:
- 123-5015
- Mfr. Part No.:
- GEM40I18-P1J
- Brand:
- MEAN WELL
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Adapter Type | Plug-In Adapter | |
| Plug Type | Australia, European Plug, UK, US | |
| Output Voltage | 18V dc | |
| Input Voltage | 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac | |
| Output Current | 2.22A | |
| Maximum Temperature | +70°C | |
| Output Connector | 2.1 x 5.5 x 11 mm Centre Positive | |
| Input Connector | Universal Plug | |
| Number of Outputs | 1 | |
| Power Rating | 40W | |
| Cable Length | 1.5m | |
| Medical Approved | Yes | |
| MTBF | 400kh | |
| Standards Met | ANSI/AAMI ES60601-1/60601-1-11, CB, CE, cULus Recognised, EISA 2007/DOE, EN 55011 Class B, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EU ErP, FCC PART 15/CISPR22 Class B, MIL-HDBK-217F, TUV 60601-1-11, TUV Rheinland EN 60601-1, TUV Rheinland IEC 60601-1 | |
| Width | 75.5mm | |
| Minimum Temperature | -25°C | |
| Series | GEM40I | |
| Length | 39.1mm | |
| Type | AC/DC Adapter | |
| Load Regulation | ±2% | |
| Depth | 56.2mm | |
Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Adapter Type Plug-In Adapter | ||
Plug Type Australia, European Plug, UK, US | ||
Output Voltage 18V dc | ||
Input Voltage 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac | ||
Output Current 2.22A | ||
Maximum Temperature +70°C | ||
Output Connector 2.1 x 5.5 x 11 mm Centre Positive | ||
Input Connector Universal Plug | ||
Number of Outputs 1 | ||
Power Rating 40W | ||
Cable Length 1.5m | ||
Medical Approved Yes | ||
MTBF 400kh | ||
Standards Met ANSI/AAMI ES60601-1/60601-1-11, CB, CE, cULus Recognised, EISA 2007/DOE, EN 55011 Class B, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EU ErP, FCC PART 15/CISPR22 Class B, MIL-HDBK-217F, TUV 60601-1-11, TUV Rheinland EN 60601-1, TUV Rheinland IEC 60601-1 | ||
Width 75.5mm | ||
Minimum Temperature -25°C | ||
Series GEM40I | ||
Length 39.1mm | ||
Type AC/DC Adapter | ||
Load Regulation ±2% | ||
Depth 56.2mm | ||
