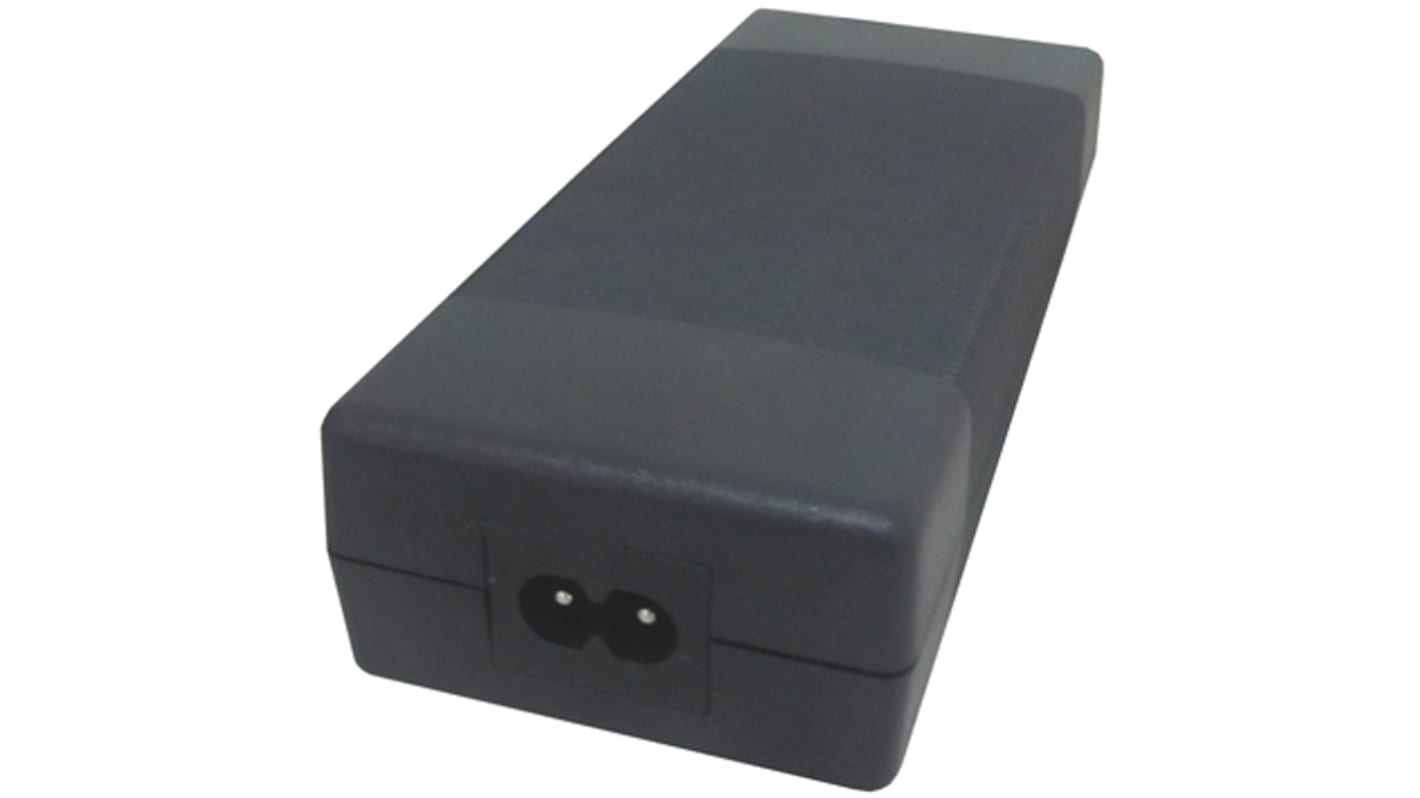

RS PRO 80W Power Brick AC/DC Adapter 18V dc Output, 4.44A Output
- RS Stock No.:
- 804-0104
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£59.95
(exc. VAT)
£71.94
(inc. VAT)
- RS Stock No.:
- 804-0104
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Adapter Type | Power Brick Adapter | |
Plug Type | C8 | |
Output Voltage | 18V dc | |
Input Voltage | 113 → 370 V dc, 80 → 264V ac | |
Output Current | 4.44A | |
Maximum Temperature | +40°C | |
Output Connector | 2.5 mm Jack Plug | |
Input Connector | IEC 320-C8 | |
Number of Outputs | 1 | |
Power Rating | 80W | |
Cable Length | 1200mm | |
MTBF | 400kh | |
Efficiency | 86% | |
Standards Met | ErP, RoHS Compliant | |
Energy Efficiency Level | V | |
Priced to Clear | Yes | |
Minimum Temperature | 0°C | |
Depth | 32mm | |
Width | 60mm | |
Length | 145mm | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Adapter Type Power Brick Adapter | ||
Plug Type C8 | ||
Output Voltage 18V dc | ||
Input Voltage 113 → 370 V dc, 80 → 264V ac | ||
Output Current 4.44A | ||
Maximum Temperature +40°C | ||
Output Connector 2.5 mm Jack Plug | ||
Input Connector IEC 320-C8 | ||
Number of Outputs 1 | ||
Power Rating 80W | ||
Cable Length 1200mm | ||
MTBF 400kh | ||
Efficiency 86% | ||
Standards Met ErP, RoHS Compliant | ||
Energy Efficiency Level V | ||
Priced to Clear Yes | ||
Minimum Temperature 0°C | ||
Depth 32mm | ||
Width 60mm | ||
Length 145mm | ||
RS EES80B 80W ErP Single Output Switch Mode Power Supplies
The EES80 is a series of 80W external desktop power supplies come in a fully enclosed plastic case with an AC inlet C8 plug and 1.2m DC cable with 2.1mm connector. The power supply is protected against short circuit, overload and over voltage. This switch mode power supply has a wide input voltage range of 100 to 240 Vac and an efficiency of up to 86%. The EES80 power supplies are ErP step 2 compliant and meet the CEC regulation, level V.
80W external power supply
Protections: Short circuit/ Overload/ Over voltage
Input voltage range: 100 to 240VAC
Fully enclosed plastic case
Efficiency: Up to 86%
ErP step2 compliant (level V)
Dimensions (LxWxHmm) 145x 60x 32
1.2m DC cable with 2.1mm connector
AC inlet C8 socket
Protections: Short circuit/ Overload/ Over voltage
Input voltage range: 100 to 240VAC
Fully enclosed plastic case
Efficiency: Up to 86%
ErP step2 compliant (level V)
Dimensions (LxWxHmm) 145x 60x 32
1.2m DC cable with 2.1mm connector
AC inlet C8 socket
Approvals
CEC regulation – efficency level V
