MPN

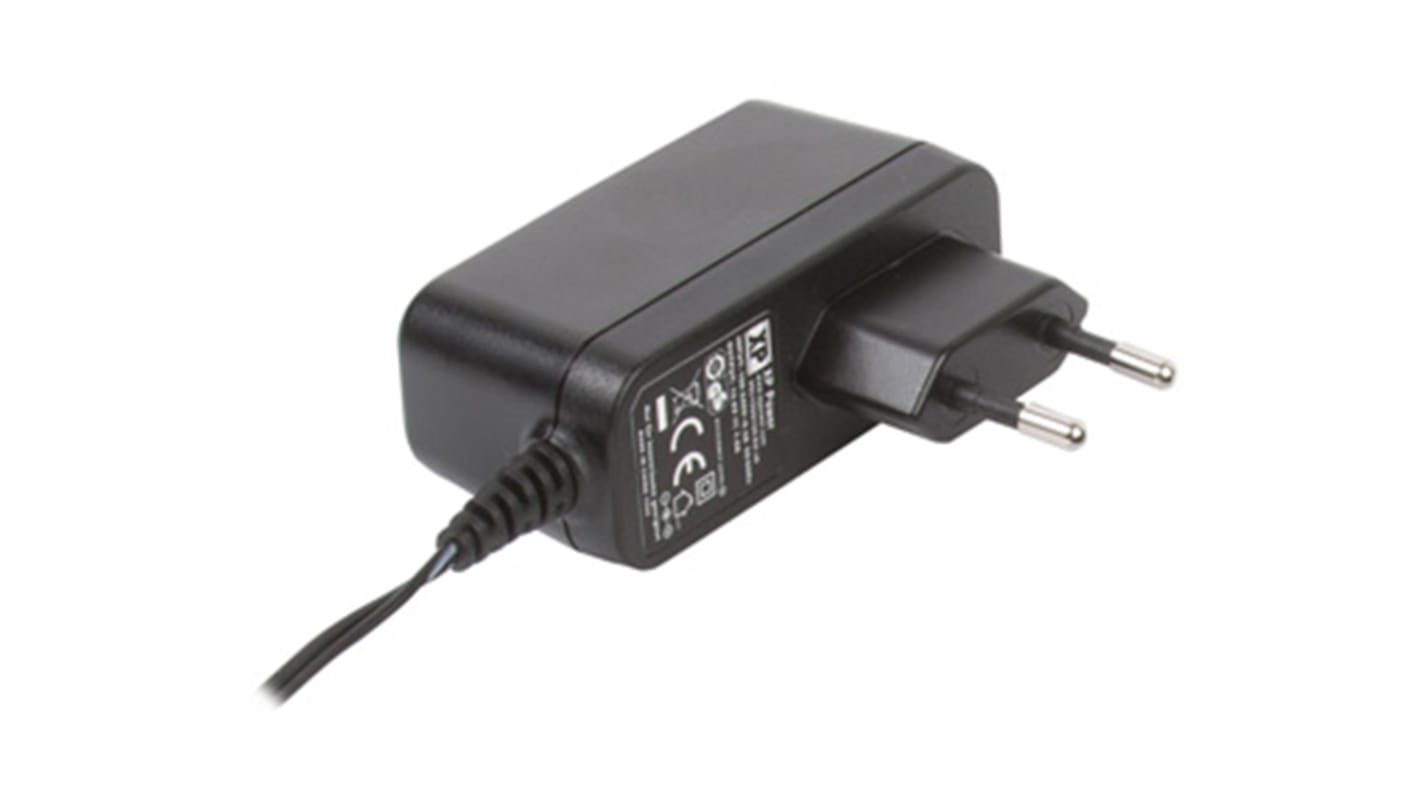

XP Power 2.1 x 5.5 x 12 mm Centre Positive AC/DC Adapter Type C 36 W 24V dc Output, 1.5 A

RS Stock No.:: 123-4873
Distrelec Article No.:: 301-83-806
Mfr. Part No.:: VEL36US240-EU-JA
Brand:: XP Power

XP Power 2.1 x 5.5 x 12 mm Centre Positive AC/DC Adapter Type C 36 W 24V dc Output, 1.5 A

Bulk discount available

View bulk pricing options

Subtotal (1 unit)*

£18.65

(exc. VAT)

£22.38

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

Plus 269 unit(s) shipping from 31 August 2026
Plus 105 unit(s) shipping from 31 August 2026
Plus 84 unit(s) shipping from 30 September 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£18.65
5 - 9	£18.10
10 - 24	£17.54
25 - 49	£16.98
50 +	£16.42

*price indicative

RS Stock No.:: 123-4873
Distrelec Article No.:: 301-83-806
Mfr. Part No.:: VEL36US240-EU-JA
Brand:: XP Power

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	XP Power
	Product Type	AC/DC Adapter
	Plug Type	Type C
	Output Voltage	24V dc
	Output Connector Type	2.1 x 5.5 x 12 mm Centre Positive
	Power	36W
	Number of Outputs	1
	Minimum Operating Temperature	0°C
	Input Connector Type	EU Plug
	Adapter Current	1.5A
	Maximum Operating Temperature	45°C
	Standards/Approvals	CB, UL 60950-1, CE, EN 60950-1
	Length	94mm
	Depth	64.8mm
	Width	35mm
	Efficiency	87%
	Energy Efficiency Level	VI
	Minimum Input Voltage	100V ac
	Series	VEL36

	Select all
	Brand XP Power
	Product Type AC/DC Adapter
	Plug Type Type C
	Output Voltage 24V dc
	Output Connector Type 2.1 x 5.5 x 12 mm Centre Positive
	Power 36W
	Number of Outputs 1
	Minimum Operating Temperature 0°C
	Input Connector Type EU Plug
	Adapter Current 1.5A
	Maximum Operating Temperature 45°C
	Standards/Approvals CB, UL 60950-1, CE, EN 60950-1
	Length 94mm
	Depth 64.8mm
	Width 35mm
	Efficiency 87%
	Energy Efficiency Level VI
	Minimum Input Voltage 100V ac
	Series VEL36

Datasheet

COO (Country of Origin):: CN

XP Power Supply

The XP Power VEL36 series standard jack plug-in power supply has a regulated output voltage of 24VDC and current rating of1.5A. It supports numerous applications due to its wide-ranging input (90-264VAC) that complies with the universal standard. The highly reliable power supply has an output voltage ranging from 12V to 24V. This range attributes universal input and fixed mains connectors.

Features and Benefits

Plug-in power supply of 36W

Energy efficiency level VI

Output connector is 5.5 x 2.1 x 12mm DC jack

Input connector is EU plug

European CoC tier 2

Class II construction

Certifications

EN55022

EN61000-3-2

EN61000-3-3

EN61000-4-2

EN61000-4-4

EN61000-4-5

EN61000-4-6

EN61000-4-8

EN55024

IEC60950-1

UL/cUL60950-1

EN60950-1
