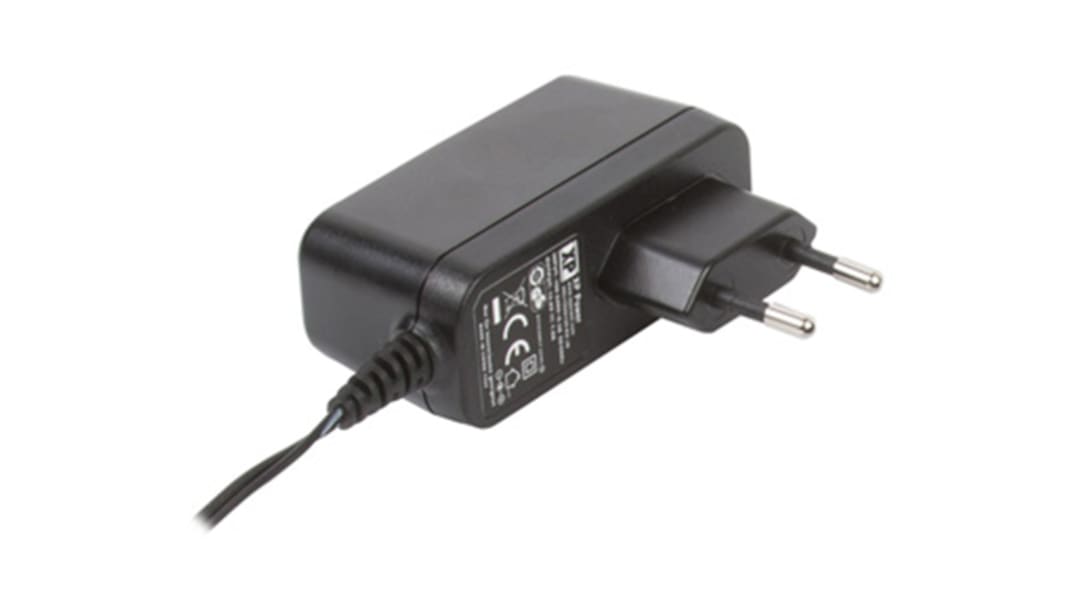

XP Power 36 W AC/DC Adapter AC/DC Adapter Type C 12V dc Output, 3 A
- RS Stock No.:
- 123-4870
- Distrelec Article No.:
- 301-83-800
- Mfr. Part No.:
- VEL36US120-EU-JA
- Brand:
- XP Power
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£17.23
(exc. VAT)
£20.68
(inc. VAT)
- RS Stock No.:
- 123-4870
- Distrelec Article No.:
- 301-83-800
- Mfr. Part No.:
- VEL36US120-EU-JA
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Sub Type | AC/DC Adapter | |
| Product Type | AC/DC Adapter | |
| Plug Type | Type C | |
| Output Voltage | 12V dc | |
| Output Connector Type | 2.1 x 5.5 x 12 mm Centre Positive | |
| Power | 36W | |
| Cable Length | 1500mm | |
| Number of Outputs | 1 | |
| Regulated/Unregulated | Regulated | |
| Minimum Operating Temperature | 0°C | |
| Adapter Current | 3A | |
| Input Connector Type | EU Plug | |
| Maximum Operating Temperature | 45°C | |
| Depth | 64.8mm | |
| Width | 35mm | |
| Standards/Approvals | CB, CE, EN 60950-1, UL 60950-1 | |
| Length | 94mm | |
| Maximum Input Voltage | 264V ac | |
| Efficiency | 75% | |
| Energy Efficiency Level | VI | |
| Minimum Input Voltage | 100V ac | |
| Series | VEL36 | |
| Select all | ||
|---|---|---|
Brand XP Power | ||
Sub Type AC/DC Adapter | ||
Product Type AC/DC Adapter | ||
Plug Type Type C | ||
Output Voltage 12V dc | ||
Output Connector Type 2.1 x 5.5 x 12 mm Centre Positive | ||
Power 36W | ||
Cable Length 1500mm | ||
Number of Outputs 1 | ||
Regulated/Unregulated Regulated | ||
Minimum Operating Temperature 0°C | ||
Adapter Current 3A | ||
Input Connector Type EU Plug | ||
Maximum Operating Temperature 45°C | ||
Depth 64.8mm | ||
Width 35mm | ||
Standards/Approvals CB, CE, EN 60950-1, UL 60950-1 | ||
Length 94mm | ||
Maximum Input Voltage 264V ac | ||
Efficiency 75% | ||
Energy Efficiency Level VI | ||
Minimum Input Voltage 100V ac | ||
Series VEL36 | ||
- COO (Country of Origin):
- CN
XP Power Supply
The XP Power VEL36 series standard jack plug-in power supply has a regulated output voltage rating of 12VDC and current rating of 3A. It supports numerous applications due to its wide-ranging input (90-264VAC) that complies with the universal standard. The highly reliable power supply has an output voltage rating ranging from 12V to 24V. This range attributes universal input and fixed mains connectors.
Features and Benefits
Plug-in power supply of 36W
Energy efficiency level VI
Output connector is 5.5 x 2.1 x 12mm DC jack
Input connector is EU plug
European CoC tier 2
Class II construction
Certifications
EN55022
EN61000-3-2
EN61000-3-3
EN61000-4-2
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
EN55024
IEC60950-1
UL/cUL60950-1
EN60950-1
