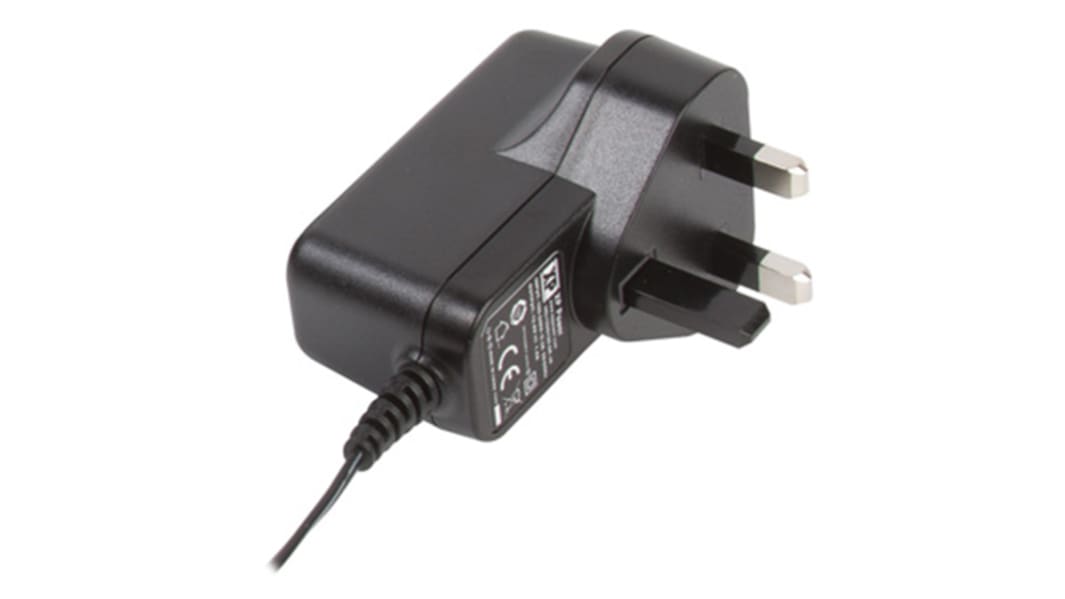

XP Power 2.1 x 5.5 x 12 mm Centre Positive AC/DC Adapter AC/DC Adapter Type G 36 W 12V dc Output, 3 A
- RS Stock No.:
- 123-4866
- Distrelec Article No.:
- 301-83-801
- Mfr. Part No.:
- VEL36US120-UK-JA
- Brand:
- XP Power
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£18.29
(exc. VAT)
£21.95
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 18 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £18.29 |
| 5 - 9 | £17.74 |
| 10 - 24 | £17.19 |
| 25 - 49 | £16.64 |
| 50 + | £16.10 |
*price indicative
- RS Stock No.:
- 123-4866
- Distrelec Article No.:
- 301-83-801
- Mfr. Part No.:
- VEL36US120-UK-JA
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Product Type | AC/DC Adapter | |
| Sub Type | AC/DC Adapter | |
| Plug Type | Type G | |
| Output Voltage | 12V dc | |
| Output Connector Type | 2.1 x 5.5 x 12 mm Centre Positive | |
| Power | 36W | |
| Number of Outputs | 1 | |
| Input Connector Type | UK Plug | |
| Adapter Current | 3A | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 45°C | |
| Depth | 53.6mm | |
| Standards/Approvals | UL 60950-1, CB, CE, EN 60950-1 | |
| Width | 49.6mm | |
| Length | 94mm | |
| Maximum Input Voltage | 100, 110, 115, 120, 127, 220, 230, 240V ac | |
| Efficiency | 87% | |
| Energy Efficiency Level | VI | |
| Series | VEL36 | |
| Minimum Input Voltage | 100V ac | |
| Select all | ||
|---|---|---|
Brand XP Power | ||
Product Type AC/DC Adapter | ||
Sub Type AC/DC Adapter | ||
Plug Type Type G | ||
Output Voltage 12V dc | ||
Output Connector Type 2.1 x 5.5 x 12 mm Centre Positive | ||
Power 36W | ||
Number of Outputs 1 | ||
Input Connector Type UK Plug | ||
Adapter Current 3A | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 45°C | ||
Depth 53.6mm | ||
Standards/Approvals UL 60950-1, CB, CE, EN 60950-1 | ||
Width 49.6mm | ||
Length 94mm | ||
Maximum Input Voltage 100, 110, 115, 120, 127, 220, 230, 240V ac | ||
Efficiency 87% | ||
Energy Efficiency Level VI | ||
Series VEL36 | ||
Minimum Input Voltage 100V ac | ||
- COO (Country of Origin):
- CN
XP Power Supply
The XP Power VEL36 series standard jack plug-in power supply has a regulated output voltage rating of 12VDC and current rating of 3A. It supports numerous applications due to its wide-ranging input (90-264VAC) that complies with the universal standard. The highly reliable power supply has an output voltage ranging from 12V to 24V. This range attributes universal input and fixed mains connectors.
Features and Benefits
Plug-in power supply of 36W
Energy efficiency level VI
Output connector is 5.5 x 2.1 x 12mm DC jack
Input connector is UK plug
European CoC tier 2
Class II construction
Certifications
EN55022
EN61000-3-2
EN61000-3-3
EN61000-4-2
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
EN55024
IEC60950-1
UL/cUL60950-1
EN60950-1
