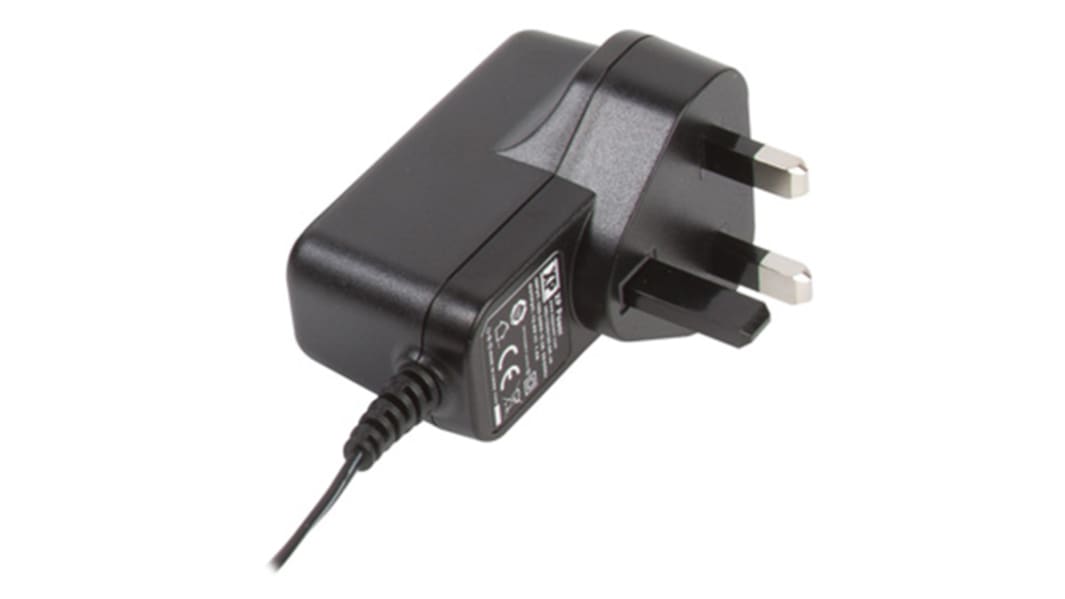

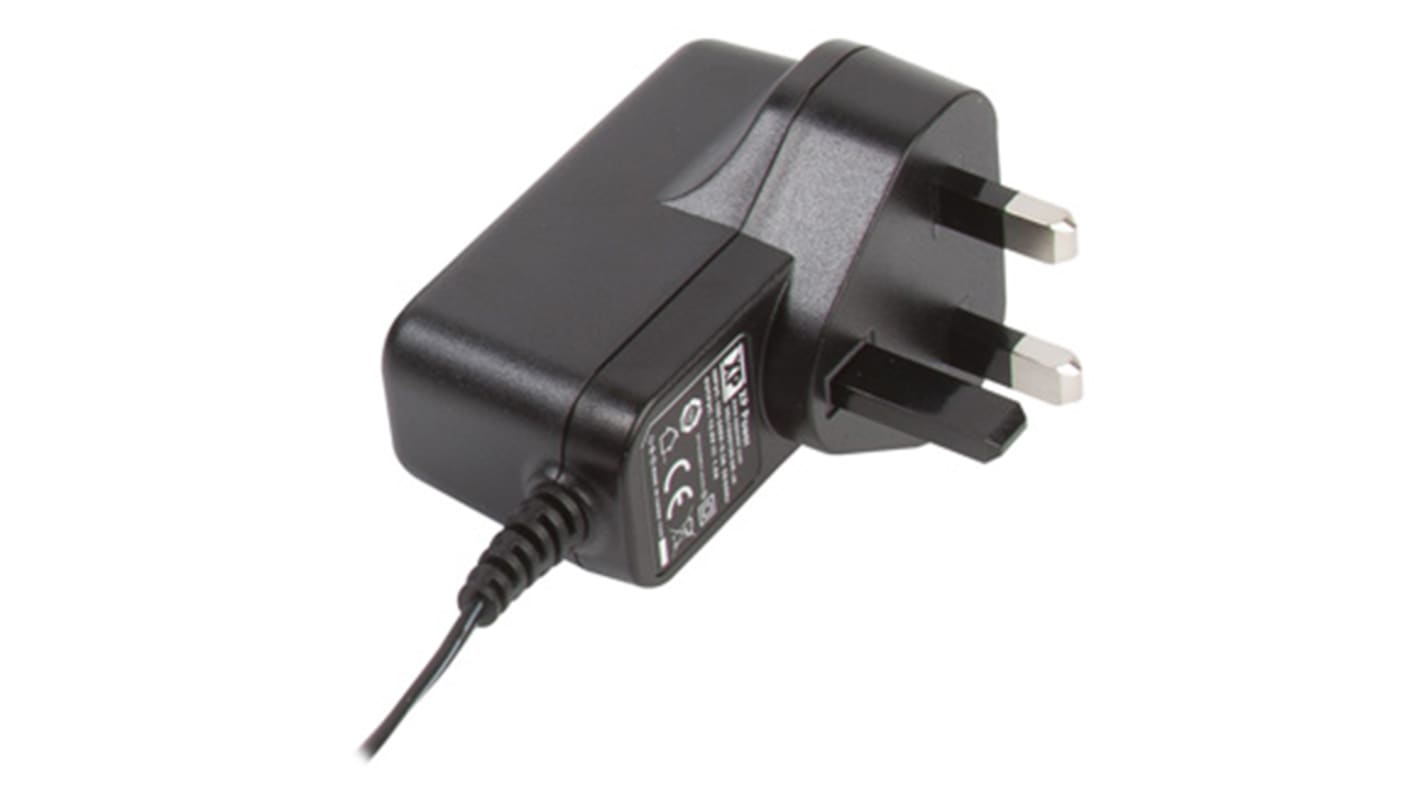

XP Power 36 W AC/DC Adapter Type G 24V dc Output, 1.5 A
- RS Stock No.:
- 123-4869
- Distrelec Article No.:
- 301-83-807
- Mfr. Part No.:
- VEL36US240-UK-JA
- Brand:
- XP Power
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 123-4869
- Distrelec Article No.:
- 301-83-807
- Mfr. Part No.:
- VEL36US240-UK-JA
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Product Type | AC/DC Adapter | |
| Plug Type | Type G | |
| Output Voltage | 24V dc | |
| Power | 36W | |
| Output Connector Type | 2.1 x 5.5 x 12 mm Centre Positive | |
| Number of Outputs | 1 | |
| Input Connector Type | UK Plug | |
| Adapter Current | 1.5A | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 45°C | |
| Length | 94mm | |
| Standards/Approvals | EN 60950-1, UL 60950-1, CB, CE | |
| Width | 35mm | |
| Depth | 46.6mm | |
| Efficiency | 87% | |
| Series | VEL36 | |
| Minimum Input Voltage | 100V ac | |
| Energy Efficiency Level | VI | |
| Select all | ||
|---|---|---|
Brand XP Power | ||
Product Type AC/DC Adapter | ||
Plug Type Type G | ||
Output Voltage 24V dc | ||
Power 36W | ||
Output Connector Type 2.1 x 5.5 x 12 mm Centre Positive | ||
Number of Outputs 1 | ||
Input Connector Type UK Plug | ||
Adapter Current 1.5A | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 45°C | ||
Length 94mm | ||
Standards/Approvals EN 60950-1, UL 60950-1, CB, CE | ||
Width 35mm | ||
Depth 46.6mm | ||
Efficiency 87% | ||
Series VEL36 | ||
Minimum Input Voltage 100V ac | ||
Energy Efficiency Level VI | ||
- COO (Country of Origin):
- CN
XP Power - VEL36 Series of AC-DC Power Supplies
The VEL36 series from XP Power offers an excellent range of 36 W plug-in power supplies, all of which feature level VI efficiency. These highly reliable power supplies have output voltages from 12 V to 24 V and all have a class II construction. The range also attributes a universal input, fixed mains connectors and extremely low no load power consumption.
36 W, Plug-in power supplies
Energy efficiency level VI
Fixed mains connectors
Output voltages from 12 V to 24 V
Class II construction
Universal input
European CoC tier 2
XP Power - AC-DC Power Supplies
