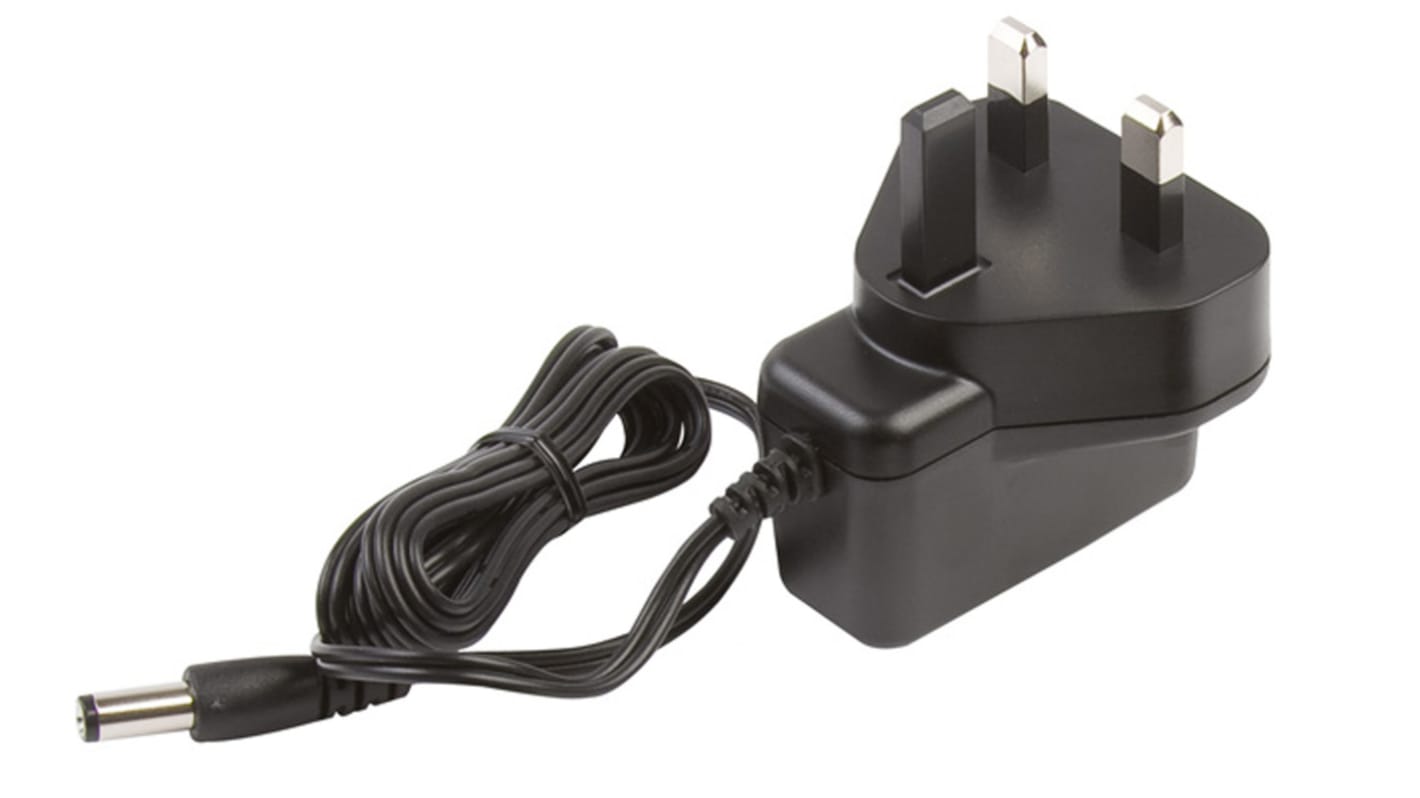

XP Power 5W Plug-In AC/DC Adapter 12V dc Output, 420mA Output
- RS Stock No.:
- 121-7133
- Mfr. Part No.:
- VEL05US120-UK-JA
- Brand:
- XP Power
Bulk discount available
Subtotal (1 unit)*
£5.40
(exc. VAT)
£6.48
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 129 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £5.40 |
| 5 - 9 | £5.23 |
| 10 - 24 | £5.07 |
| 25 - 49 | £4.92 |
| 50 + | £4.76 |
*price indicative
- RS Stock No.:
- 121-7133
- Mfr. Part No.:
- VEL05US120-UK-JA
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Adapter Type | Plug-In Adapter | |
| Plug Type | Type G | |
| Output Voltage | 12V dc | |
| Input Voltage | 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac | |
| Output Current | 420mA | |
| Maximum Temperature | +60°C | |
| Output Connector | 2.1 x 5.5 x 12 mm Centre Positive | |
| Input Connector | UK Plug | |
| Number of Outputs | 1 | |
| Power Rating | 5W | |
| Cable Length | 1.5m | |
| MTBF | 100kh | |
| Standards Met | CB Report, CCC, cUL/UL 60950-1, EN 55022, EN 55024, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC 60950-1, TUV | |
| Length | 55.1mm | |
| Series | VEL05 | |
| Depth | 42.9mm | |
| Width | 49.5mm | |
| Minimum Temperature | 0°C | |
| Load Regulation | 5% | |
| Energy Efficiency Level | VI | |
| Type | AC/DC Adapter | |
Select all | ||
|---|---|---|
Brand XP Power | ||
Adapter Type Plug-In Adapter | ||
Plug Type Type G | ||
Output Voltage 12V dc | ||
Input Voltage 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac | ||
Output Current 420mA | ||
Maximum Temperature +60°C | ||
Output Connector 2.1 x 5.5 x 12 mm Centre Positive | ||
Input Connector UK Plug | ||
Number of Outputs 1 | ||
Power Rating 5W | ||
Cable Length 1.5m | ||
MTBF 100kh | ||
Standards Met CB Report, CCC, cUL/UL 60950-1, EN 55022, EN 55024, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC 60950-1, TUV | ||
Length 55.1mm | ||
Series VEL05 | ||
Depth 42.9mm | ||
Width 49.5mm | ||
Minimum Temperature 0°C | ||
Load Regulation 5% | ||
Energy Efficiency Level VI | ||
Type AC/DC Adapter | ||
XP Power Supply
The XP Power VEL05 series standard jack plug-in power supply has a regulated output voltage rating of 12VDC and current rating of 420mA. It supports numerous applications due to its wide-ranging input (90-264VAC) that complies with the universal standard. The highly reliable power supply has an output voltage rating ranging from 5V to 12V. This range attributes universal input and fixed mains connectors.
Features and Benefits
Plug-in power supply of 5W
Energy efficiency level VI
Output connector is 5.5 x 2.1 x 12mm DC jack
Input connector is UK plug
79% efficiency
Class II construction
Energy efficiency level VI
Output connector is 5.5 x 2.1 x 12mm DC jack
Input connector is UK plug
79% efficiency
Class II construction
Certifications
EN55022
EN61000-3-2
EN61000-3-3
EN61000-4-2
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
EN55024
IEC60950-1
UL/cUL60950-1
EN60950-1
EN61000-3-2
EN61000-3-3
EN61000-4-2
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
EN55024
IEC60950-1
UL/cUL60950-1
EN60950-1
