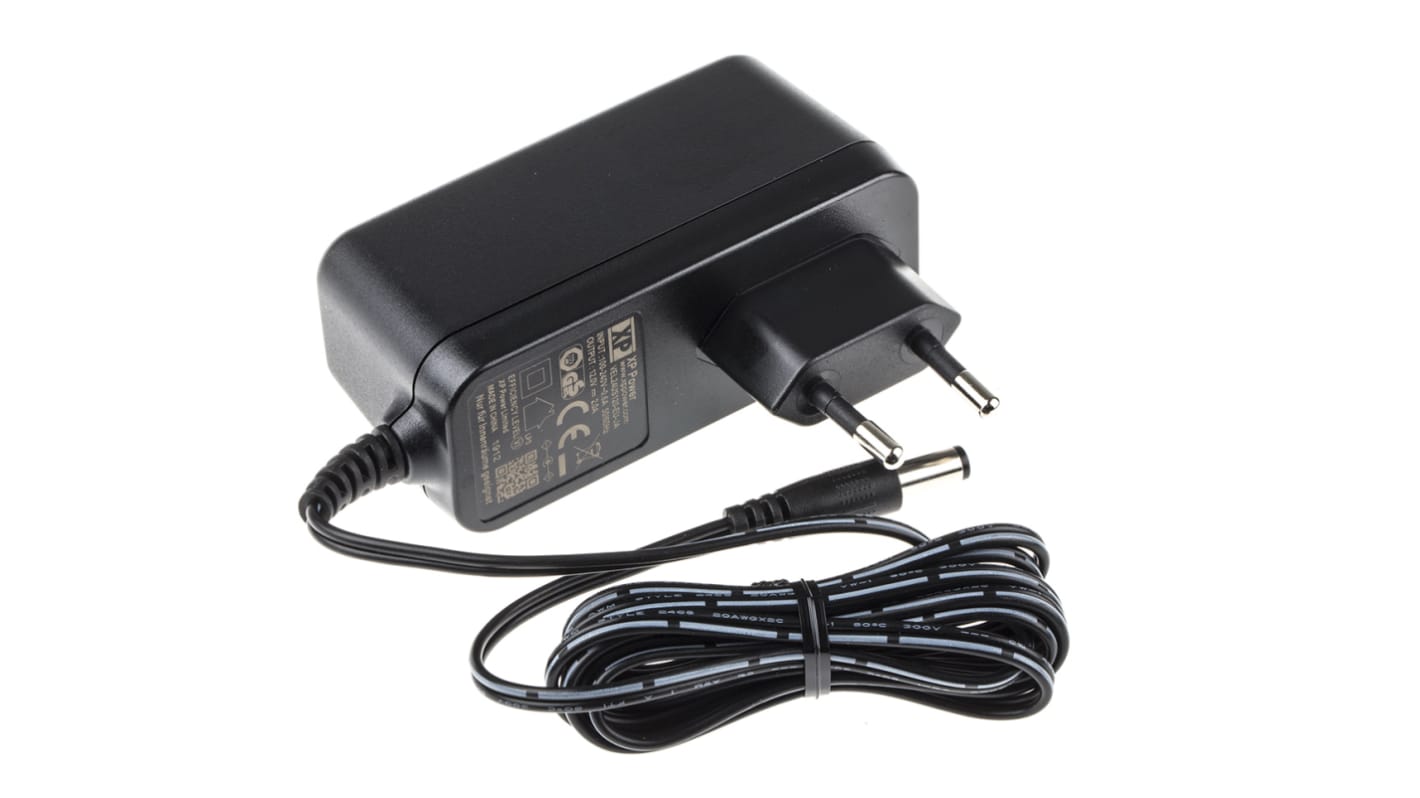

XP Power 24 W AC/DC Adapter AC/DC Adapter Type C 12V dc Output, 2 A
- RS Stock No.:
- 121-7156
- Distrelec Article No.:
- 301-83-793
- Mfr. Part No.:
- VEL24US120-EU-JA
- Brand:
- XP Power
Bulk discount available
Subtotal (1 unit)*
£13.64
(exc. VAT)
£16.37
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 4 | £13.64 |
| 5 - 9 | £13.21 |
| 10 - 24 | £12.80 |
| 25 - 49 | £12.41 |
| 50 + | £11.99 |
*price indicative
- RS Stock No.:
- 121-7156
- Distrelec Article No.:
- 301-83-793
- Mfr. Part No.:
- VEL24US120-EU-JA
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Product Type | AC/DC Adapter | |
| Sub Type | AC/DC Adapter | |
| Plug Type | Type C | |
| Output Voltage | 12V dc | |
| Output Connector Type | 2.1 x 5.5 x 12 mm Centre Positive | |
| Power | 24W | |
| Cable Length | 1.5m | |
| Number of Outputs | 1 | |
| Minimum Operating Temperature | 0°C | |
| Input Connector Type | EU Plug | |
| Adapter Current | 2A | |
| Maximum Operating Temperature | 60°C | |
| Width | 34mm | |
| Depth | 57.57mm | |
| Length | 90mm | |
| Standards/Approvals | UL 60950-1, EN 60950-1, CE, CB | |
| Maximum Input Voltage | 264V ac | |
| Efficiency | 75% | |
| Series | VEL24 | |
| Energy Efficiency Level | VI | |
| Minimum Input Voltage | 100V ac | |
| Load Regulation | 5 % | |
| Select all | ||
|---|---|---|
Brand XP Power | ||
Product Type AC/DC Adapter | ||
Sub Type AC/DC Adapter | ||
Plug Type Type C | ||
Output Voltage 12V dc | ||
Output Connector Type 2.1 x 5.5 x 12 mm Centre Positive | ||
Power 24W | ||
Cable Length 1.5m | ||
Number of Outputs 1 | ||
Minimum Operating Temperature 0°C | ||
Input Connector Type EU Plug | ||
Adapter Current 2A | ||
Maximum Operating Temperature 60°C | ||
Width 34mm | ||
Depth 57.57mm | ||
Length 90mm | ||
Standards/Approvals UL 60950-1, EN 60950-1, CE, CB | ||
Maximum Input Voltage 264V ac | ||
Efficiency 75% | ||
Series VEL24 | ||
Energy Efficiency Level VI | ||
Minimum Input Voltage 100V ac | ||
Load Regulation 5 % | ||
XP Power Supply
The XP Power VEL24 series standard jack plug-in power supply has a regulated output voltage rating of 12VDC and current rating of 2A. It supports numerous applications due to its wide-ranging input (90-264VAC) that complies with the universal standard. The highly reliable power supply has an output voltage rating ranging from 12V to 24V. This range attributes universal input and fixed mains connectors.
Features and Benefits
Plug-in power supply of 24W
Energy efficiency level VI
Output connector is 5.5 x 2.1 x 12mm DC jack
Input connector is EU plug
European CoC tier 2
Class II construction
Certifications
EN55022
EN61000-3-2
EN61000-3-3
EN61000-4-2
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
EN55024
IEC60950-1
UL/cUL60950-1
EN60950-1
