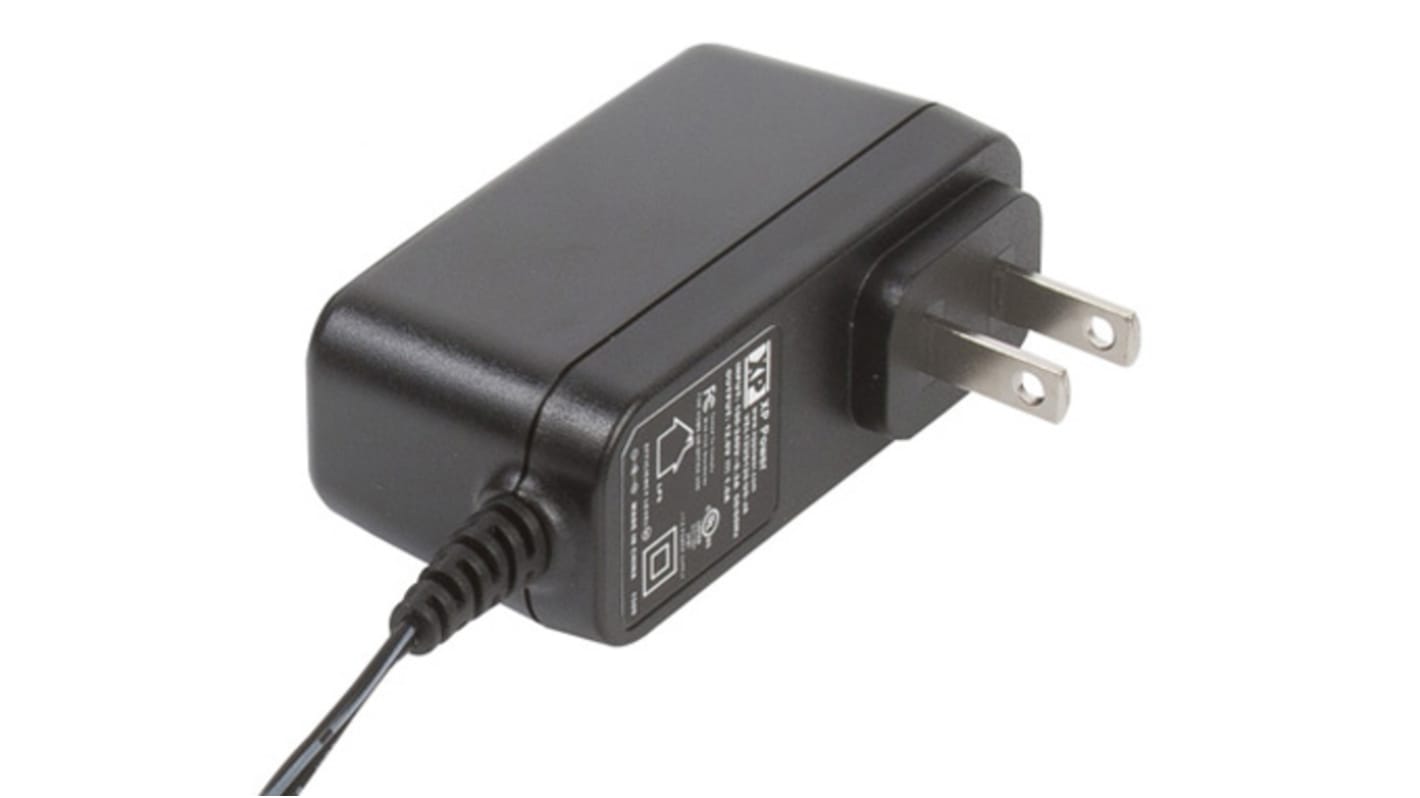

XP Power 24 W AC/DC Adapter AC/DC Adapter Type A 12V dc Output, 2 A
- RS Stock No.:
- 121-7158
- Distrelec Article No.:
- 301-83-795
- Mfr. Part No.:
- VEL24US120-US-JA
- Brand:
- XP Power
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 121-7158
- Distrelec Article No.:
- 301-83-795
- Mfr. Part No.:
- VEL24US120-US-JA
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Sub Type | AC/DC Adapter | |
| Product Type | AC/DC Adapter | |
| Plug Type | Type A | |
| Output Voltage | 12V dc | |
| Power | 24W | |
| Output Connector Type | 2.1 x 5.5 x 12 mm Centre Positive | |
| Cable Length | 1.5m | |
| Number of Outputs | 1 | |
| Minimum Operating Temperature | 0°C | |
| Adapter Current | 2A | |
| Input Connector Type | US Plug | |
| Maximum Operating Temperature | 60°C | |
| Depth | 47.5mm | |
| Length | 90mm | |
| Standards/Approvals | CB, CE, EN 60950-1, UL 60950-1 | |
| Width | 34mm | |
| Maximum Input Voltage | 264V ac | |
| Efficiency | 75% | |
| Energy Efficiency Level | VI | |
| Minimum Input Voltage | 100V ac | |
| Load Regulation | 5 % | |
| Series | VEL24 | |
| Select all | ||
|---|---|---|
Brand XP Power | ||
Sub Type AC/DC Adapter | ||
Product Type AC/DC Adapter | ||
Plug Type Type A | ||
Output Voltage 12V dc | ||
Power 24W | ||
Output Connector Type 2.1 x 5.5 x 12 mm Centre Positive | ||
Cable Length 1.5m | ||
Number of Outputs 1 | ||
Minimum Operating Temperature 0°C | ||
Adapter Current 2A | ||
Input Connector Type US Plug | ||
Maximum Operating Temperature 60°C | ||
Depth 47.5mm | ||
Length 90mm | ||
Standards/Approvals CB, CE, EN 60950-1, UL 60950-1 | ||
Width 34mm | ||
Maximum Input Voltage 264V ac | ||
Efficiency 75% | ||
Energy Efficiency Level VI | ||
Minimum Input Voltage 100V ac | ||
Load Regulation 5 % | ||
Series VEL24 | ||
- COO (Country of Origin):
- CN
XP Power - VEL24 Series of AC-DC Power Supplies
The VEL24 series from XP Power offers a great range of 24 W plug-in power supplies, all of which feature level VI energy efficiency. These highly reliable power supplies have output voltages from 12 to 24 V and all feature a class II construction. The range, which is available in a standard in a standard barrel jack version, also attributes a universal input and fixed mains connectors.
24 W plug-in power supplies
Energy efficiency level VI
Standard barrel jack
Universal input
Output voltage from 12 to 24 V
Extremely low no load power consumption
Class II construction
European CoC tier 2
Switch Mode - XP Power
