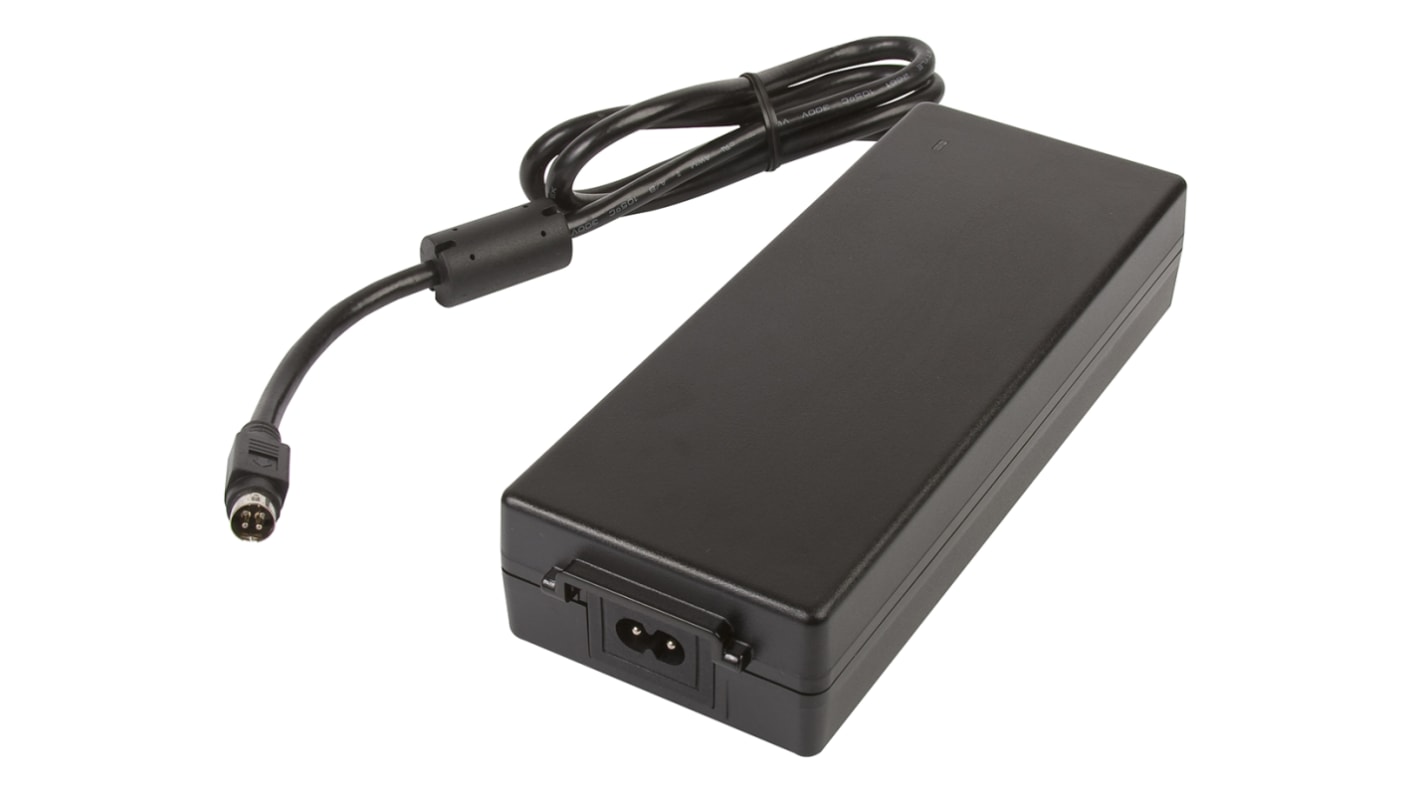

XP Power 180 W AC/DC Adapter 15V dc Output, 12 A
- RS Stock No.:
- 121-7068
- Mfr. Part No.:
- AHM180PS15C2-8
- Brand:
- XP Power
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 121-7068
- Mfr. Part No.:
- AHM180PS15C2-8
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Product Type | AC/DC Adapter | |
| Output Voltage | 15V dc | |
| Power | 180W | |
| Cable Length | 204.9mm | |
| Number of Outputs | 1 | |
| Adapter Current | 12A | |
| Minimum Operating Temperature | 0°C | |
| Input Connector Type | IEC 320-C8 | |
| Maximum Operating Temperature | 60°C | |
| Depth | 41mm | |
| Width | 41mm | |
| Length | 204.9mm | |
| Standards/Approvals | ANSI/AAMI ES60601-1, UL 60950, PSE Certified, MIL-HDBK-217F, EN 61000-4-8, EN 61000-4-6, EN 61000-4-5, EN 61000-4-4, EN 61000-4-3, EN 61000-4-2, EN 61000-4-11, EN 61000-3-3, EN 61000-3-2, EN 60950, EN 60601-1-2, EN 60601-1, EN 55011/22, EISA 2007, CSA 22.2 No. 60601-1, CEC2008 | |
| Maximum Input Voltage | 264V ac | |
| Efficiency | 92% | |
| Series | AHM | |
| Energy Efficiency Level | V | |
| Load Regulation | ±3 % | |
| Minimum Input Voltage | 80V ac | |
| Select all | ||
|---|---|---|
Brand XP Power | ||
Product Type AC/DC Adapter | ||
Output Voltage 15V dc | ||
Power 180W | ||
Cable Length 204.9mm | ||
Number of Outputs 1 | ||
Adapter Current 12A | ||
Minimum Operating Temperature 0°C | ||
Input Connector Type IEC 320-C8 | ||
Maximum Operating Temperature 60°C | ||
Depth 41mm | ||
Width 41mm | ||
Length 204.9mm | ||
Standards/Approvals ANSI/AAMI ES60601-1, UL 60950, PSE Certified, MIL-HDBK-217F, EN 61000-4-8, EN 61000-4-6, EN 61000-4-5, EN 61000-4-4, EN 61000-4-3, EN 61000-4-2, EN 61000-4-11, EN 61000-3-3, EN 61000-3-2, EN 60950, EN 60601-1-2, EN 60601-1, EN 55011/22, EISA 2007, CSA 22.2 No. 60601-1, CEC2008 | ||
Maximum Input Voltage 264V ac | ||
Efficiency 92% | ||
Series AHM | ||
Energy Efficiency Level V | ||
Load Regulation ±3 % | ||
Minimum Input Voltage 80V ac | ||
XP Power - AHM Series of Plug-in Power Supplies
The AHM series from XP Power offer a wide range of 85 W to 250 W plug-in power supplies, which all feature level V energy efficiency. These reliable power supplies are all CEC2008 and EISA2007 compliant as well as being IT and medically approved. Optional Class I and Class II versions are available except for with AHM250.
85 W to 250 W plug-in power supplies
CEC2008 & EISA2007 compliant
Energy efficiency level V
IT and medically approved
3-year warranty
<0.5 W no load input power
IP22 environmental rating
