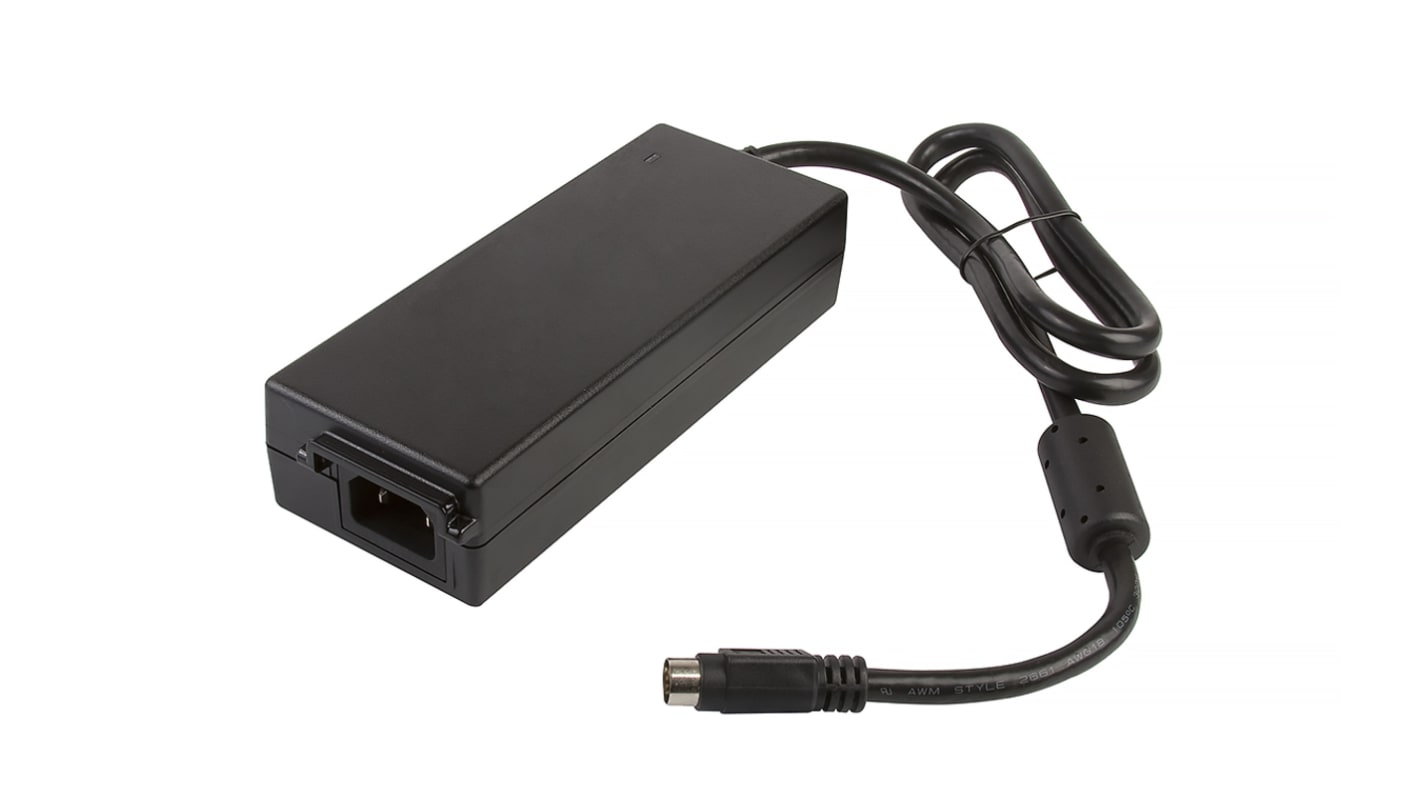

XP Power 100 W AC/DC Adapter 12V dc Output, 8.33 A
- RS Stock No.:
- 121-7047
- Distrelec Article No.:
- 301-83-301
- Mfr. Part No.:
- AHM100PS12
- Brand:
- XP Power
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£75.36
(exc. VAT)
£90.43
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 51 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £75.36 |
| 5 - 9 | £73.10 |
| 10 - 24 | £70.83 |
| 25 - 49 | £68.57 |
| 50 + | £66.31 |
*price indicative
- RS Stock No.:
- 121-7047
- Distrelec Article No.:
- 301-83-301
- Mfr. Part No.:
- AHM100PS12
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Product Type | AC/DC Adapter | |
| Output Voltage | 12V dc | |
| Power | 100W | |
| Cable Length | 900mm | |
| Number of Outputs | 1 | |
| Adapter Current | 8.33A | |
| Input Connector Type | IEC 320-C14 | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | EN 61000-3-2, EN 61000-4-11, CSA 22.2 No. 60601-1, EISA 2007, EN 61000-3-3, EN 55011/22, EN 61000-4-6, EN 61000-4-5, EN 61000-4-4, EN 60601-1, EN 60601-1-2, EN 60950, UL 60950, PSE, MIL-HDBK-217F, EN 61000-4-8, EN 61000-4-2, EN 61000-4-3, CEC2008, ANSI AAMI ES60601-1 | |
| Length | 165mm | |
| Width | 64mm | |
| Depth | 37mm | |
| Efficiency | 92% | |
| Maximum Input Voltage | 264V ac | |
| Series | AHM | |
| Load Regulation | ±3 % | |
| Energy Efficiency Level | V | |
| Minimum Input Voltage | 90V ac | |
| Select all | ||
|---|---|---|
Brand XP Power | ||
Product Type AC/DC Adapter | ||
Output Voltage 12V dc | ||
Power 100W | ||
Cable Length 900mm | ||
Number of Outputs 1 | ||
Adapter Current 8.33A | ||
Input Connector Type IEC 320-C14 | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals EN 61000-3-2, EN 61000-4-11, CSA 22.2 No. 60601-1, EISA 2007, EN 61000-3-3, EN 55011/22, EN 61000-4-6, EN 61000-4-5, EN 61000-4-4, EN 60601-1, EN 60601-1-2, EN 60950, UL 60950, PSE, MIL-HDBK-217F, EN 61000-4-8, EN 61000-4-2, EN 61000-4-3, CEC2008, ANSI AAMI ES60601-1 | ||
Length 165mm | ||
Width 64mm | ||
Depth 37mm | ||
Efficiency 92% | ||
Maximum Input Voltage 264V ac | ||
Series AHM | ||
Load Regulation ±3 % | ||
Energy Efficiency Level V | ||
Minimum Input Voltage 90V ac | ||
XP Power - AHM Series of Plug-in Power Supplies
The AHM series from XP Power offer a wide range of 85 W to 250 W plug-in power supplies, which all feature level V energy efficiency. These reliable power supplies are all CEC2008 and EISA2007 compliant as well as being IT and medically approved. Optional Class I and Class II versions are available except for with AHM250.
85 W to 250 W plug-in power supplies
CEC2008 & EISA2007 compliant
Energy efficiency level V
IT and medically approved
3-year warranty
<0.5 W no load input power
IP22 environmental rating
Switch Mode - XP Power
