XP Power 220 W AC/DC Adapter EU, UK, US 24 V dc Output, 9.16 A
- RS Stock No.:
- 121-7046
- Mfr. Part No.:
- AHE220PS24
- Brand:
- XP Power
Bulk discount available
Subtotal (1 unit)*
£88.72
(exc. VAT)
£106.46
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 14 unit(s) shipping from 13 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £88.72 |
| 5 - 9 | £86.43 |
| 10 - 24 | £84.23 |
| 25 - 49 | £82.16 |
| 50 + | £80.18 |
*price indicative
- RS Stock No.:
- 121-7046
- Mfr. Part No.:
- AHE220PS24
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Product Type | AC/DC Adapter | |
| Plug Type | EU, UK, US | |
| Output Voltage | 24 V dc | |
| Power | 220W | |
| Cable Length | 197mm | |
| Number of Outputs | 1 | |
| Input Connector Type | IEC 320-C14 | |
| Adapter Current | 9.16A | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | CB, CE, EN 60950-1, UL 60950-1 | |
| Depth | 44mm | |
| Length | 197mm | |
| Width | 44 mm | |
| Maximum Input Voltage | 264V ac | |
| Efficiency | 91% | |
| Load Regulation | ±5 % | |
| Series | AHE220 | |
| Energy Efficiency Level | VI | |
| Minimum Input Voltage | 90V ac | |
| Select all | ||
|---|---|---|
Brand XP Power | ||
Product Type AC/DC Adapter | ||
Plug Type EU, UK, US | ||
Output Voltage 24 V dc | ||
Power 220W | ||
Cable Length 197mm | ||
Number of Outputs 1 | ||
Input Connector Type IEC 320-C14 | ||
Adapter Current 9.16A | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals CB, CE, EN 60950-1, UL 60950-1 | ||
Depth 44mm | ||
Length 197mm | ||
Width 44 mm | ||
Maximum Input Voltage 264V ac | ||
Efficiency 91% | ||
Load Regulation ±5 % | ||
Series AHE220 | ||
Energy Efficiency Level VI | ||
Minimum Input Voltage 90V ac | ||
- COO (Country of Origin):
- CN

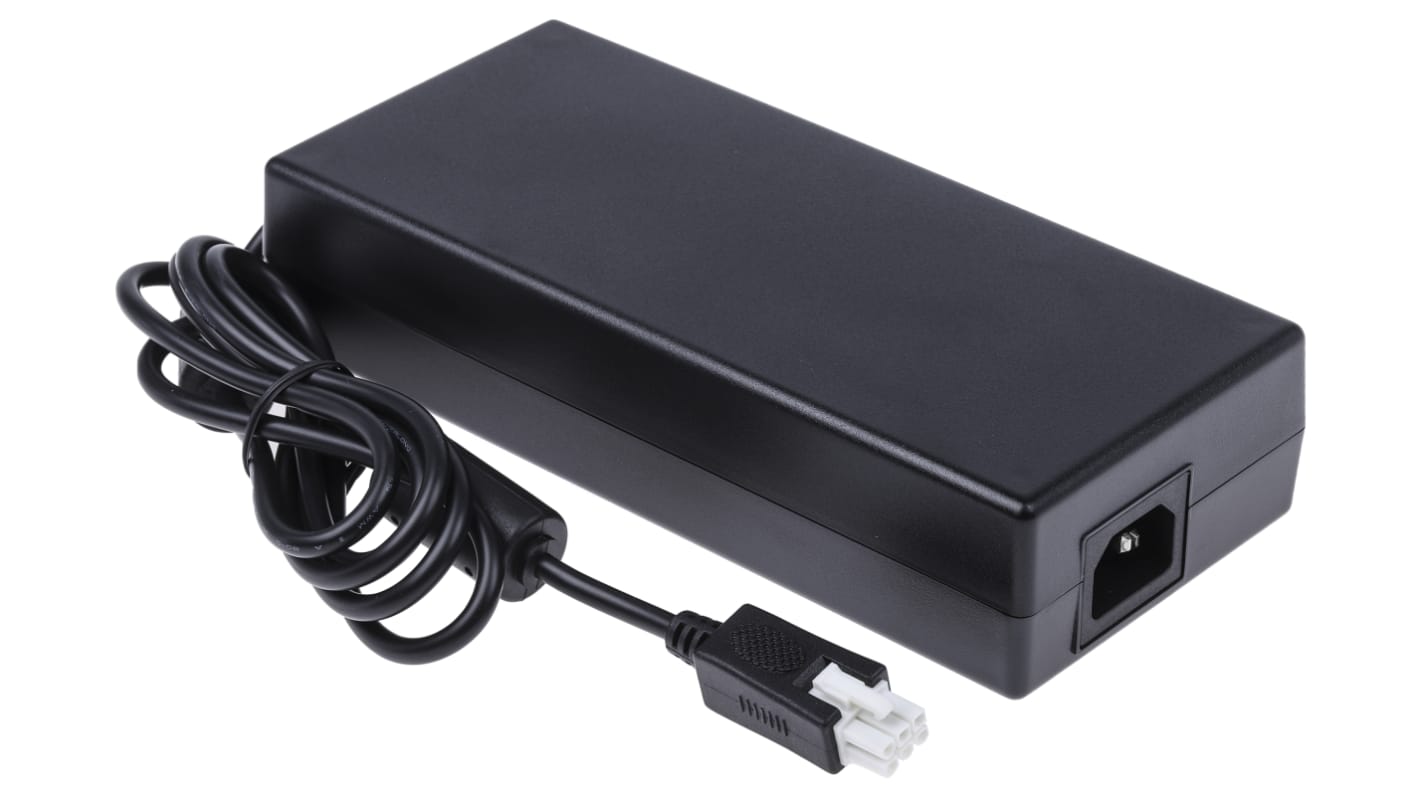

XP Power Desktop Power Supply
The XP Power AHE series plug-in Power unit desktop Power supply has an output voltage rating of 24VDC. It provides 220W of continuous output power in a high-quality, compact enclosure suitable for many general Power applications. It has an input frequency of 47Hz to 63Hz. While the input voltage rating ranging from 90VAC to 264VAC, its maximum output current is 9.16A. It is ideal for many small electrical devices.
Features and Benefits
Energy efficiency level VI
Standby Power is greater than 0.21W
High Power density
Low earth leakage current
Operating temperature ranges from 0°C to 60 °C
Load regulation range is ±5%
Efficiency is 94%
Certifications
ITE safety approvals
IEC68-2-27
IEC68-2-6
