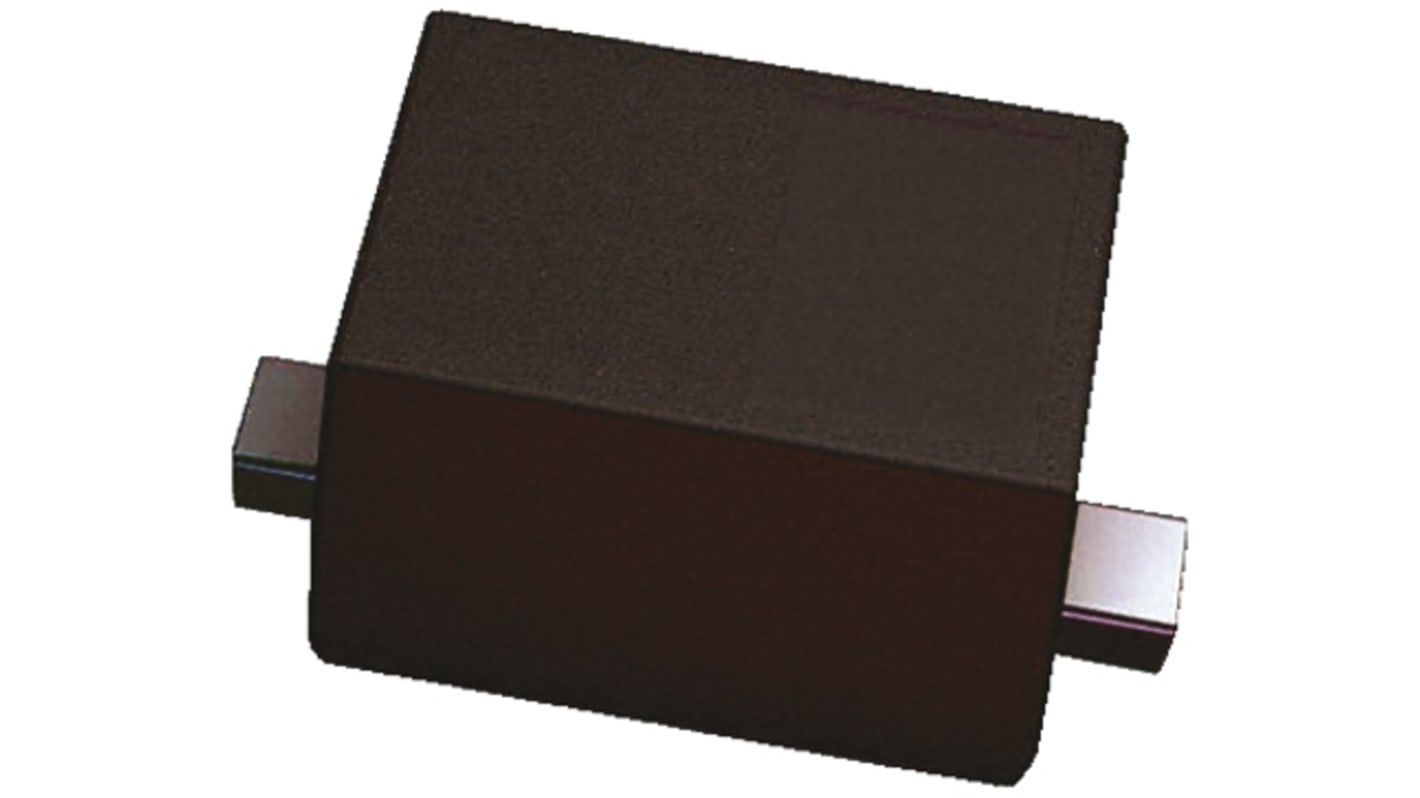

Nexperia, 12V Zener Diode 2% 300 mW SMT 2-Pin SOD-523
- RS Stock No.:
- 816-7928
- Mfr. Part No.:
- BZX585-B12
- Brand:
- Nexperia
9300 In stock - FREE next working day delivery available
Price Each (In a Pack of 100)
£0.023
(exc. VAT)
£0.028
(inc. VAT)
Units | Per unit | Per Pack* |
|---|---|---|
| 100 + | £0.023 | £2.30 |
*price indicative
- RS Stock No.:
- 816-7928
- Mfr. Part No.:
- BZX585-B12
- Brand:
- Nexperia
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Zener Diodes 300mW, BZX585 Series, Nexperia
Zener Voltage Tolerance of 2% (BZX585-B) and 5% (BZX585-C)
Surface Mount case: SOD-523
Surface Mount case: SOD-523
Zener Diodes, Nexperia
Specifications
Attribute | Value |
|---|---|
| Nominal Zener Voltage | 12V |
| Diode Configuration | Single |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 300 mW |
| Package Type | SOD-523 |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | 2% |
| Pin Count | 2 |
| Test Current | 5mA |
| Maximum Zener Impedance | 10Ω |
| Maximum Reverse Leakage Current | 100nA |
| Dimensions | 1.25 x 0.85 x 0.65mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -65 °C |
| Typical Voltage Temperature Coefficient | 7.9mV/K |
