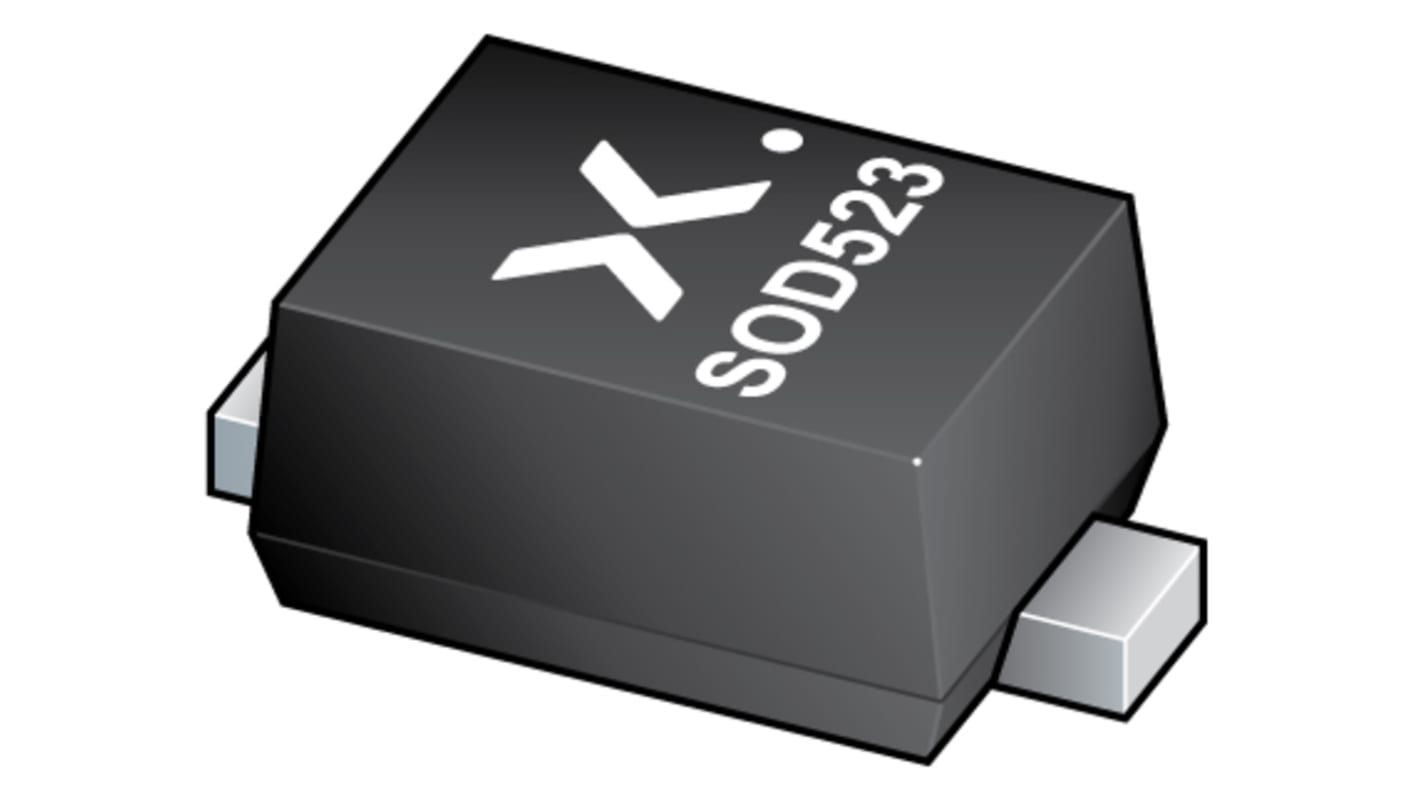

Nexperia, 9.1V Zener Diode ±2% 300 mW SMT 2-Pin SOD-523

View all Zener Diodes

Subtotal (1 pack of 250 units)*

£12.25

(exc. VAT)

£14.75

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 16,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
250 +£0.049£12.25

*price indicative

Packaging Options:
RS Stock No.:
153-2951
Mfr. Part No.:
BZX585-B9V1,115
Brand:
Nexperia
Find similar products by selecting one or more attributes.
Select all

Brand

Nexperia

Nominal Zener Voltage

9.1V

Diode Configuration

Single

Number of Elements per Chip

1

Mounting Type

Surface Mount

Maximum Power Dissipation

300 mW

Package Type

SOD-523

Zener Type

Voltage Regulator

Zener Voltage Tolerance

±2%

Pin Count

2

Test Current

5mA

Maximum Reverse Leakage Current

0.5µA

Dimensions

1.25 x 0.85 x .065mm

Minimum Operating Temperature

-55 °C

Forward Current

200mA

Automotive Standard

AEC-Q101

Forward Voltage

1.1V

Maximum Operating Temperature

+150 °C

Voltage regulator diodes, Low-power voltage regulator diodes encapsulated in an ultra small SOD523 plastic SMD package. The diodes are available in the normalized E24 +- 2 pct (BZX585-B) and +- 5 pct (BZX585-C) tolerance range. The series consists of 37 types with nominal working voltages from 2.4 V to 75 V.

Total power dissipation: max. 300 mW
Two tolerance series: +- 2 pct and +- 5 pct
Working voltage range: nominal 2.4 V to 75 V (E24 range)
Non-repetitive peak reverse power dissipation: max. 40 W.
AEC-Q101 qualified
General regulation functions.
