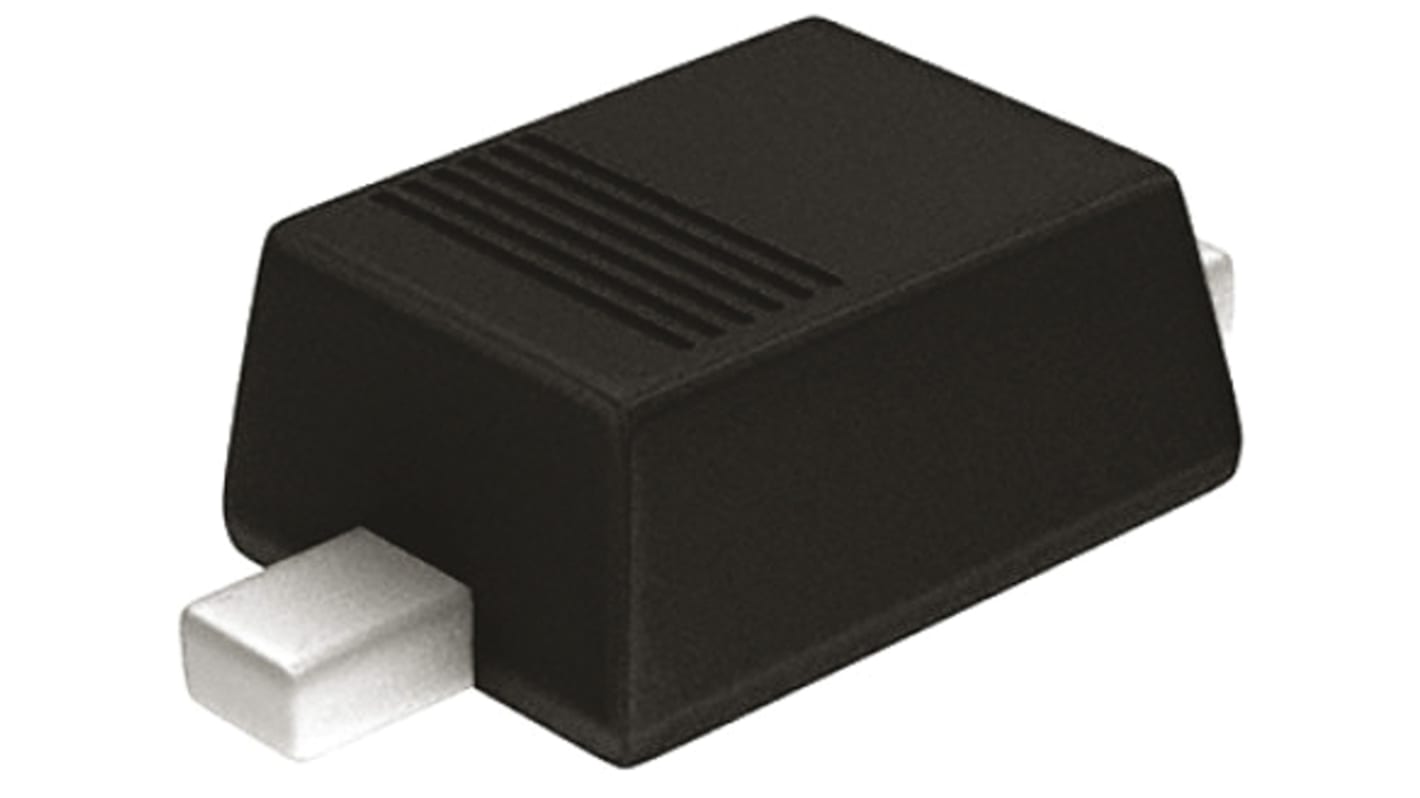

Nexperia, 8.2V Zener Diode 5% 550 mW SMT 2-Pin SOD-323F
- RS Stock No.:
- 816-0475
- Mfr. Part No.:
- BZX84J-C8V2,115
- Brand:
- Nexperia
9900 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 150)
£0.111
(exc. VAT)
£0.133
(inc. VAT)
| Units | Per unit | Per Pack* |
| 150 - 150 | £0.111 | £16.65 |
| 300 - 600 | £0.055 | £8.25 |
| 750 - 1350 | £0.05 | £7.50 |
| 1500 - 2850 | £0.048 | £7.20 |
| 3000 + | £0.047 | £7.05 |
| *price indicative | ||
- RS Stock No.:
- 816-0475
- Mfr. Part No.:
- BZX84J-C8V2,115
- Brand:
- Nexperia
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Zener Diodes 550mW, BZX84J Series, Nexperia
The BZX84J series of Zener diodes, from NXP, are general purpose devices. These single Zener diodes are in a SOD323F (SC-90) package. This plastic package is very small and flat lead surface mount (SMD). The BZX84J series are ideal for general regulation functions.
- Non-repetitive peak reverse power dissipation: 40mW
- Total power dissipation: 550mW
- Small plastic package for suface-mount designs
- Wide working voltage range: nominal 2.4V to 75V (E24 range)
- Two tolerance series: 2% and 5%
- Low differential resistance
- Total power dissipation: 550mW
- Small plastic package for suface-mount designs
- Wide working voltage range: nominal 2.4V to 75V (E24 range)
- Two tolerance series: 2% and 5%
- Low differential resistance
Zener Diodes, Nexperia
Specifications
Attribute | Value |
|---|---|
| Nominal Zener Voltage | 8.2V |
| Diode Configuration | Single |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation | 550 mW |
| Package Type | SOD-323F |
| Zener Type | General Purpose |
| Zener Voltage Tolerance | 5% |
| Pin Count | 2 |
| Test Current | 5mA |
| Maximum Reverse Leakage Current | 700nA |
| Dimensions | 1.8 x 1.35 x 0.8mm |
| Typical Voltage Temperature Coefficient | 3.2 → 6.2mV/K |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
- RS Stock No.:
- 816-0475
- Mfr. Part No.:
- BZX84J-C8V2,115
- Brand:
- Nexperia
