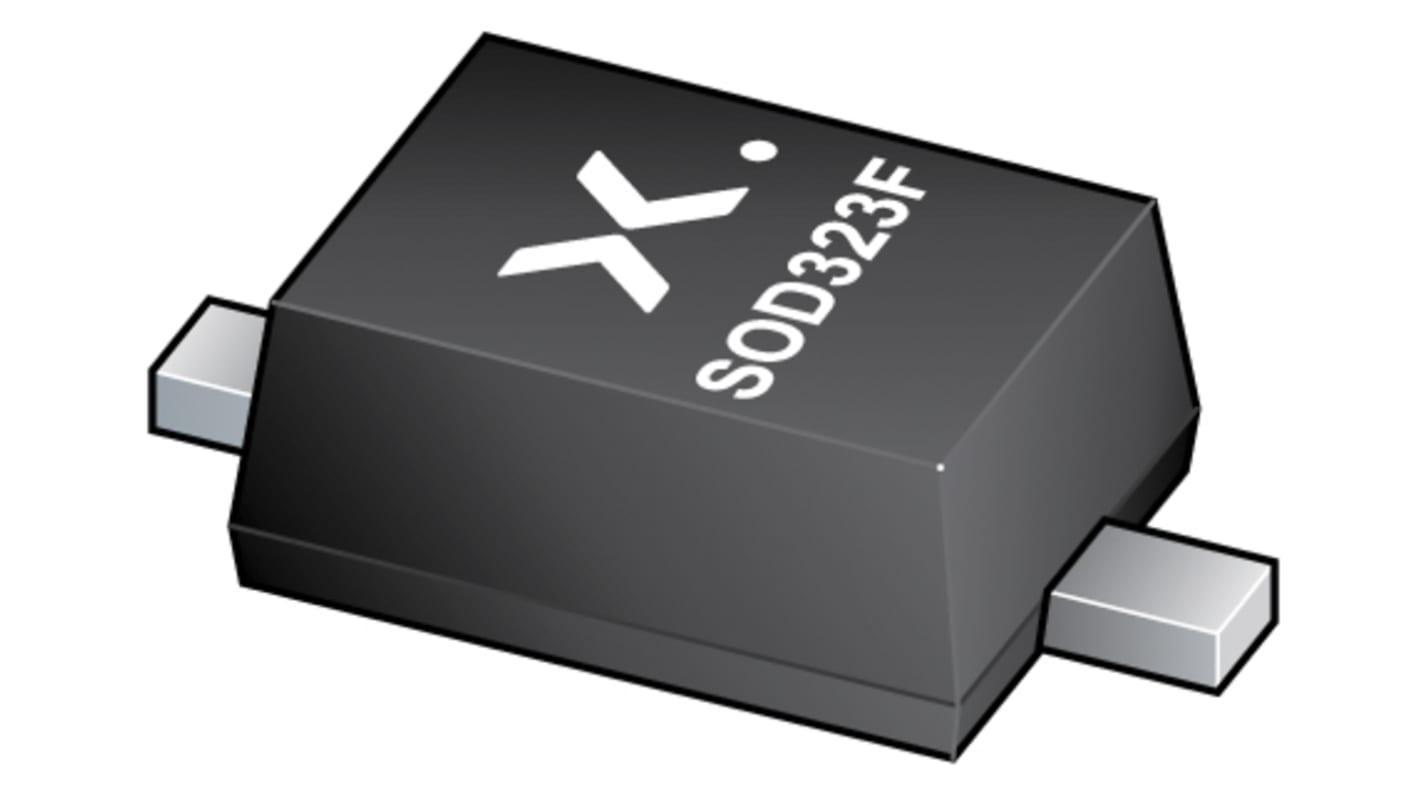

Nexperia, 12V Zener Diode ±5% 550 mW SMT 2-Pin SC-90, SOD-323F
- RS Stock No.:
- 151-2791
- Mfr. Part No.:
- BZX84J-C12,115
- Brand:
- Nexperia
Bulk discount available
Subtotal (1 pack of 250 units)*
£6.00
(exc. VAT)
£7.25
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 44,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 250 - 250 | £0.024 | £6.00 |
| 500 - 1000 | £0.023 | £5.75 |
| 1250 - 2250 | £0.022 | £5.50 |
| 2500 + | £0.021 | £5.25 |
*price indicative
- RS Stock No.:
- 151-2791
- Mfr. Part No.:
- BZX84J-C12,115
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Diode Configuration | Single | |
| Nominal Zener Voltage | 12V | |
| Number of Elements per Chip | 1 | |
| Mounting Type | Surface Mount | |
| Maximum Power Dissipation | 550 mW | |
| Package Type | SC-90, SOD-323F | |
| Zener Type | General Purpose | |
| Zener Voltage Tolerance | ±5% | |
| Pin Count | 2 | |
| Test Current | 5mA | |
| Dimensions | 1.8 x 1.35 x 0.8mm | |
| Minimum Operating Temperature | -55 °C | |
| Forward Voltage | 1.1V | |
| Automotive Standard | AEC-Q101 | |
| Maximum Operating Temperature | +150 °C | |
| Forward Current | 250mA | |
| Typical Voltage Temperature Coefficient | 10mV/K | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Diode Configuration Single | ||
Nominal Zener Voltage 12V | ||
Number of Elements per Chip 1 | ||
Mounting Type Surface Mount | ||
Maximum Power Dissipation 550 mW | ||
Package Type SC-90, SOD-323F | ||
Zener Type General Purpose | ||
Zener Voltage Tolerance ±5% | ||
Pin Count 2 | ||
Test Current 5mA | ||
Dimensions 1.8 x 1.35 x 0.8mm | ||
Minimum Operating Temperature -55 °C | ||
Forward Voltage 1.1V | ||
Automotive Standard AEC-Q101 | ||
Maximum Operating Temperature +150 °C | ||
Forward Current 250mA | ||
Typical Voltage Temperature Coefficient 10mV/K | ||
- COO (Country of Origin):
- CN
Single Zener diodes, General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface-Mounted Device (SMD) plastic package.
Non-repetitive peak reverse power dissipation: ≤ 40 W
Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
Total power dissipation: ≤ 550 mW
Two tolerance series: ±2 % and ±5 %
AEC-Q101 qualified
Low differential resistance
Small plastic package suitable for surface-mounted design
Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
Total power dissipation: ≤ 550 mW
Two tolerance series: ±2 % and ±5 %
AEC-Q101 qualified
Low differential resistance
Small plastic package suitable for surface-mounted design
