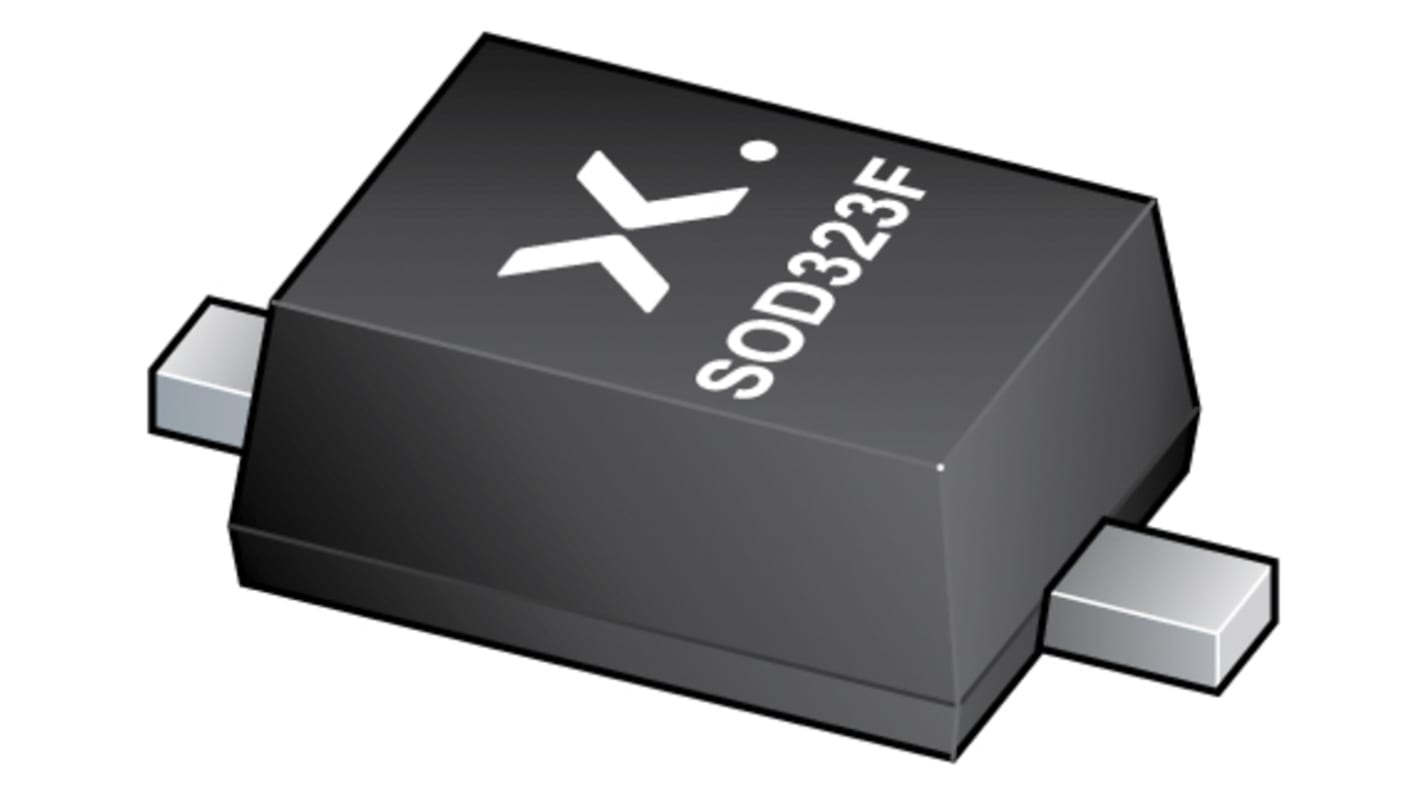

Nexperia, 12V Zener Diode ±5% 550 mW SMT 2-Pin SC-90, SOD-323F
- RS Stock No.:
- 151-2634
- Mfr. Part No.:
- BZX84J-C12,115
- Brand:
- Nexperia
12000 In stock - FREE next working day delivery available
Added
Price Each (On a Reel of 3000)
£0.044
(exc. VAT)
£0.053
(inc. VAT)
| Units | Per unit | Per Reel* |
| 3000 - 3000 | £0.044 | £132.00 |
| 6000 - 12000 | £0.042 | £126.00 |
| 15000 - 27000 | £0.04 | £120.00 |
| 30000 - 72000 | £0.038 | £114.00 |
| 75000 + | £0.037 | £111.00 |
| *price indicative | ||
- RS Stock No.:
- 151-2634
- Mfr. Part No.:
- BZX84J-C12,115
- Brand:
- Nexperia
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Single Zener diodes, General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface-Mounted Device (SMD) plastic package.
Non-repetitive peak reverse power dissipation: ≤ 40 W
Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
Total power dissipation: ≤ 550 mW
Two tolerance series: ±2 % and ±5 %
AEC-Q101 qualified
Low differential resistance
Small plastic package suitable for surface-mounted design
Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
Total power dissipation: ≤ 550 mW
Two tolerance series: ±2 % and ±5 %
AEC-Q101 qualified
Low differential resistance
Small plastic package suitable for surface-mounted design
Specifications
Attribute | Value |
|---|---|
| Diode Configuration | Single |
| Nominal Zener Voltage | 12V |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation | 550 mW |
| Package Type | SC-90, SOD-323F |
| Zener Type | General Purpose |
| Zener Voltage Tolerance | ±5% |
| Pin Count | 2 |
| Test Current | 5mA |
| Dimensions | 1.8 x 1.35 x 0.8mm |
| Forward Voltage | 1.1V |
| Minimum Operating Temperature | -55 °C |
| Automotive Standard | AEC-Q101 |
| Forward Current | 250mA |
| Typical Voltage Temperature Coefficient | 10mV/K |
| Maximum Operating Temperature | +150 °C |
